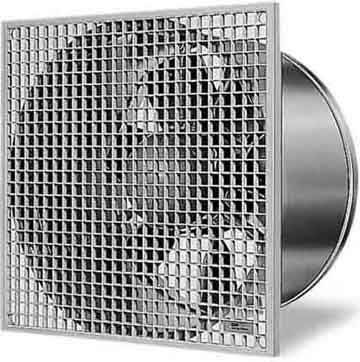

Image similar
Helios Ventilatoren HSW 315/4 TK Wall fan (Ø) 315 mm Wall mounting option
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed: 1390 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 315 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 2080 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
315 mm
- Rotational speed
1390 U/min
- Fan features
Wall mounting option
- Dim
(Ø) 315 mm
- Weight
8 kg
n.rel.
- Reversible rotation direction
Yes
- Air discharge
2080 m³/h
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294298 Helios Ventilatoren HSW 315/4 TK Wall fan (Ø) 315 mm Wall mounting option
Description
Axial high-performance fan tube sleeve cylindrical, smooth ends, directly driven. Tube sleeve made of galvanized sheet steel, with two reinforcing beads running on the circumference and protective grillee made of plastic. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
This text is machine translated.
