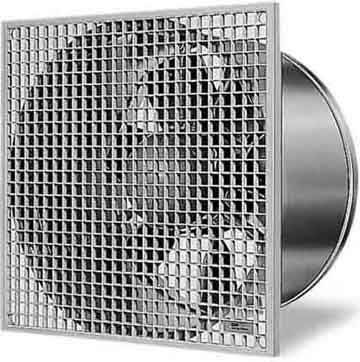

Image similar
Helios Ventilatoren HSW 315/6 TK Wall fan (Ø) 315 mm Overheating protection
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed 920 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 315 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 1330 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
315 mm
- Air flow rate
1330 m³/h
- Rotational speed
920 U/min
- Fan features
Overheating protection
- Dim
(Ø) 315 mm
- Weight
8 kg
n.rel.
- Rotor blades
7
- Reversible rotation direction
Yes
- Air discharge
1330 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295272 Helios Ventilatoren HSW 315/6 TK Wall fan (Ø) 315 mm Overheating protection
Description
Axial high-performance fan tube sleeve cylindrical, smooth ends, directly driven. Tube sleeve made of galvanized sheet steel, with two reinforcing beads running on the circumference and protective grillee made of plastic. Impeller with 7 thermoplastic blades. High efficiency, low operating noise. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
