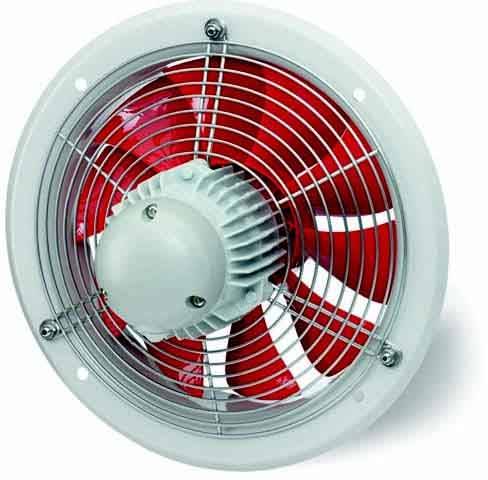

Image similar
Helios Ventilatoren HWD 450/4 Wall fan (Ø) 450 mm Wall mounting option
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed: 1390 rpm
- Conveying medium temperature: -30..50 °C.
- Nominal diameter 450 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow 5810 m³/h
- Product type
Wall fan
- Operating voltage
400 V
- (Ø)
450 mm
- Air flow rate
5810 m³/h
- Rotational speed
1390 U/min
- Fan features
Wall mounting option
- Dim
(Ø) 450 mm
- Weight
15.5 kg
n.rel.
- Rotational speed (max.)
1390 U/min
- Factory colour
White
- Air discharge
5810 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295462 Helios Ventilatoren HWD 450/4 Wall fan (Ø) 450 mm Wall mounting option
Description
Axial high-performance fan with wall mounting ring, inlet nozzle, directly driven. Wall ring made of galvanized sheet steel, double painted, color papyrus white, nozzle with protective grillee on the suction side. Connection box on the motor. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit rotor motor through voltage reduction Speed controllable, thermal contacts, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
