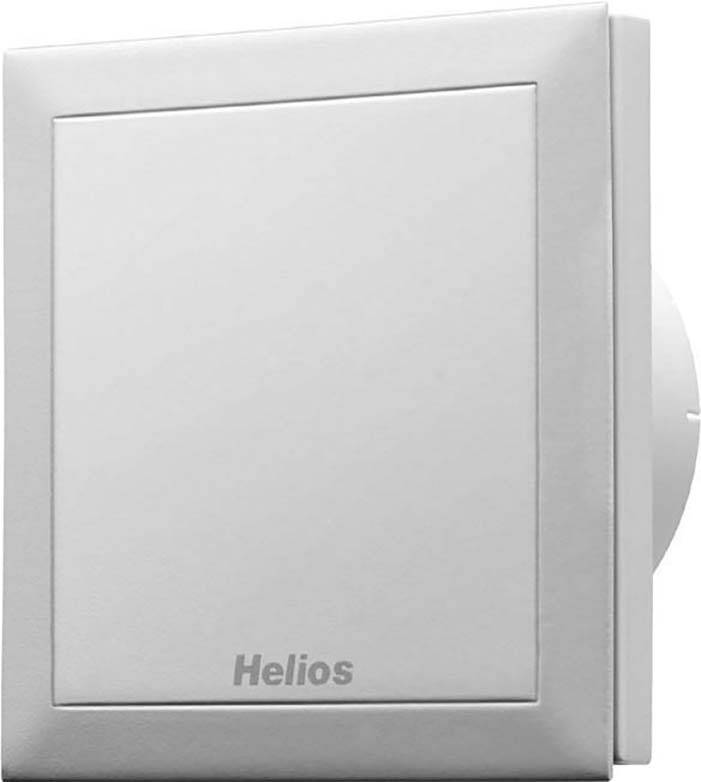

Helios Ventilatoren M1/150 N/C Small space fan 230 V 260 m³/h 150 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial
- Mounting type: Wall/pipe mounting
- Nominal diameter 150 mm
- Mains frequency 50 Hz
- Direction: Bleeding
- Composition: With interval control
- Product type
Small space fan
- Nominal voltage
230 V
- Air flow rate
260 m³/h
- Suitable for pipe Ø
150 mm
- Ventilation features
Timer
- Noise emission (max.)
35 dBa
IP45
- Factory colour
White
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297422 Helios Ventilatoren M1/150 N/C Small space fan 230 V 260 m³/h 150 mm
Conformity certificate
Conformity certificate 2297422 Helios Ventilatoren M1/150 N/C Small space fan 230 V 260 m³/h 150 mm
Description
Small fan MiniVent M1/150, with 2 power stages ( 260/220 m³/h) and energy-saving EC-motor, coding after-run and interval operation. Start-up delay approx. 0, 45, 90 and 120 sec., delay time can be set to approx. 6, 10, 15, 21 min., interval mode can be set to approx. 0, 8, 12 and 24 h. The time functions can be set optionally on the high or low power stage. It is also possible to activate the time functions on both power levels. With its excellent design, MiniVent M 1 fits harmoniously everywhere - even in sophisticated rooms. The closed, shapely facade completely avoids the insight into the dirty fan opening. Fitted with a tightly closing backflow flap as standard. Thanks to the new ultrasilence technology, the noise level is 35 dB(A) at 220 m³/h volume flow. Universally applicable for the ventilation of bath, WC and other rooms.
