Image similar
Helios Ventilatoren ZV Time lag switch
EAN:
Part number:
Item no:
Technical specifications
- Design: Electronic
- Rated current 2 A
- Surface: Untreated
- Material quality: Thermoplastic
- Time setting: 4..15 min.
- Product type
Time lag switch
- Operating voltage
230 V
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297419 Helios Ventilatoren ZV Time lag switch
Description

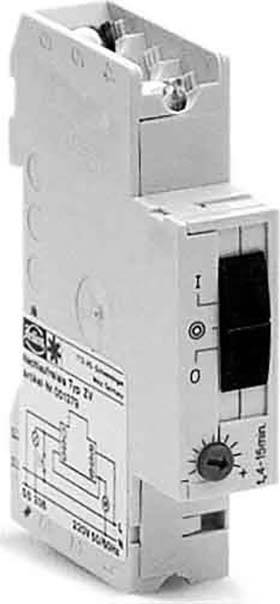

For control cabinet mounting on 35 mm standard rail. Follow-up time continuously adjustable between 4-15 min., with operating switch with positions off, continuous operation and time after-run. Parallel connection of light and fan possible via on/off switch or button. Protection class IP 30, 230 V, 50-60 Hz, I max. 2.1 A inductive.
