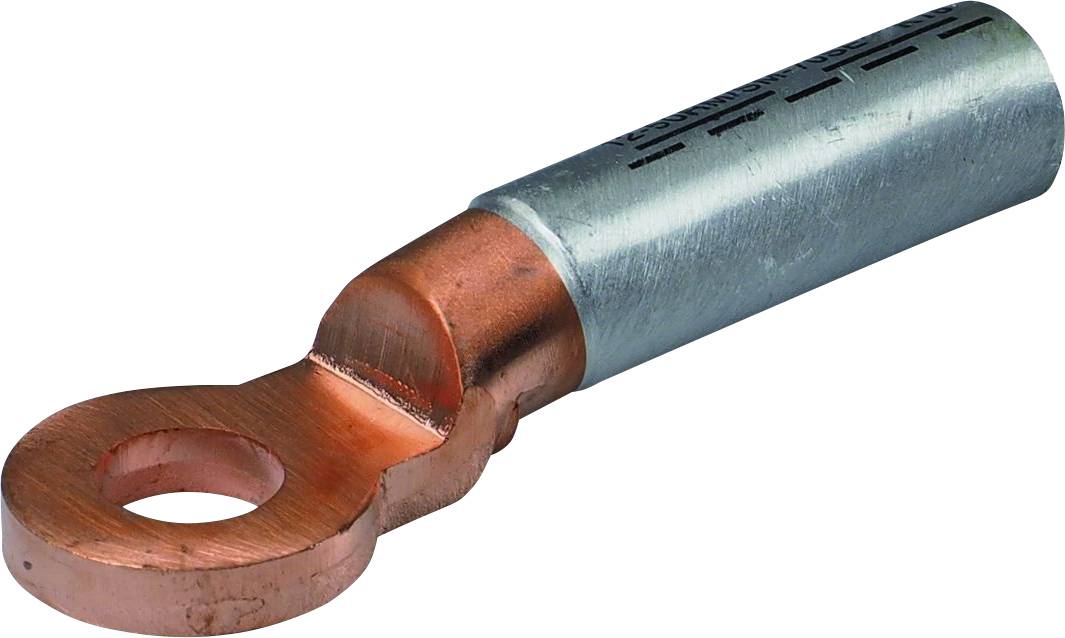

HELU 906185-5 Crimp cable lug Cross section (max.)=300.00 mm² Hole Ø=12.00 mm Not insulated Silver 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
Hole Ø
12.00 mm
Insulation type
Not insulated
Content
1 pc(s)
max. cross section
300.00 mm²
Datasheet (PDF)
Highlights & Details
PRESS CABLE LUG HELI-S-PK-AL/CU 240/300-12
- 240.00 - 300.00 mm²
Technical specifications
- Flange width 30.00 mm
- Product type
Crimp cable lug
- Hole Ø
12.00 mm
- Insulation type
Not insulated
- Factory colour
Silver
- Content
1 pc(s)
- Contact material
Copper
- Manufacturer part #
906185-5
- Type
906185-5
- max. cross section
300.00 mm²
- Min. cross section
240.00 mm²
- Cross-section range
240.00 - 300.00 mm²
Documents & Downloads
Datasheet
Datasheet 3340037 HELU 906185-5 Crimp cable lug Cross section (max.)=300.00 mm² Hole Ø=12.00 mm Not insulated Silver 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340037 HELU 906185-5 Crimp cable lug Cross section (max.)=300.00 mm² Hole Ø=12.00 mm Not insulated Silver 1 pc(s)
