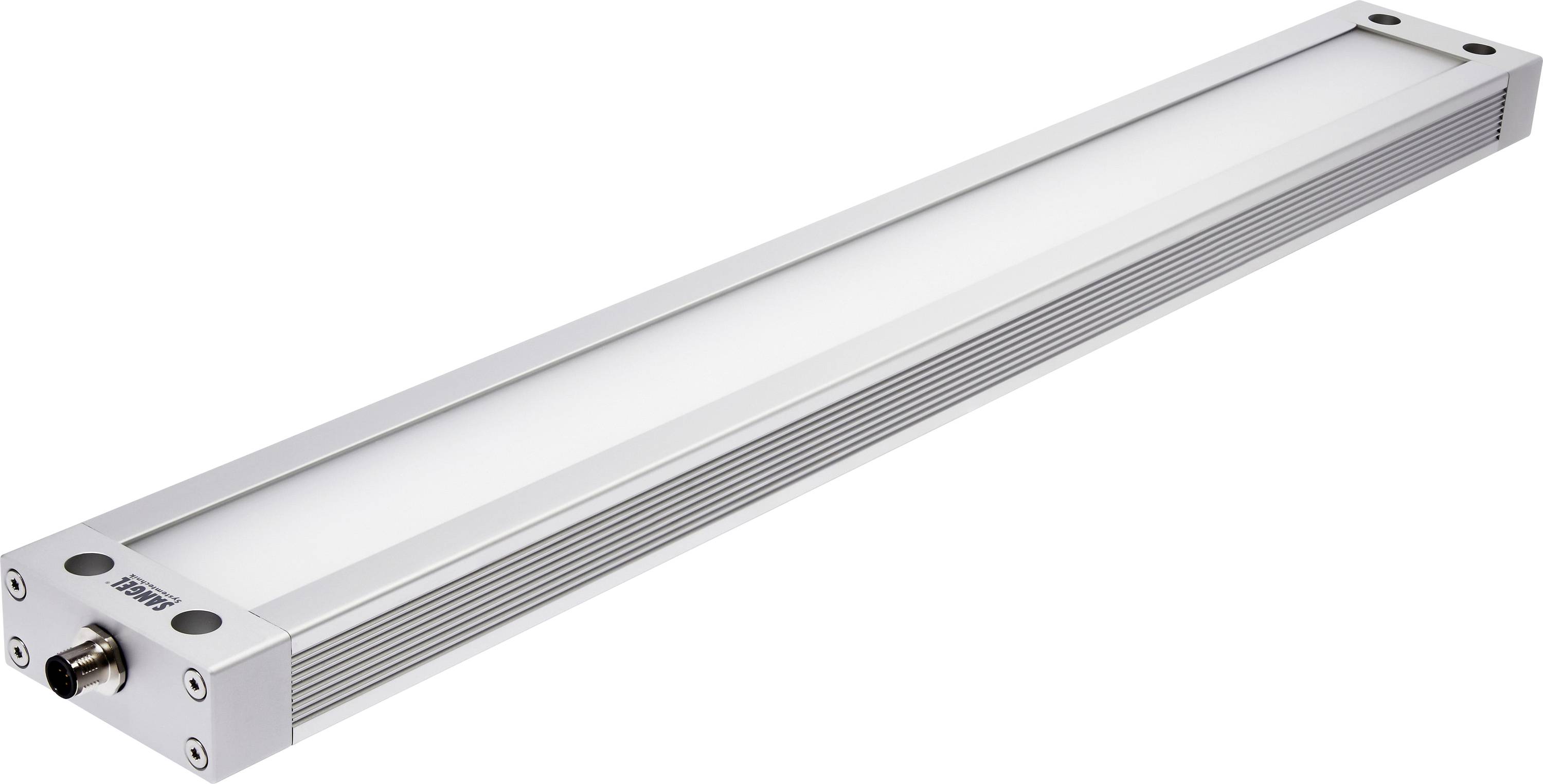

HELU Industrial LED indicator light HELULIGHT® POWER-RGBW 560 RGBW 56.4 W 2512 lm 100 ° (L x W x H) 630 x 80 x 32 mm 1 p
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Power
56.4 W
Luminous flux (Φ)
2512 lm
IP rating
IP40
Energy efficiency rating
n.rel.
Datasheet (PDF)
Technical specifications
- Colour of housing: Anodised natural
- Material cover: PMMA
- Cover: Diffuse
- Variant connection: Flange, built-in connection socket
- Connection number of pins: 5
- Coding: A coded
- Looped through: No.
- Mounting: Rigid
- Illuminated length 580 mm
- Hole spacing
- : 605 mm.
- Product weight without packaging (g): 1584
- Color fidelity CRI: 80
- Max. Illumination level 897
- Light current white 2512
- Luminous flux, red: 370
- Green luminous flux: 899
- Luminous flux Blue: 242
- Output white 23 W
- Power red 12.4 W
- Power green 10.4 W
- Output blue 10.4 W
- Dimmable: External PWM
- Lamp life 60,000 h
- Surface temperature lamp: Label D.
- Product type
Industrial LED indicator light
- Type
HELULIGHT® POWER-RGBW 560
- LED features
dimmable
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
56.4 W
- Factory colour
RGBW
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
2512 lm
- Radiation angle
100°
- LEDs
560 pc(s)
- Connection
M12 plug
- Material
Aluminium
IP40
- Protection class
III
- Min. temperature
-20 °C
- Max. temperature
50 °C
- Length
630 mm
- Width
80 mm
- Height
32 mm
- Dim
(L x W x H) 630 x 80 x 32 mm
- RoHS-compliant
Yes
n.rel.
Documents & Downloads
Datasheet
Datasheet 3369422 HELU Industrial LED indicator light HELULIGHT® POWER-RGBW 560 RGBW 56.4 W 2512 lm 100 ° (L x W x H) 630 x 80 x 32 mm 1 p
User & Safety Instructions
User & Safety Instructions 3369422 HELU Industrial LED indicator light HELULIGHT® POWER-RGBW 560 RGBW 56.4 W 2512 lm 100 ° (L x W x H) 630 x 80 x 32 mm 1 p
