Hensel 20001164 20001164 Inverter
EAN:
Part number:
Item no:
Technical specifications
- Screw locking
- Rated current 63 A
- Protection class (IP) IP65
- Placing on a track system: Universal
- Number of groups: 6
- Housing material: Plastic
- With transparent cover: Yes

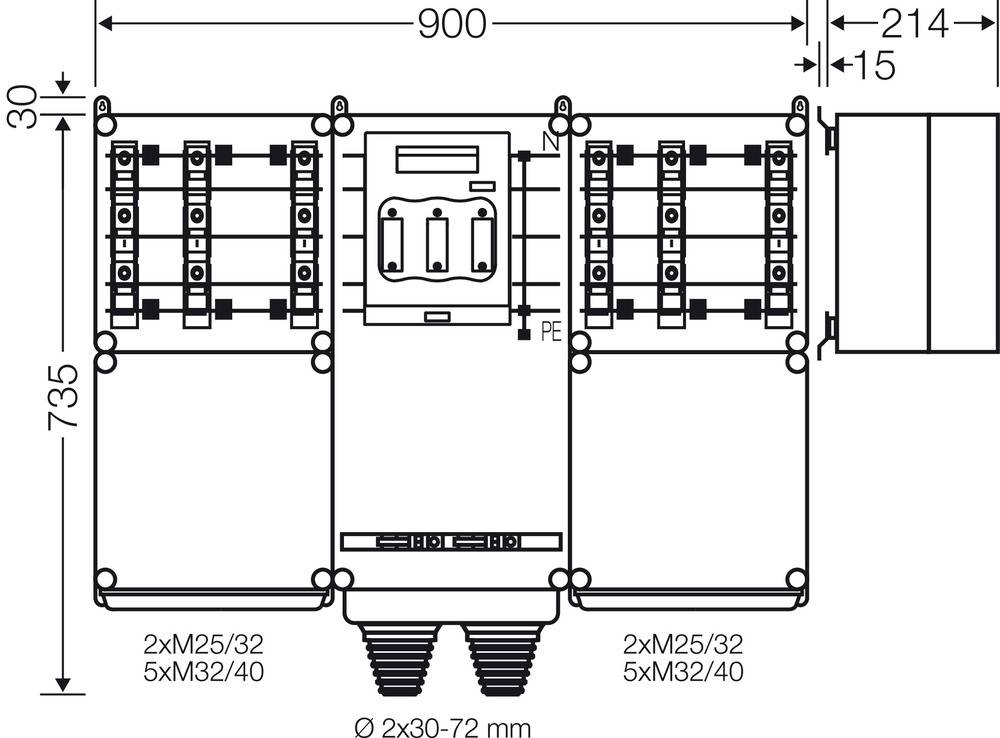

- Height: 735 mm
- Width 900 mm
- Depth: 214 mm
- Mounting option: No.
- Product type
Inverter
- Dim
(W x H x D) 900.00 x 735.00 x 214.00 mm
- Solar energy system features
Inverter
- Nominal current
63.0 A
- Width
900.00 mm
- Height
735.00 mm
- Depth
214.00 mm
IP65
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162995 Hensel 20001164 20001164 Inverter
Description

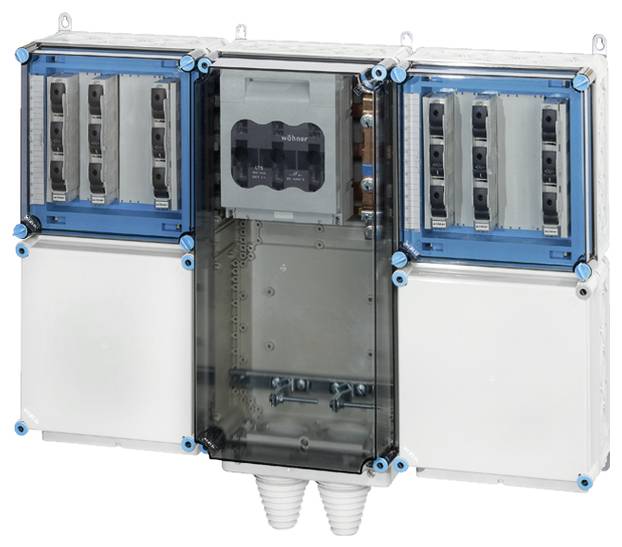

Inverter collectors according to IEC 61439 for PV systems are supplied as a complete set. The housings made of high-quality thermoplastic are insulated, protection class IP 54/IP 65. Inverter collectors can be extended by the function lightning and overvoltage protection or fault current protection (RCD). They are suitable for sheltered outdoor installation and UV-resistant. PV inverter collectors up to 140 kVA with switch disconnectors for fuses 63 A, D 02. Max. 18 x 1~ power inverter or 6 x 3~ power inverter. Wall mounting via external stainless steel straps.
