Hensel 20001268 20001268 Inverter
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Number of rows: 12
- Width in division units: 12
- Type of cover: Cover
- Cover version: Closed
- Transparent lid/door: Yes
- Housing material: Plastic

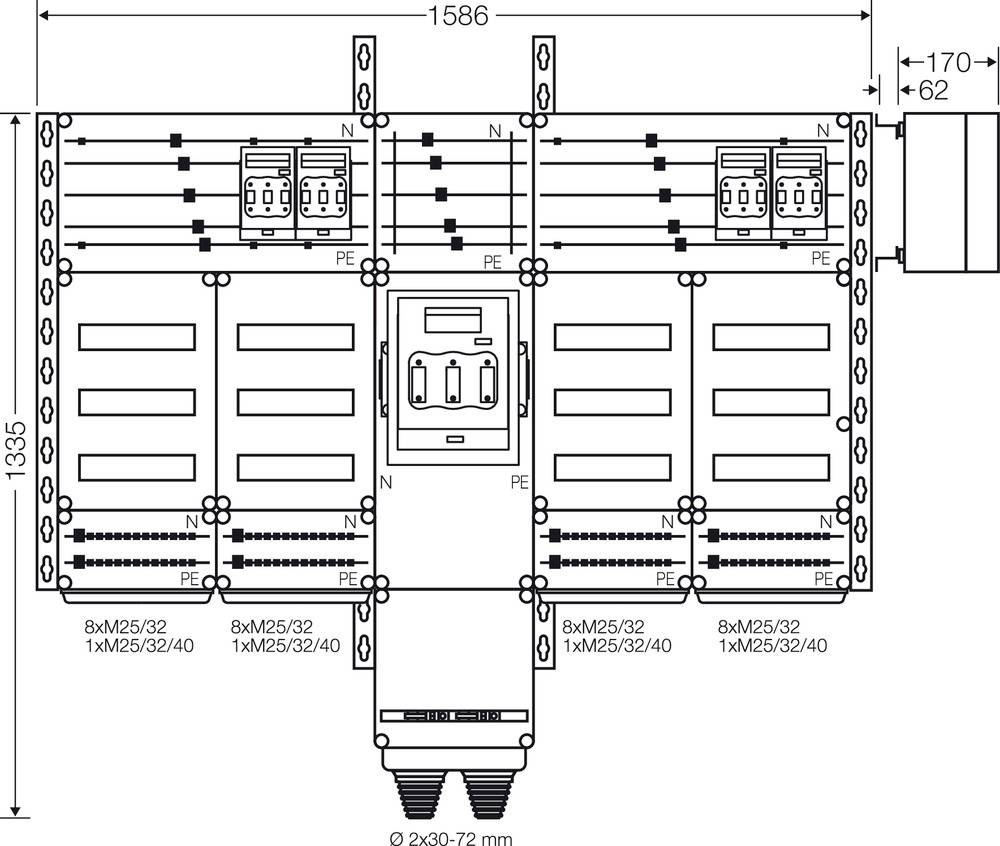

- Height: 1325 mm
- Width 1586 mm
- Depth: 232 mm
- Installation depth: 93 mm
- Internal depth 146 mm
- DIN rail: Yes
- With mounting plate: No.
- Mounting option: Yes
- EMC type: No.
- Colour: grey
- RAL number: 7035
- Protection class (IP) IP65
- With lock: No.
- Product type
Inverter
- Dim
(L x W x H) 1586 x 1586.00 x 1325.00 mm
- Solar energy system features
Inverter
- Factory colour
Grey
- Width
1586.00 mm
- Height
1325.00 mm
- Depth
232.00 mm
- Length
1586 mm
IP65
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163015 Hensel 20001268 20001268 Inverter
Description

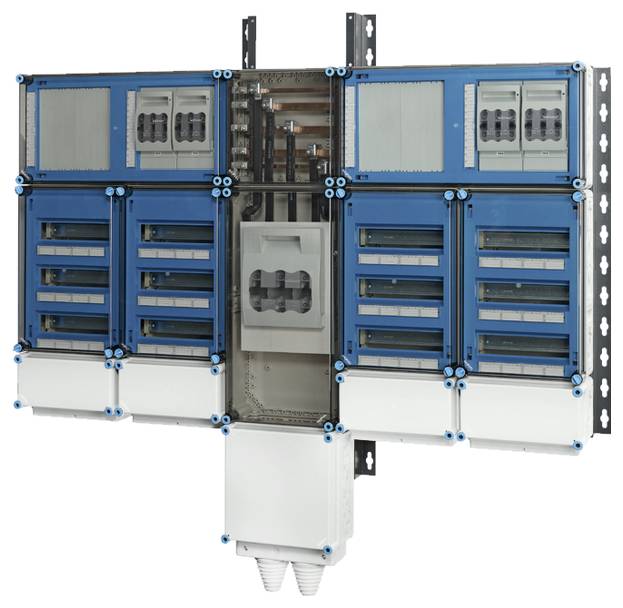

Inverter collectors according to IEC 61439 for PV systems are supplied as a complete set. The housings made of high-quality thermoplastic are insulated, protection class IP 54/IP 65. Inverter collectors can be extended by the function lightning and overvoltage protection or fault current protection (RCD). They are suitable for sheltered outdoor installation and UV-resistant. PV inverter module collectors up to 220 kVA with automatic controller case. Max. 72 x 1~ power inverter or 24 x 3~ power inverter. Wall mounting on mounting rails.
