Hensel 20001272 Fuse holder 63 A
Product type
Fuse holder
Fuse size
D02
Nominal current - rounded value
63 A
Nominal current
63 A

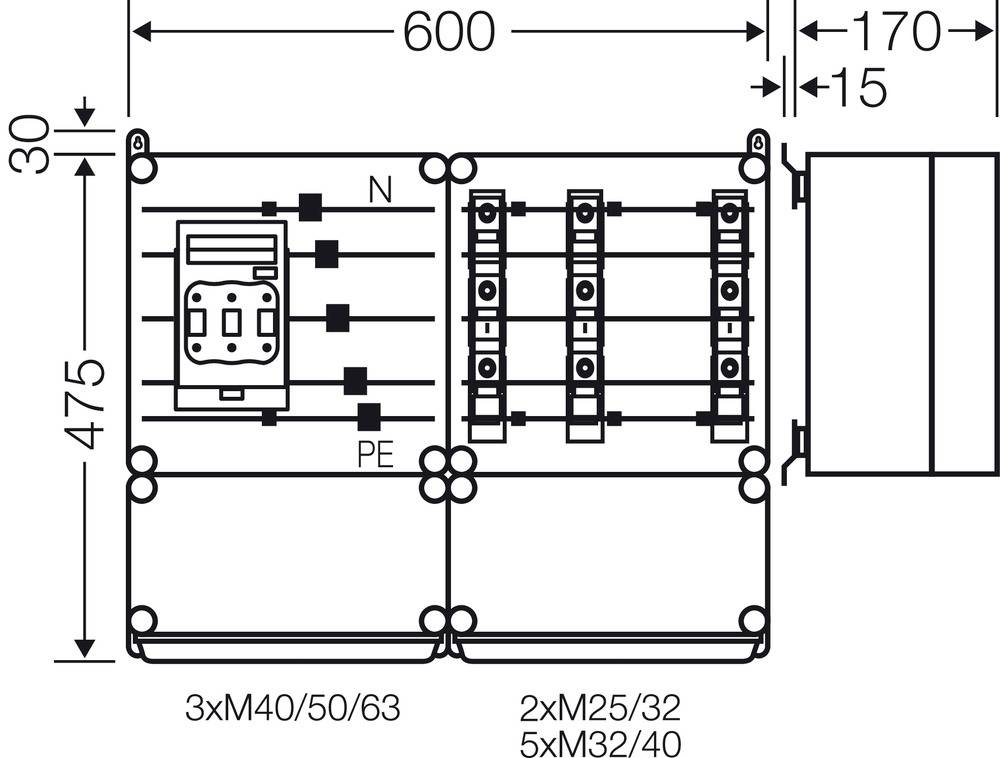

Dim
(W x H x D) 600 x 475 x 170 mm
EAN:
Part number:
Item no:
Technical specifications
- Attachment: no.
- Number of groups: 3
- With transparent cover: Yes
- Placement on rail system: universal
- Protection system: IP65
- Housing material: Plastic
- Product type
Fuse holder
- Fuse size
D02
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Dim
(W x H x D) 600 x 475 x 170 mm
- Content
1 pc(s)
- Width
600 mm
- Height
475 mm
- Depth
170 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292101 Hensel 20001272 Fuse holder 63 A
Description
Inverter-collectors according to IEC 61439 for PV-systems are delivered as complete set. The housings are made of high-quality thermoplastic and are protected against protective insulation, protection class IP 54/IP 65. Inverter-collectors can be extended by the function lightning and overvoltage protection or residual current protection (RCD). They are suitable for protected installation outdoors and UV-resistant. PV inverter collectors up to 70 kVA with switch disconnectors for fuse 63 A, D02. Max. 9 x 1~ Inverter or 3 x 3~ Inverter. Wall mounting via external stainless steel straps.
