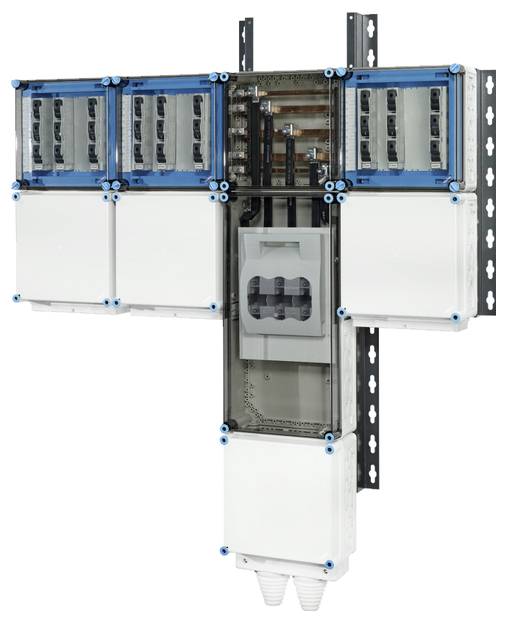

Hensel 20001276 20001276 Inverter
EAN:
Part number:
Item no:
Technical specifications
- Screw locking
- Rated current 63 A
- Protection class (IP) IP65
- Placing on a track system: Universal
- Number of groups: 9
- Housing material: Plastic
- With transparent cover: Yes
- Height: 1335 mm
- Width 1286 mm
- Depth: 232 mm
- Mounting option: No.
- Product type
Inverter
- Dim
(W x H x D) 1286.00 x 1335.00 x 232.00 mm
- Solar energy system features
Inverter
- Nominal current
63.0 A
- Width
1286.00 mm
- Height
1335.00 mm
- Depth
232.00 mm
IP65
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163007 Hensel 20001276 20001276 Inverter
Description
Inverter collectors according to IEC 61439 for PV systems are supplied as a complete set. The housings made of high-quality thermoplastic are insulated, protection class IP 54/IP 65. Inverter collectors can be extended by the function lightning and overvoltage protection or fault current protection (RCD). They are suitable for sheltered outdoor installation and UV-resistant. PV inverter collectors up to 220 kVA with switch disconnector for fuse 63 A, D 02. Max. 27 x 1~ power inverter or 9 x 3~ power inverter. Wall mounting with mounting rails.
