Hensel 20001389 NH fuse holder 250 A
EAN:
Part number:
Item no:
Product type
NH fuse holder
Fuse size
1
Nominal current - rounded value
250 A
Number of pins
3
Nominal current
250 A
Technical specifications
- Attachment option: Yes
- Number of groups: 1
- With transparent cover: Yes
- Placement on rail system: universal
- Protection system: IP65
- Housing material: Plastic
- Product type
NH fuse holder
- Fuse size
1
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Number of pins
3

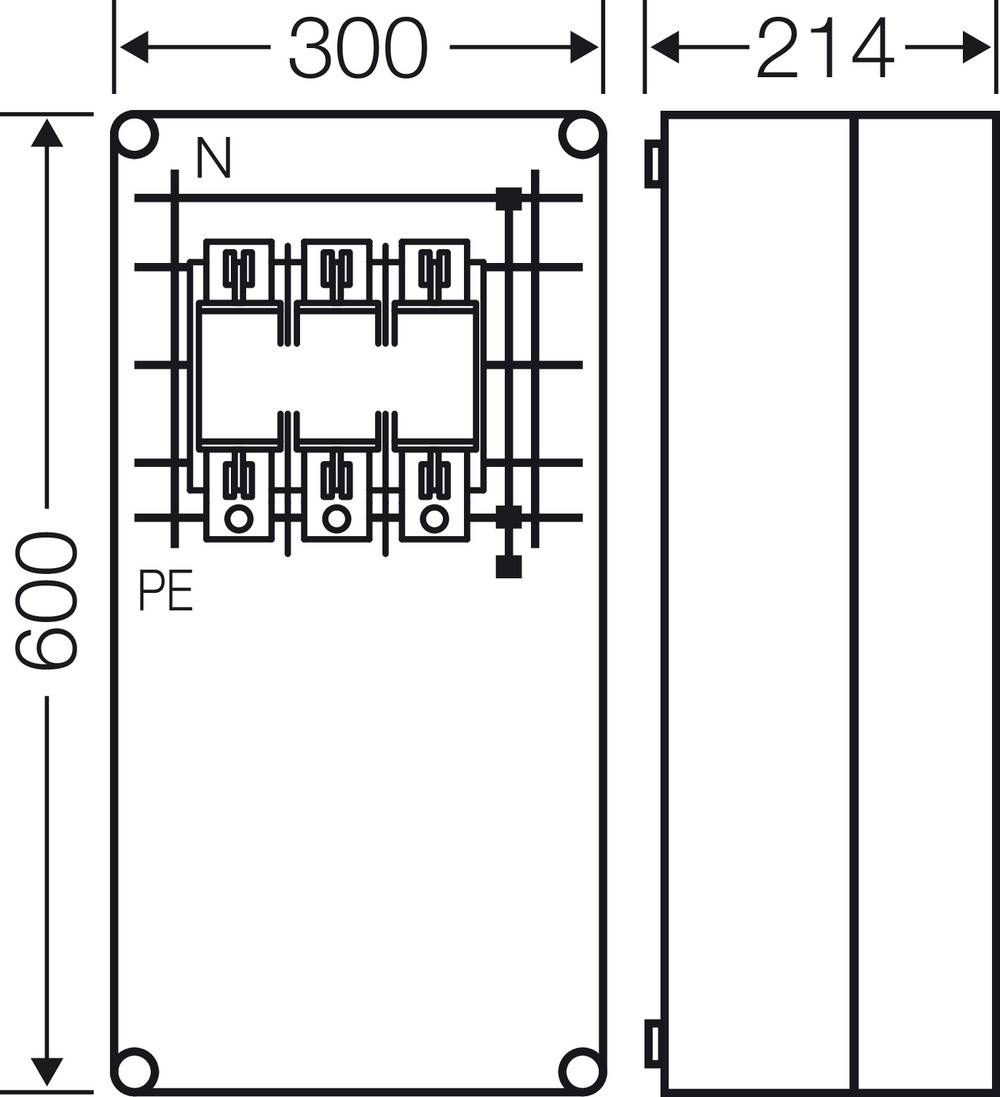

- Dim
(W x H x D) 300 x 600 x 214 mm
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
600 mm
- Depth
214 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296356 Hensel 20001389 NH fuse holder 250 A
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with safety base NH 1, 3-pin, according to IEC 60269 on mounting plate. Without supply terminals. With PE and N terminals. Lid closures for tool actuation.
