Hensel 20001391 MI PV 1171 Generator junction box
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Rated insulation voltage UI 1000 V.
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -5..40 °C.
- Surface: Untreated
- Protection system: IP65
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Generator junction box

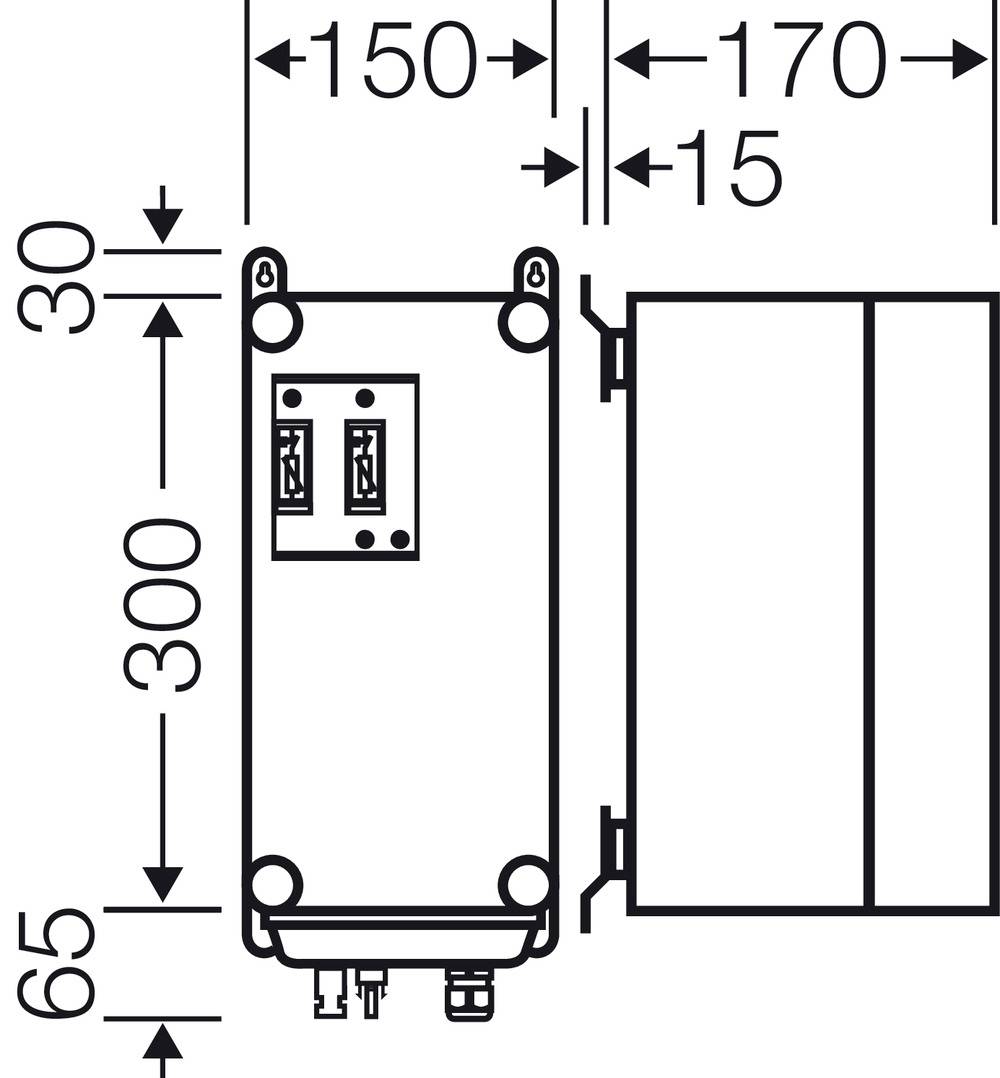

- Dim
(L x W) 365 mm x 150 mm
- Factory colour
Grey
- Content
1 pc(s)
- Width
150 mm
- Depth
170 mm
- Length
365 mm
- Mounting type
Surface-mount
- Features
Halogen-free
Weather-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295866 Hensel 20001391 MI PV 1171 Generator junction box
Description

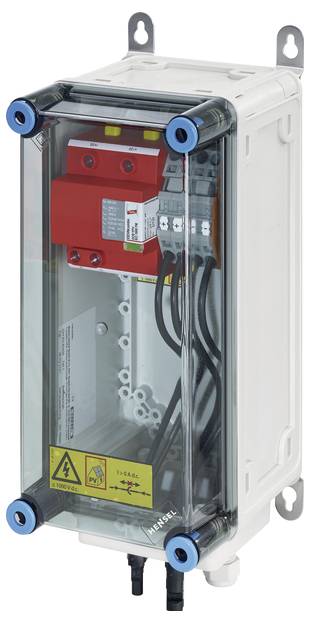

Generator connection box for PV systems up to 1000 V dc according to IEC 61439, completely mounted and wired ready for connection. The housings are made of high-quality thermoplastic and are insulated with protection class IP 65. As required, PV generator junction boxes are equipped with surge arresters, generator circuit breakers and phase fuses. They are suitable for protected installation outdoors and UV-resistant. The wall mounting is done via external brackets made of stainless steel. PV generator junction box with 1 DC surge arrester type 1 + 2. 2 x PV string on 1 x inverter input. The plug connections are compatible with MC4. Lid closures for tool actuation.
