Hensel 20001447 Terminal Screws, Jack connector Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Connection
Screws
Jack connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Highlights & Details
Hensel PE terminal/N disconnect terminal FIXCONNECT FC PN 60 NT
- FC PN 60 NT
Technical specifications
- Design: PE terminal/N disconnect terminal
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 2..16 mm²
- Connectable conductor cross-section multi-strand 2..25 mm²
- Connection position: Lateral
- Number of terminal points per pole: 30
- Operating temperature: 40 °C
- Mounting type: Direct mounting
- Material of the insulating body: Thermoplastic
- Packaging type
Piece
- Product type
Terminal
- Features
with screw connection
- Connection
Screws
Jack connector
- Configuration
NT
- Cross section (flexible) (min.)
2 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
2
- Factory colour
Multicolour
- Nominal current
75 A
- Nominal current - rounded value
75 A
- Nominal voltage
690 V
- Manufacturer part #
20001447
- Content
1 pc(s)
- Type
FC PN 60 NT
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2291831 Hensel 20001447 Terminal Screws, Jack connector Multicolour 1 pc(s)
Description

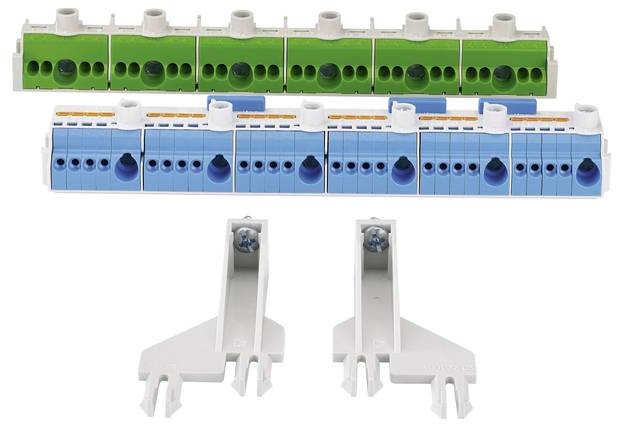

FIXCONNECT NT terminal FC PN 60 NT, screw fixing, PE 6 x 25 mm² frame terminals and 24 x 4 mm² plug-in terminals, N 6 x 25 mm² frame terminals and 24 x 4 mm² Cu N disconnect terminals. N separable, for up to 4 different potentials. Can be used in HENSEL-Mi housings.
