Hensel 20001455 Mi SP 2240 Switchboard cabinet Content 1 pc(s)
Product type
Switchboard cabinet
Mounting type
Wall
Width
300 mm
Height
300 mm
Depth
170 mm
EAN:
Part number:
Item no:
Technical specifications
- Protection system: IP65
- Product type
Switchboard cabinet
- with PE and N terminals
No
- Mounting type
Wall
- Factory colour
Grey
- Width
300 mm
- Height
300 mm
- Dim

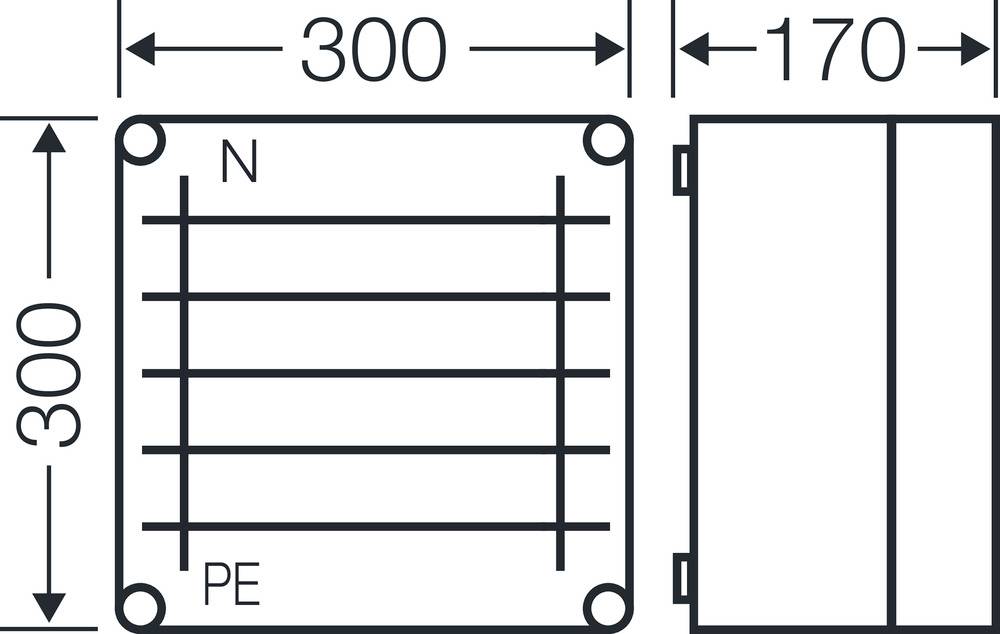

(W x H x D) 300 x 300 x 170 mm
- Depth
170 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295868 Hensel 20001455 Mi SP 2240 Switchboard cabinet Content 1 pc(s)
Description

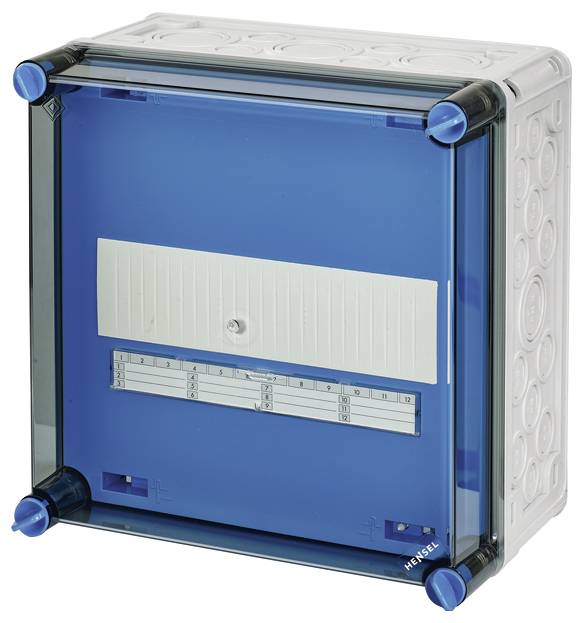

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with busbars, without device, without terminals. Lid closures for tool actuation.
