Hensel 20001470 Hensel PV activator unit 100kVA, 3-p. M.LS+NA mi AE 3233 PV activator unit 3-pin 1 pc(s)
EAN:
Part number:
Item no:
Product type
PV activator unit
Factory colour
Multicolour
Number of pins
3
Dim

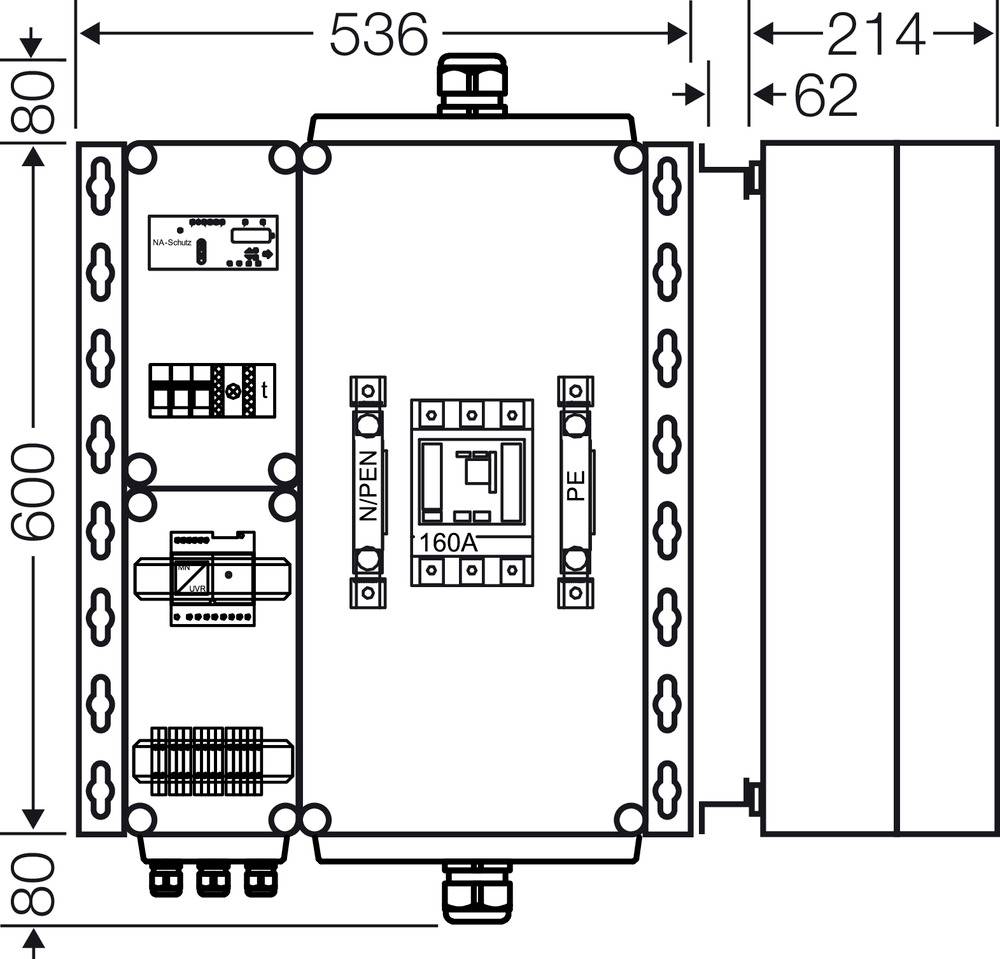

(W x H x D) 536.00 x 760.00 x 276.00 mm
Content
1 pc(s)
Technical specifications
- Number of poles: 3
- Nominal current: 145 A
- Switch-off capacity according to IEC 947, LCU, 400 V: 36 kA
- Nominal voltage AC 50 Hz: 400 V
- Suitable for series installation: No.
- Overload release 57..160 A
- With ground-fault protection function: No.
- Height: 760 mm
- Width 536 mm
- Depth: 276 mm
- Product type
PV activator unit
- Factory colour
Multicolour
- Number of pins
3
- Dim
(W x H x D) 536.00 x 760.00 x 276.00 mm
- Content
1 pc(s)
- Width
536.00 mm
- Height
760.00 mm
- Depth
276.00 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163003 Hensel 20001470 Hensel PV activator unit 100kVA, 3-p. M.LS+NA mi AE 3233 PV activator unit 3-pin 1 pc(s)
Description

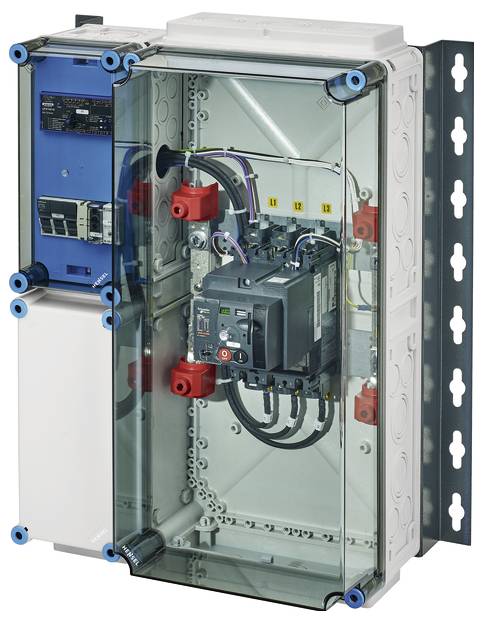

Connecting points for the connection of generation systems to the low-voltage network are ready-to-connect distributors of up to 135 kW/150 kVA in accordance with VDE-AR-N 4105 with coupled switch and NA protection. The housings made of high-quality thermoplastic are insulated. Protection class IP 54/IP 65. They are suitable for sheltered outdoor installation and UV-resistant. Connection point for generation systems for BHKW, photovoltaic and wind turbines. Rated power 90 kW/100 kVA, for 4/5-conductor TN power. Coupling switch with 1 circuit breakers with motor drive, 3-pole. Lid closures for tool actuation, lead-sealable. Wall mounting with mounting rails.
