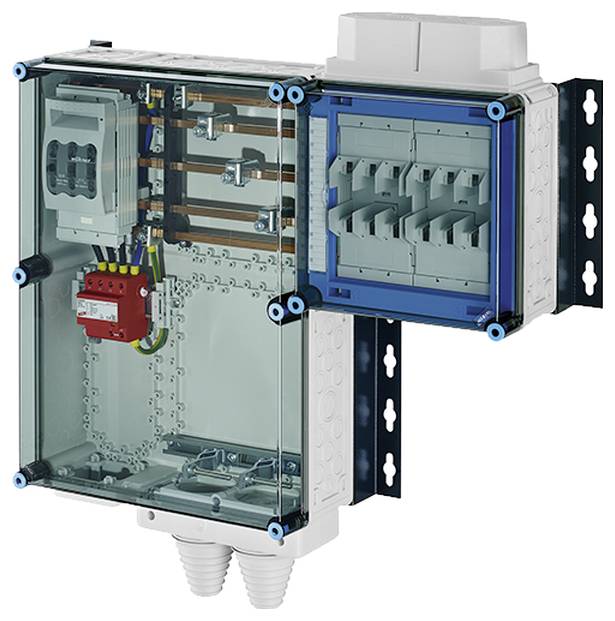

Hensel 20001504 20001504 Switchboard cabinet Content 1 pc(s)
Product type
Switchboard cabinet
Mounting type
Wall
Width
836.00 mm
Height
866.00 mm
Depth
232.00 mm
EAN:
Part number:
Item no:
Technical specifications
- NH fuse
- Rated current 125 A
- Protection class (IP) IP54
- Placing on a track system: Universal
- Number of groups: 2
- Housing material: Plastic
- With transparent cover: Yes
- Height: 866 mm
- Width 836 mm
- Depth: 232 mm
- Mounting option: Yes
- Product type
Switchboard cabinet
- Mounting type
Wall
- Width
836.00 mm
- Height
866.00 mm
- Dim

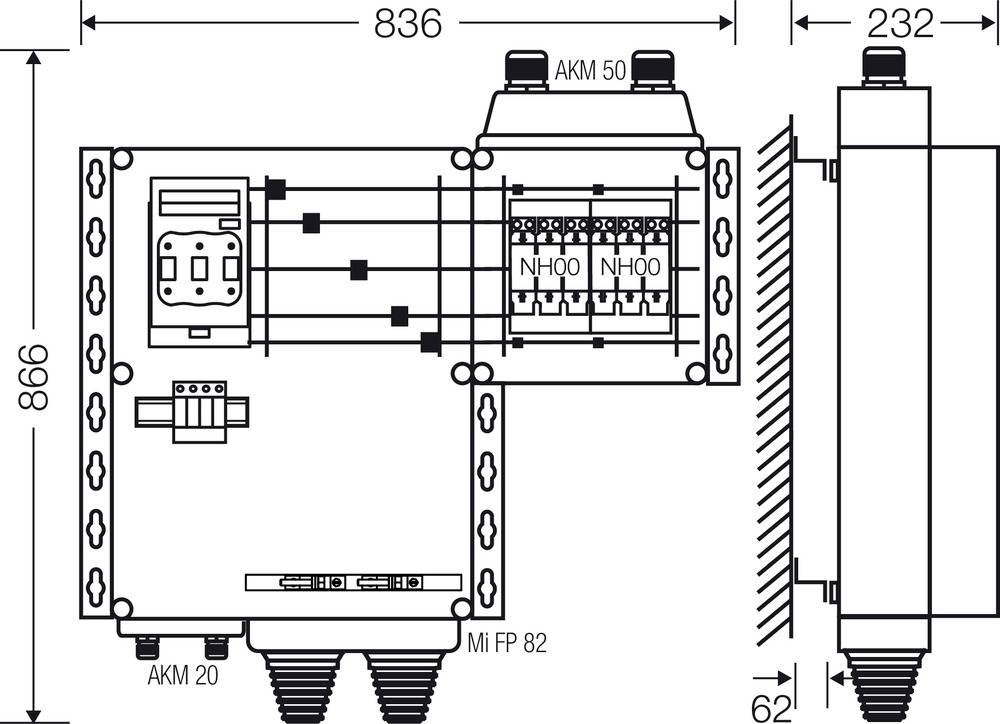

(W x H x D) 836.00 x 866.00 x 232.00 mm
- Depth
232.00 mm
- Content
1 pc(s)
IP54
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162140 Hensel 20001504 20001504 Switchboard cabinet Content 1 pc(s)
Description
Housing for the building of energy-switching device combinations up to 630 A, or as individual housing. Made of high-quality polycarbonate with protective insulation. Wall penetrations with large openings for the electrical connection of the casings with each other. Cable entry at all housing walls by metric knockouts or extension flanges. Case for wall mounting even on external lugs or with mounting rails. Ready to connect distributor with 2 fuse compartments NH 00, 3-pin, on 5-pin busbar system 250 A.
