Hensel 20001514 20001514 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Wall
Width
686.00 mm
Height
1111.00 mm
Depth
276.00 mm
Technical specifications
- NH fuse
- Rated current 250 A
- Protection class (IP) IP54
- Placing on a track system: Universal
- Number of groups: 2
- Housing material: Plastic
- With transparent cover: Yes
- Height: 1111 mm
- Width 686 mm
- Depth: 276 mm
- Mounting option: Yes
- Product type
Switchboard cabinet
- Mounting type
Wall
- Width
686.00 mm
- Height
1111.00 mm
- Dim

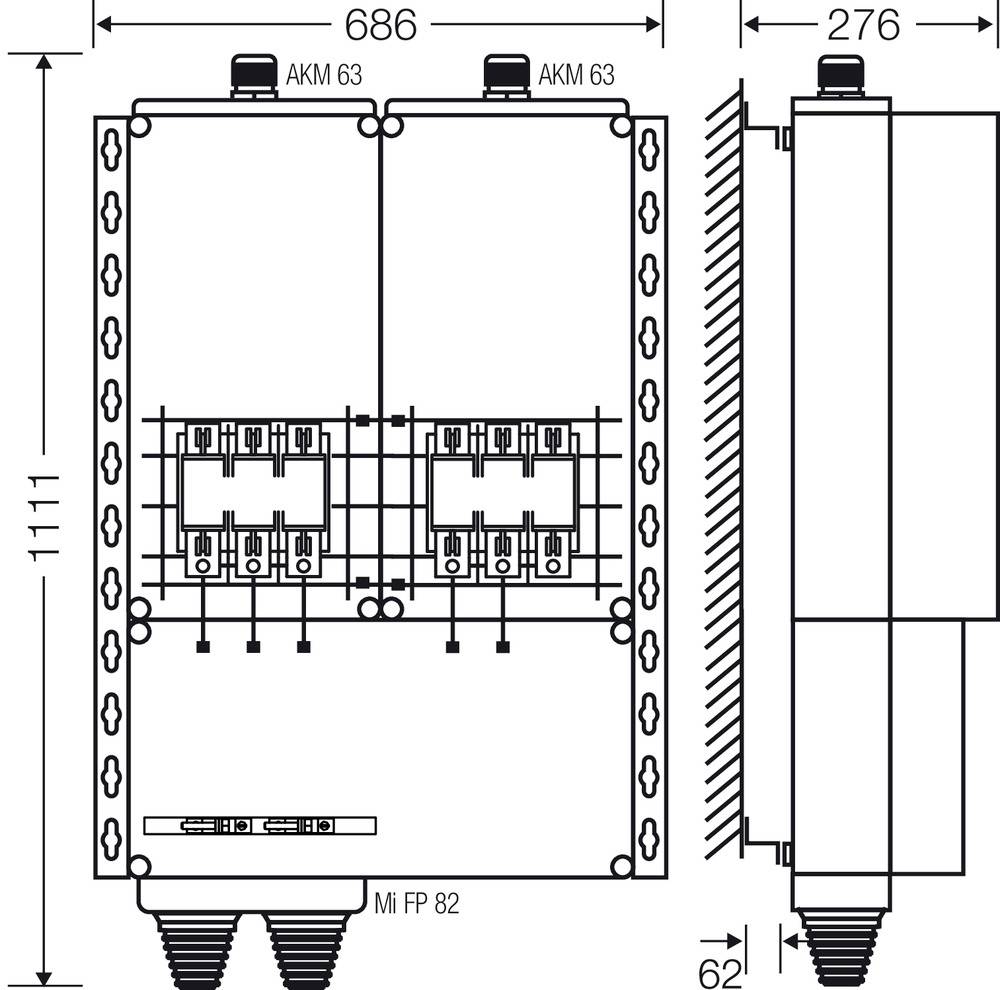

(W x H x D) 686.00 x 1111.00 x 276.00 mm
- Depth
276.00 mm
- Content
1 pc(s)
IP54
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162143 Hensel 20001514 20001514 Switchboard cabinet Content 1 pc(s)
Description

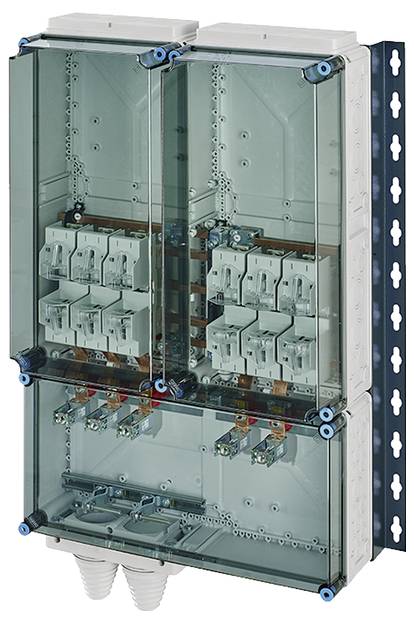

Housing for the building of energy-switching device combinations up to 630 A, or as individual housing. Made of high-quality polycarbonate with protective insulation. Wall penetrations with large openings for the electrical connection of the casings with each other. Cable entry at all housing walls by metric knockouts or extension flanges. Case for wall mounting even on external lugs or with mounting rails. Ready to connect main line distributor for the pre-meter area, lead sealable, with 2 fuse compartments NH 1, 3-pole, on 5-pole busbar system 400 A. Use in the unmeasured range according to agreement with local network operator.
