Hensel 20001582 20001582 Inverter
EAN:
Part number:
Item no:
Technical specifications
- Fuse disconnect housing features: With fuse disconnect switch
- Number of poles: 3
- Rated operating current Ie: 200 A.
- Max. Rated operating voltage Ue at AC: 690 V
- Rated insulation voltage UI 800 V
- Size of the fuse inserts: NH000
- With fuse monitoring: No.
- Case width 686 mm
- Housing depth 276 mm
- Housing height 735 mm
- Protection class (IP) IP54
- Product type
Inverter
- Nominal voltage (details)
690 - 800 V

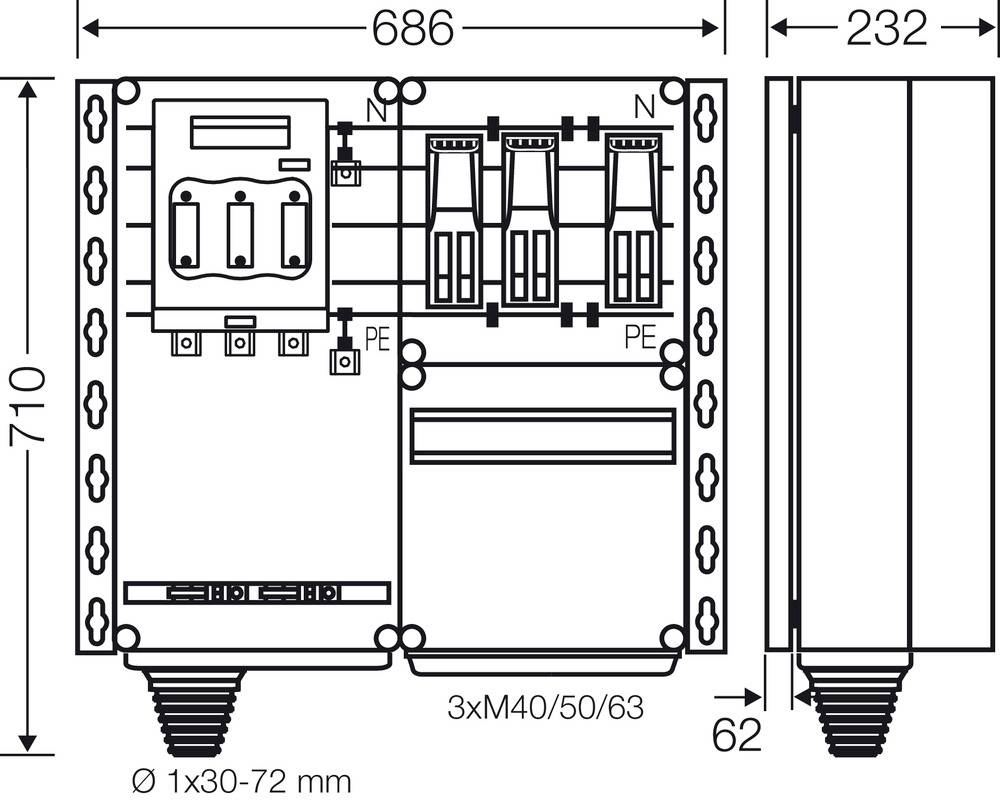

- Dim
(W x H x D) 686.00 x 735.00 x 276.00 mm
- Solar energy system features
Inverter
- Nominal current
200.0 A
- Width
686.00 mm
- Height
735.00 mm
- Depth
276.00 mm
IP54
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162991 Hensel 20001582 20001582 Inverter
Description

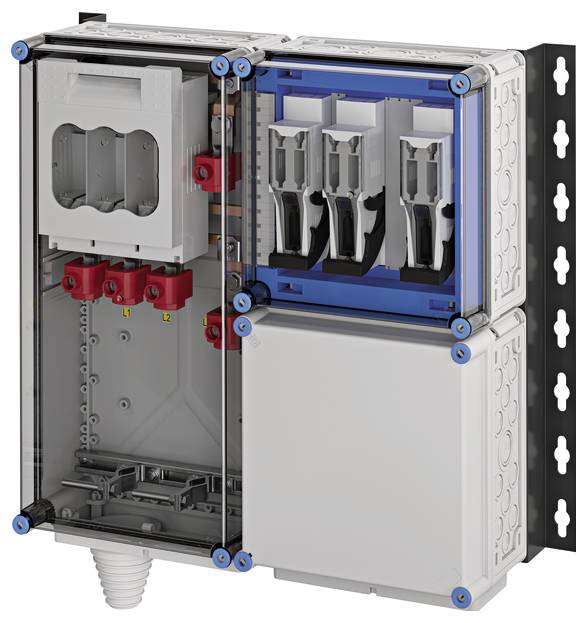

Inverter collectors according to IEC 61439 for PV systems are delivered ready for connection The housings made of high-quality thermoplastic are insulated with protection class IP 54. Inverter modules can be expanded by the flash and overvoltage protection function. They are suitable for sheltered outdoor installation and UV-resistant. PV inverter collector up to 140 kVA with NH 000 fuse disconnector. Max. 3 x 3~ power inverter. Wall mounting on mounting rails made of zinc-coated and powder-coated steel plate.
