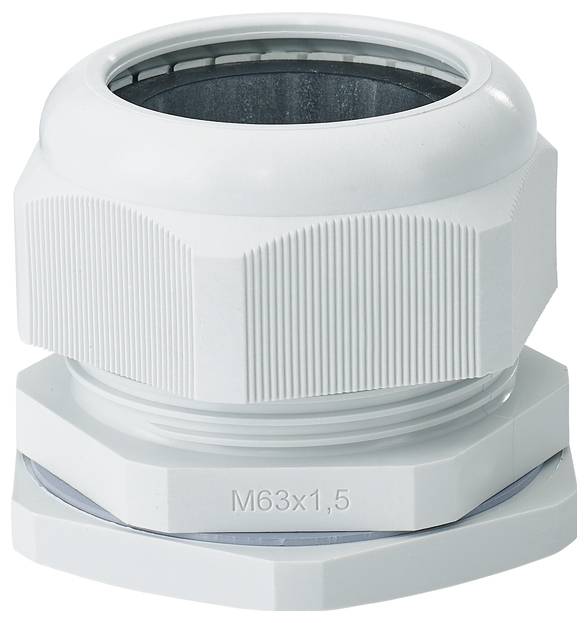

Hensel 3600215 Cable gland with locknut, with strain relief, shockproof Plastic Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M63
Type
straight
Material
Plastic
Clamp Ø
35 mm
Technical specifications
- Type of seal: Sealing ring
- Cable gland: no.
- Suitable for cable diameter 35..42 mm
- Metric thread size 63
- Thread pitch 2 mm
- Surface: Untreated
- Hexagonal corner dimensions 75 mm
- Material quality: Polyamide (PA)
- Product type
Cable gland
- Features
with locknut
with strain relief
shockproof
- Factory colour
Light grey
- External thread
M63
- Type
straight
- Material
Plastic
- Clamp Ø
35 mm
- Terminal Ø (max.)
42 mm
- Thread length
10 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Spanner size
68 mm
- Dimensions
75 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Dim
75
- RoHS-compliant
Yes
- Manufacturer part #
3600215
- Type
AKM 63
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293252 Hensel 3600215 Cable gland with locknut, with strain relief, shockproof Plastic Light grey 1 pc(s)
Description
Extension cable socket for knockouts M 63. Sealing range Ø 35-42 mm.
