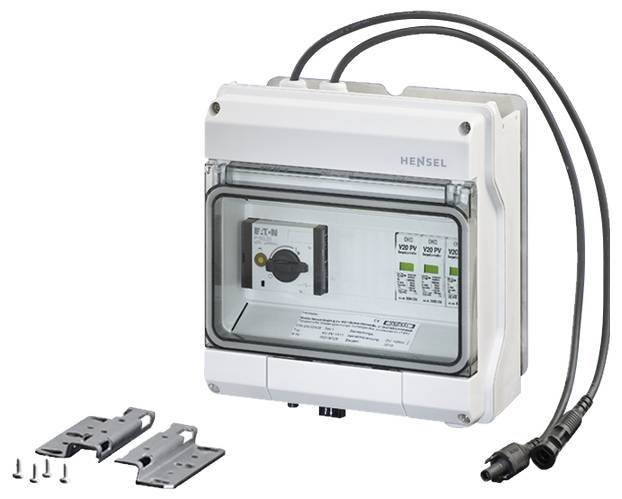

Hensel 61001083 KV PV 2411 Generator junction box
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Rated insulation voltage UI 1000 V.
- Lid mounting: Hinged
- Introduction from behind: no.
- Operating temperature: -5..40 °C.
- Surface: Untreated
- Protection system: IP65
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Generator junction box

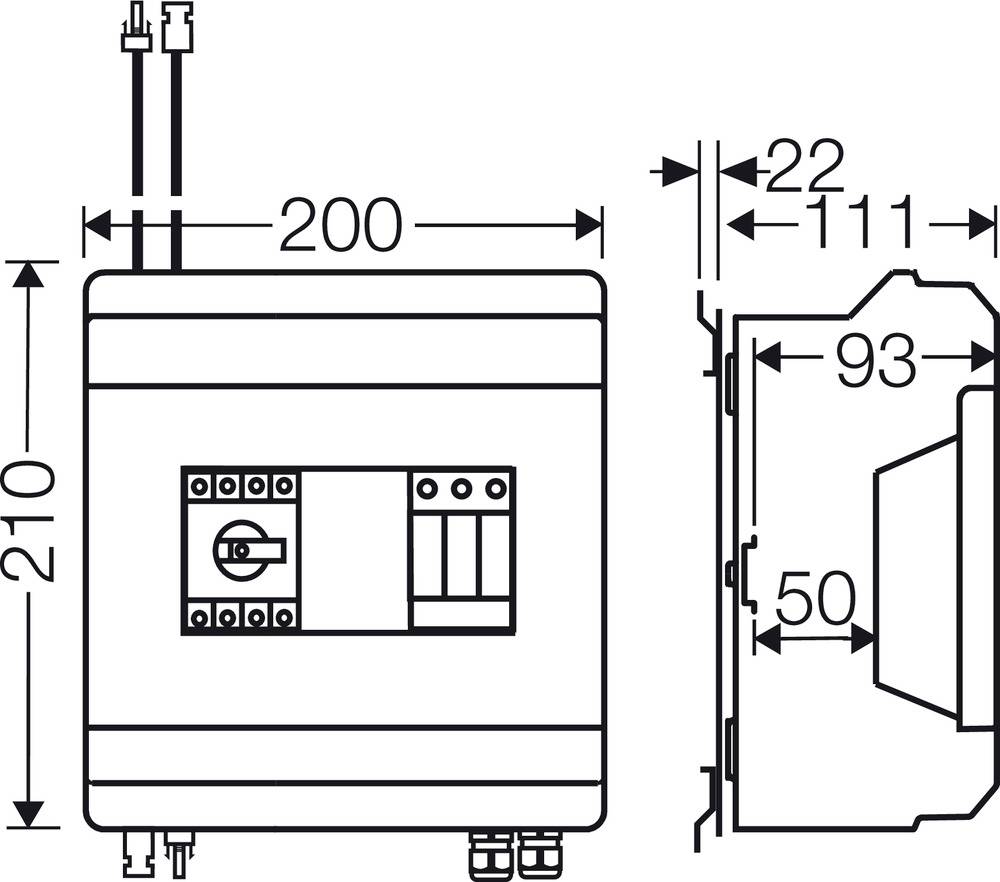

- Dim
(L x W) 210 mm x 200 mm
- Type
With TU, 1x PV-String
- Factory colour
Grey
- Content
1 pc(s)
- Width
200 mm
- Depth
111 mm
- Length
210 mm
- Mounting type
Surface-mount
- Features
Halogen-free
Weather-proof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297310 Hensel 61001083 KV PV 2411 Generator junction box
Description
Generator connection box for PV systems up to 1000 V dc according to IEC 61439-1, completely mounted and wired ready for connection. The housings are made of high-quality thermoplastic and are insulated with protection class IP 65. As required, KV-PV generator junction boxes are equipped with surge arresters or generator circuit breakers. They are suitable for unprotected installation outdoors and UV-resistant. With mounting plate for wall and mast mounting made of stainless steel. PV generator junction box with type 2 DC surge arresters and DC generator isolator. 1 x PV string on 1 x inverter input. The plug connections are compatible with MC4. With hinged lid for manual operation. Lock for flap and sealing set in the accessories.
