Hensel 6100430 KV 9220 Distribution board Surface-mount No. of partitions = 12 No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
12
No. of rows
1
Mounting type
Surface-mount
Width
295 mm
Technical specifications
- Attachment option: Yes
- Type of cover: Door
- Lid type: Closed
- Width in division units: 12
- DIN rail: Yes
- Installation depth: 93 mm
- EMC version: no.
- Internal depth 114 mm
- With mounting plate: no.
- With lock: no.
- Protection system: IP65
- Transparent cover/door: Yes
- Housing material: Plastic
- Product type
Distribution board
- No. of partitions
12
- No. of rows
1
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
295 mm
- Height
458 mm
- Dim

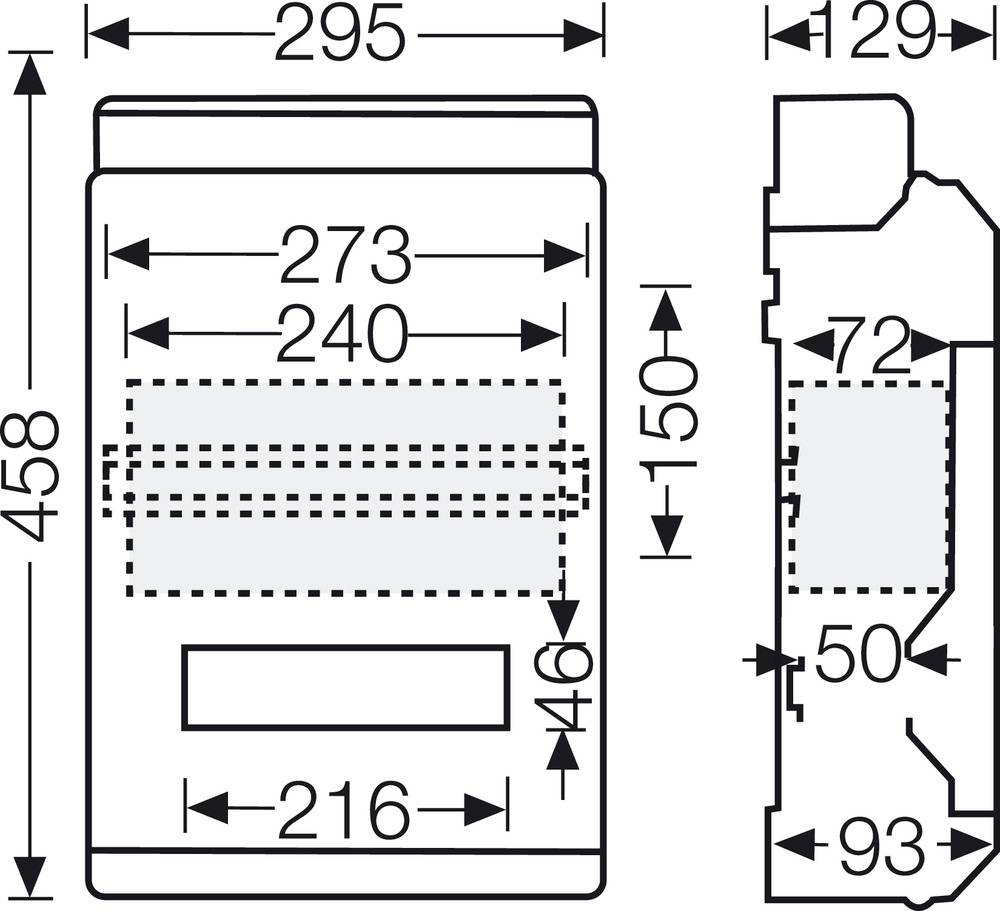

(W x H x D) 295 x 458 x 129 mm
- Depth
129 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295053 Hensel 6100430 KV 9220 Distribution board Surface-mount No. of partitions = 12 No. of rows = 1 Content 1 pc(s)
Description

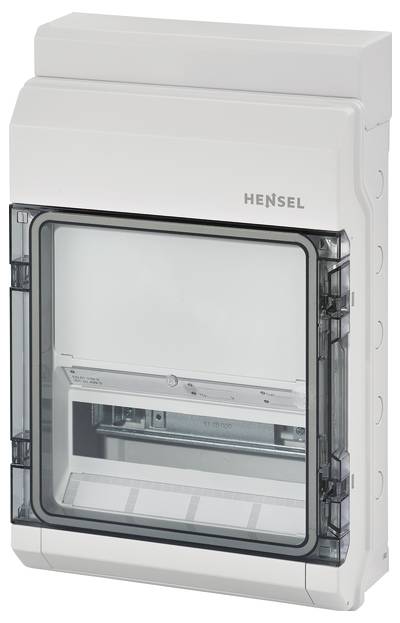

Small distributor made of high-quality thermoplastic with room for user-independant devices. With DIN rail for devices and terminal blocks. For surface-mounting applications in buildings or in the protected installation outdoors. Circuit breaker housing, with 12 division units, without PE- and N-terminal. For the installation of devices with snap-on mounting on DIN-mounting rail. Cable entry via integrated elastic sealing membranes. With transparent door and cable entry panel, integrated accessory compartment and cover strips for the device cut-out. Protection type IP 65.
