Hensel 68000117 Fuse holder 250 A
Product type
Fuse holder
Fuse size
D02
Nominal current - rounded value
250 A
Nominal current
250 A
Dim

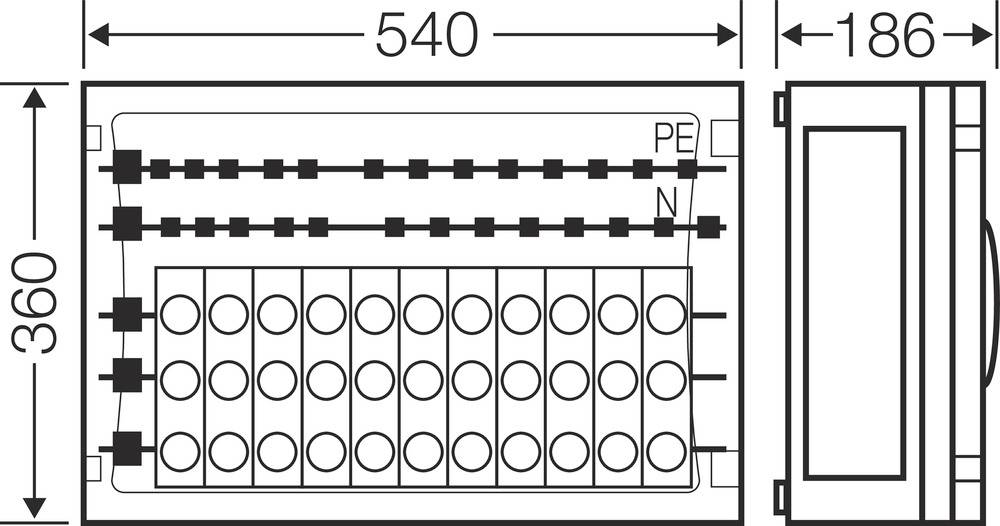

(W x H x D) 540 x 360 x 186 mm
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- Number of groups: 11
- With transparent cover: Yes
- Placement on rail system: universal
- IP66 protection rating
- Housing material: Plastic
- Product type
Fuse holder
- Fuse size
D02
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Dim
(W x H x D) 540 x 360 x 186 mm
- Content
1 pc(s)
- Width
540 mm
- Height
360 mm
- Depth
186 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297799 Hensel 68000117 Fuse holder 250 A
Description

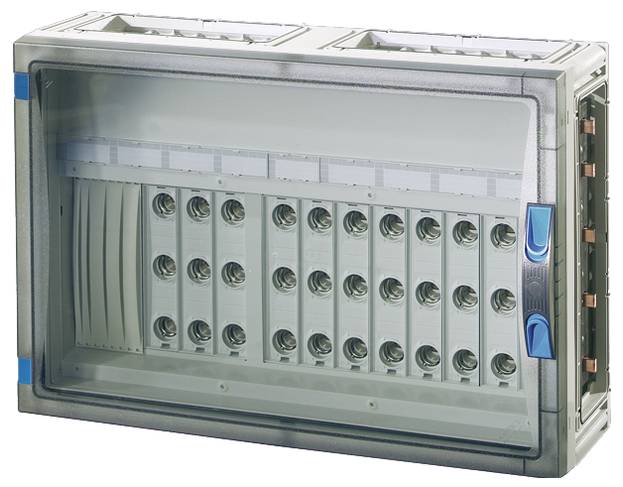

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Housing with fuse elements for D02 fuse links, E 18, on busbars. With feed terminals, PE and N terminals and touch protection. With transparent door and sealable door lock with manual actuation.
