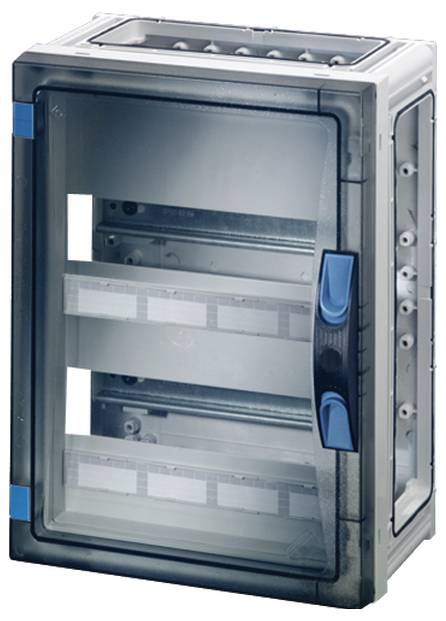

Hensel 68000178 FP 1219 Distribution board Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
24
No. of rows
2
Mounting type
Surface-mount
Width
276 mm
Technical specifications
- Attachment option: Yes
- Type of cover: Door
- Lid type: Closed
- Width in division units: 12
- DIN rail: Yes
- Installation depth: 93 mm
- EMC version: no.
- Internal depth 136 mm
- With mounting plate: no.
- With lock: no.
- IP66 protection rating
- Transparent cover/door: Yes
- Housing material: Plastic
- Product type
Distribution board
- No. of partitions
24
- No. of rows
2
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
276 mm
- Height
366 mm
- Dim

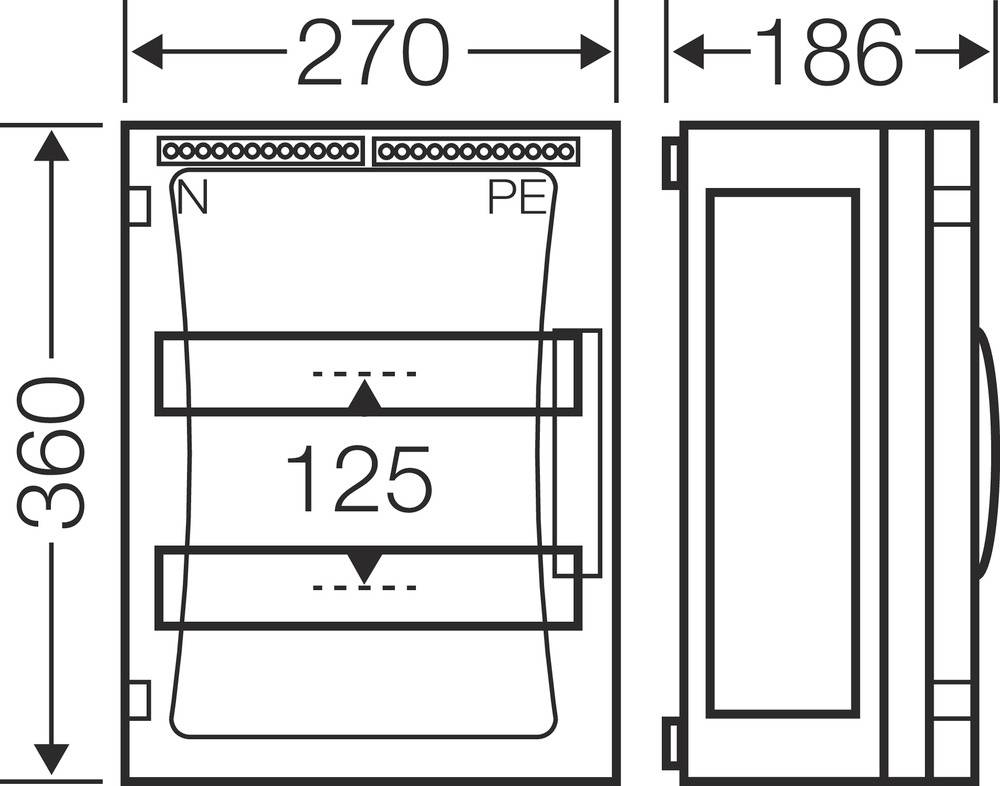

(W x H x D) 276 x 366 x 186 mm
- Depth
186 mm
- Content
1 pc(s)
- Weight
0
Surface mounted (plaster)
Grey
276
366 mm
186 mm
7035
FALSE
93 mm
2
Door
Plastic
12
IP65
FALSE
Closed
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295825 Hensel 68000178 FP 1219 Distribution board Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(s)
Description
Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Circuit breaker housing with 24 division units for the installation of series installation devices according to DIN 43880. With PE and N terminals for copper conductors. N can be separated for different potentials. With cover strips for sealing unused device cutouts and labeling strips for circuit marking. Transparent door and sealable door lock with manual actuation.
