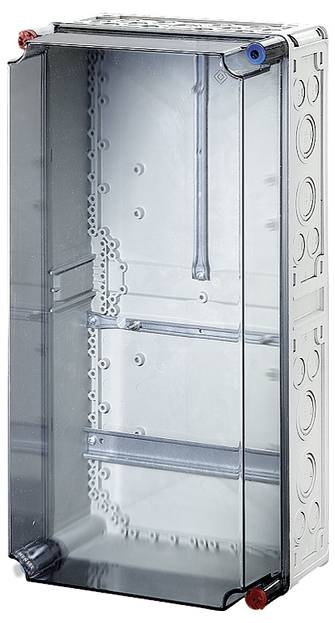

Hensel Mi 2410 Casing 300 x 600 x 214 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Technical specifications
- Installation depth: 190 mm
- Mounting type: Construction
- Packaging type
Piece
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP65
- Type
Counter casing
- Width
300 mm
- Height
600 mm
- Content
1 pc(s)
- Type
Mi 2410
- Dim

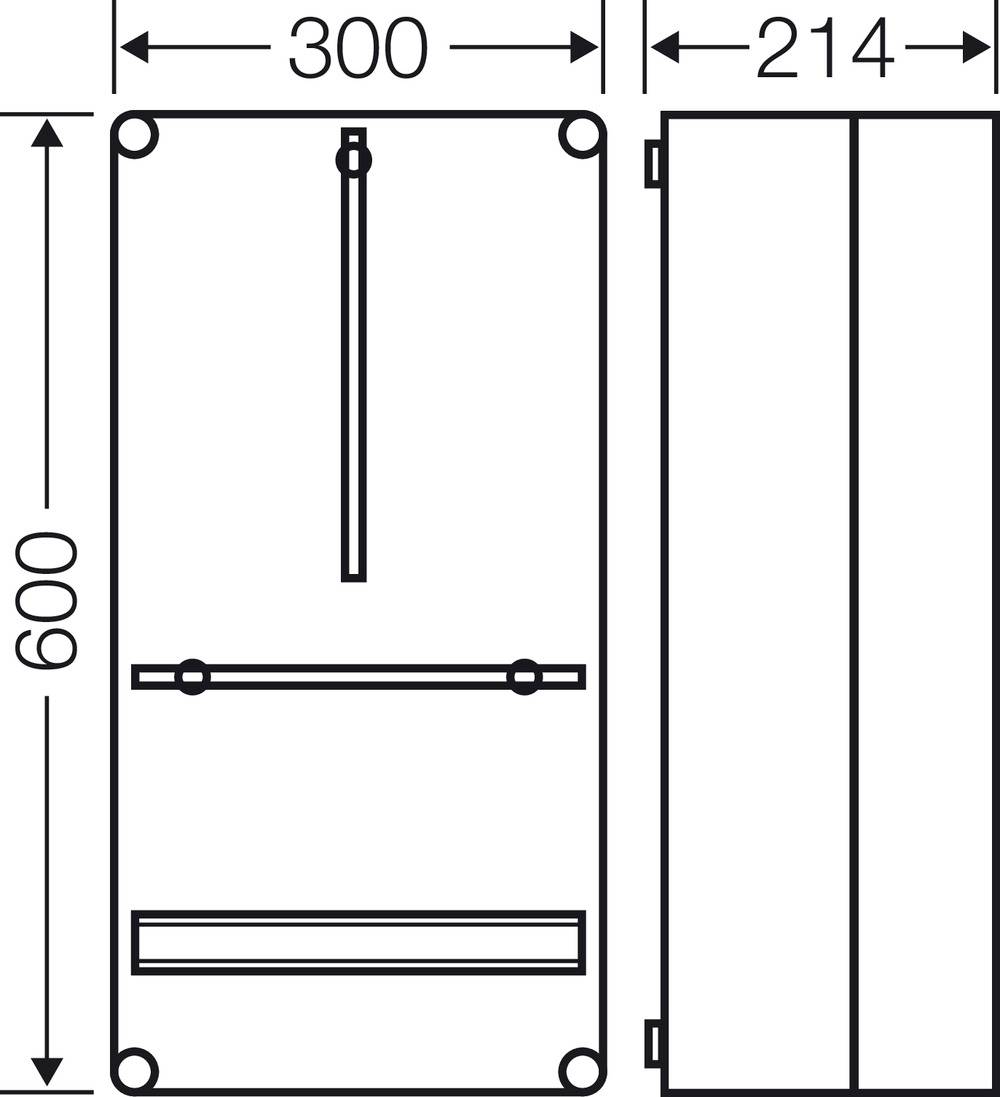

(W x H x D) 300 x 600 x 214 mm
- Manufacturer part #
2000082
- Depth
214 mm
- Mounting type
Structure
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292069 Hensel Mi 2410 Casing 300 x 600 x 214 Plastic 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Counter housing for counters with three-point mounting, including meter mounting and mounting rail. Max. Installation depth 190 mm. Lid closures for tool actuation, double sealable. Use in unmeasured areas after consultation with local network operator.
This text is machine translated.
This text is machine translated.
