Hensel Mi 7213 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 300 x 300 x 216 mm
Product type
Circuit breaker
Connection
Clamp
Packaging type
Piece
Type
Mi 7213
Control voltage (max.)
690 V AC
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
Mi 7213
- Control voltage (max.)
690 V AC
- Control voltage range
690 V AC (max)
- Current load
100 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Connection
Clamp
- Depth
216 mm
- Width
300 mm
- Height
300 mm
- Dim

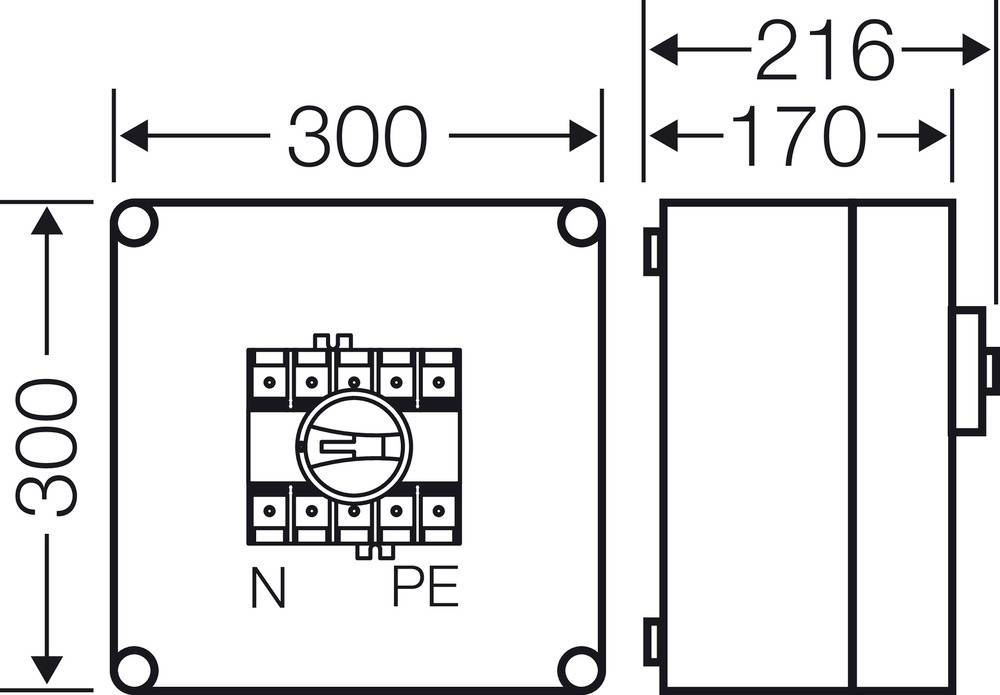

(W x H x D) 300 x 300 x 216 mm
- Content
1 pc(s)
- Weight
0
45 kW
0
0
100 A
3
690-690 V
IP65
0
TRUE
FALSE
Frame clamp
FALSE
Short thumb-grip
TRUE
FALSE
FALSE
45 kW
2.75 kA
Black
FALSE
FALSE
FALSE
FALSE
FALSE
690 V
FALSE
FALSE
Complete device in housing
100 A
45 kW
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293072 Hensel Mi 7213 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 300 x 300 x 216 mm
Description

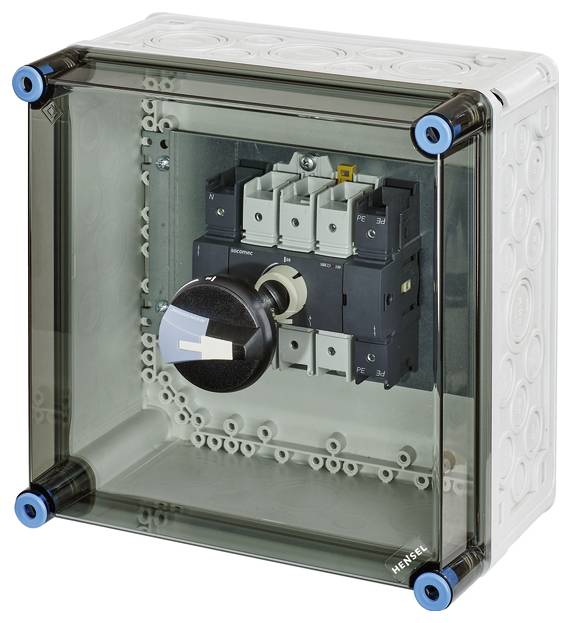

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with 100 A switch disconnector, 3-pole, according to IEC 60947-3. With PE and N terminals for copper conductors. Handle of the switch disconnector can be locked. Lid closures for tool actuation.
