Hensel Mi 7432 Circuit breaker 1 pc(s) (W x H x D) 300 x 600 x 262 mm
Product type
Circuit breaker
Type
Mi 7432
Current load
250 A
No. of pins
3-pin
Depth
262 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Circuit breaker housing
- Nominal voltage AC 50 Hz: 690 V
- Nominal current: 250 A
- Product type
Circuit breaker
- Type
Mi 7432
- Current load
250 A
- No. of pins
3-pin
- Depth
262 mm
- Width
300 mm
- Height
600 mm
- Dim

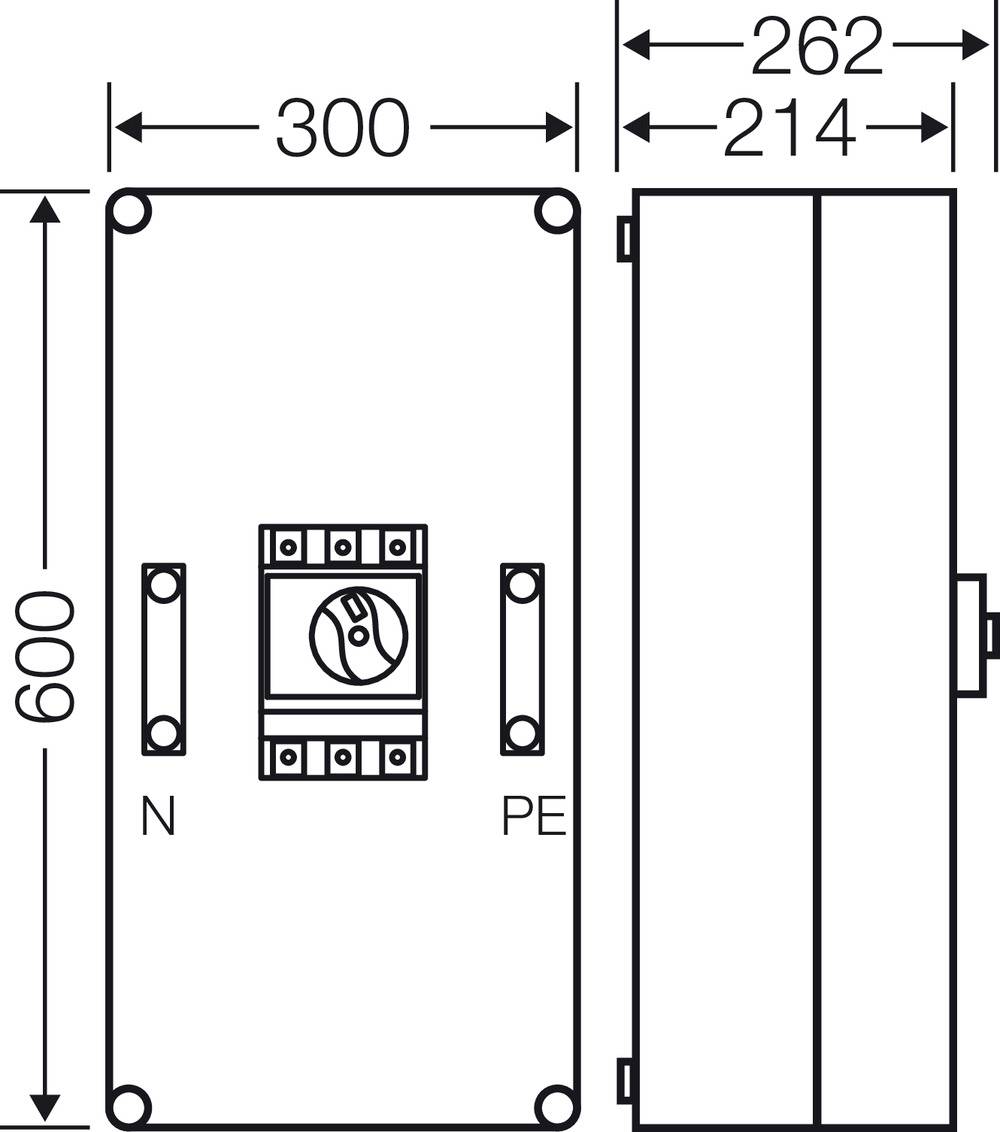

(W x H x D) 300 x 600 x 262 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294075 Hensel Mi 7432 Circuit breaker 1 pc(s) (W x H x D) 300 x 600 x 262 mm
Description

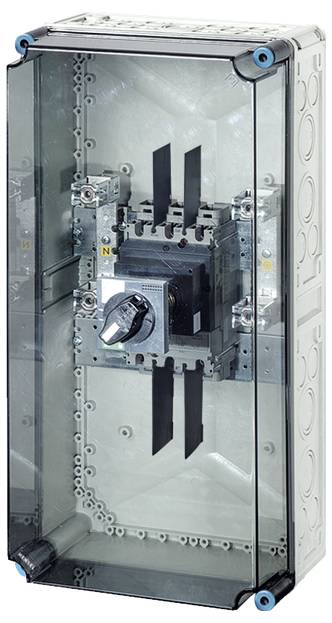

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with 250 A circuit breaker, 3-pole, according to IEC 60947-2. With PE and N terminals for copper conductors. With overload and short-circuit release. Handle of circuit breaker lockable. Lid closures for tool actuation.
