Hensel Mi 7455 Disconnect switch 1 pc(s)
Product type
Disconnect switch
Connection
Bolt fixings
Packaging type
Piece
Type
Mi 7455
Current load
250 A
EAN:
Part number:
Item no:
Technical specifications
- Design: Load switch housing
- Design as main switch: Yes
- Safety switch version: no.
- Actuator type: Long rotary handle
- Rated operating power at AC-3, 400 V: 132 kW
- Color of actuator: Black
- Type of device: Complete device in the housing
- Max. Rated operating voltage UE at 500 V AC
- Switching capacity at 400 V: 132 kW
- Lockable: Yes
- Packaging type
Piece
- Product type
Disconnect switch
- Type
Mi 7455
- Current load
250 A
- No. of pins
3-pin
- Switching voltage (max.)
500 V AC
- Connection
Bolt fixings
IP65
- Content
1 pc(s)
- Weight
0
132 kW
0
0
250 A
3
500-500 V
IP65
0
TRUE
FALSE
Bolt connection
FALSE
Long turning handle
TRUE
FALSE
FALSE
132 kW
9 kA
Black
FALSE
FALSE
FALSE
FALSE
FALSE
500 V
FALSE
FALSE
Complete device in housing
250 A
132 kW
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296295 Hensel Mi 7455 Disconnect switch 1 pc(s)
Description

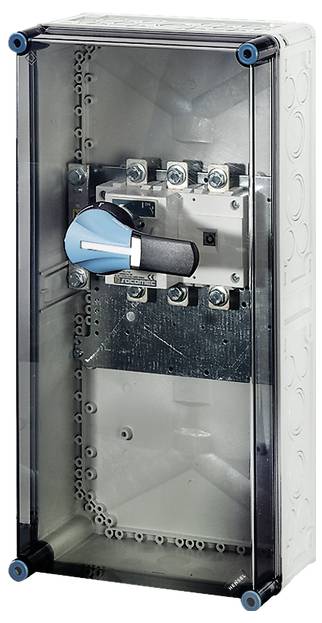

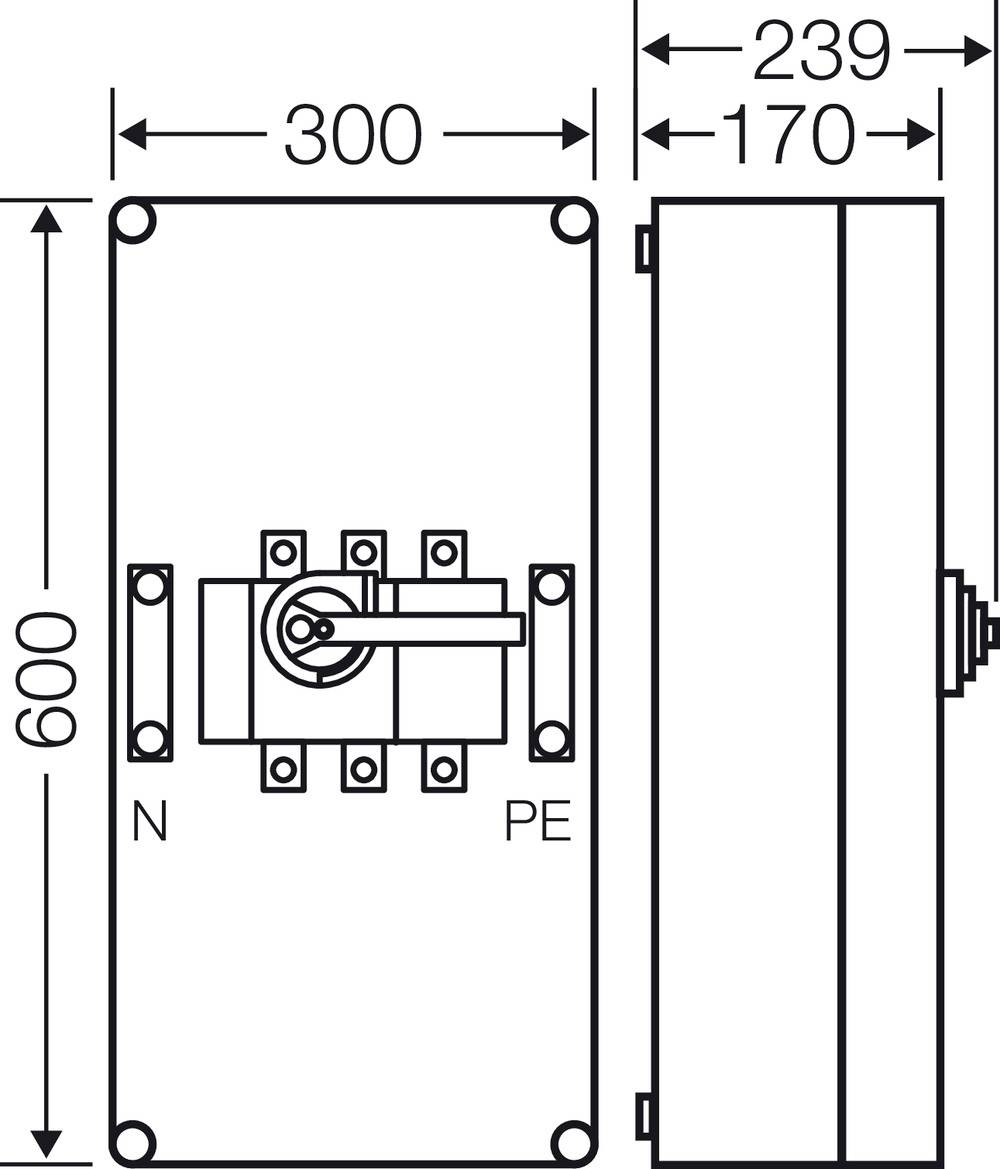

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with 250 A switch disconnector, 3-pole, according to IEC 60947-3. With PE and N terminals for copper conductors. Handle of the switch disconnector can be locked. Lid closures for tool actuation.
This text is machine translated.
This text is machine translated.
