Hensel Mi 7481 Disconnect switch 1 pc(s)
Product type
Disconnect switch
Connection
Clamp
Type
Mi 7481
Current load
160 A
No. of pins
4-pin
EAN:
Part number:
Item no:
Technical specifications
- Number of switches: 1
- Design: Load changeover housing
- Design as main switch: Yes
- Safety switch version: no.
- Design as reversible switch: Yes
- Actuator type: Long rotary handle
- Rated operating power at AC-3, 400 V: 80 kW
- Color of actuator: Black
- Type of device: Complete device in the housing
- Max. Rated operating voltage UE at 500 V AC
- Switching power at 400 V: 80 kW
- Lockable: Yes
- Product type
Disconnect switch
- Type
Mi 7481
- Current load
160 A
- No. of pins
4-pin
- Switching voltage (max.)
500 V AC
- Connection
Clamp
IP65
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294072 Hensel Mi 7481 Disconnect switch 1 pc(s)
Description

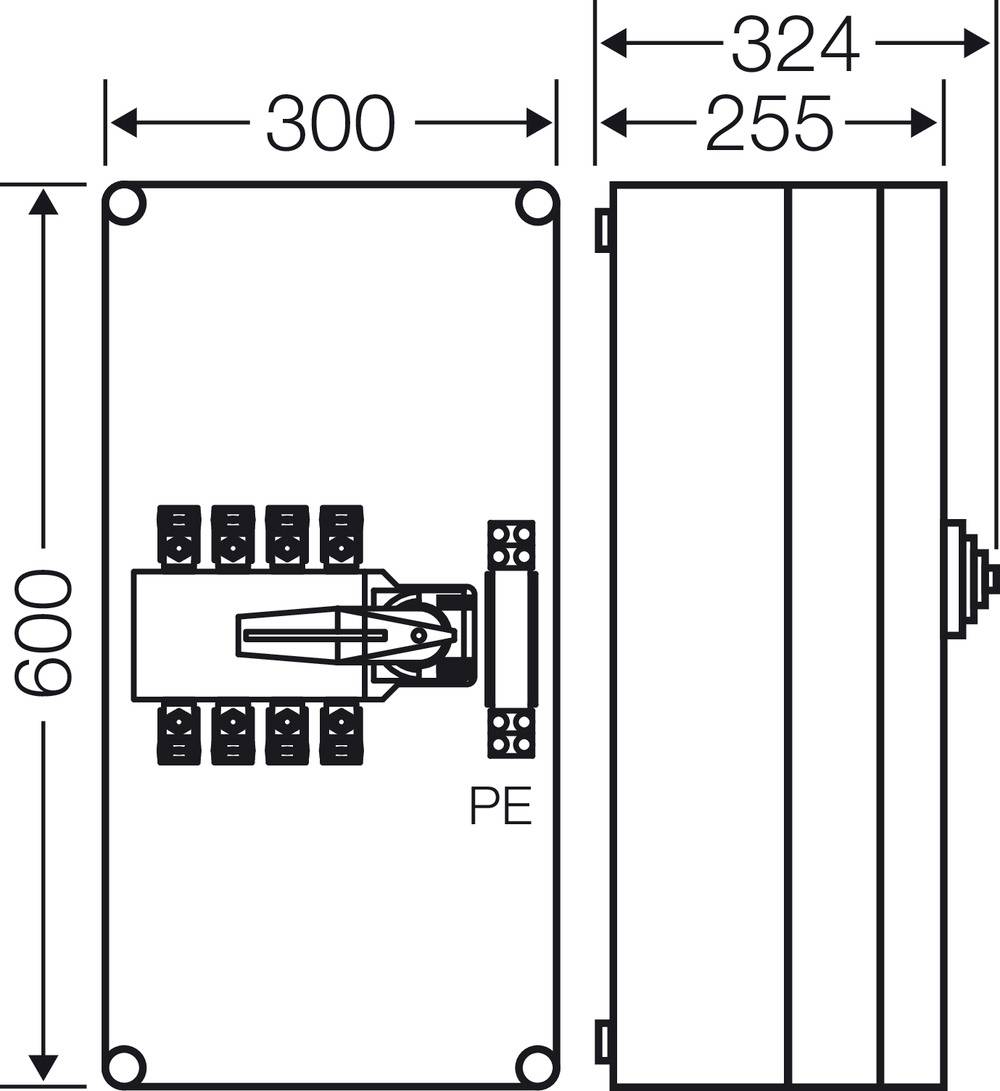

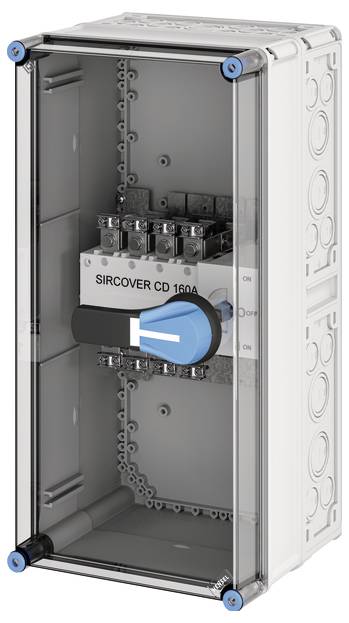

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with load switch (I-0-II), 4-pin, according to IEC 60947-3. With PE terminals for copper conductors. Connection direction can be changed. Handle of the load switch can be locked. Lid closures for tool actuation.
