Name: HiKOKI CJ18DA Cordless jigsaw CJ18DAW2Z w/o battery, w/o charger 18 V No. of power packs included 0
Brand: HiKOKI
SKU: 3524207

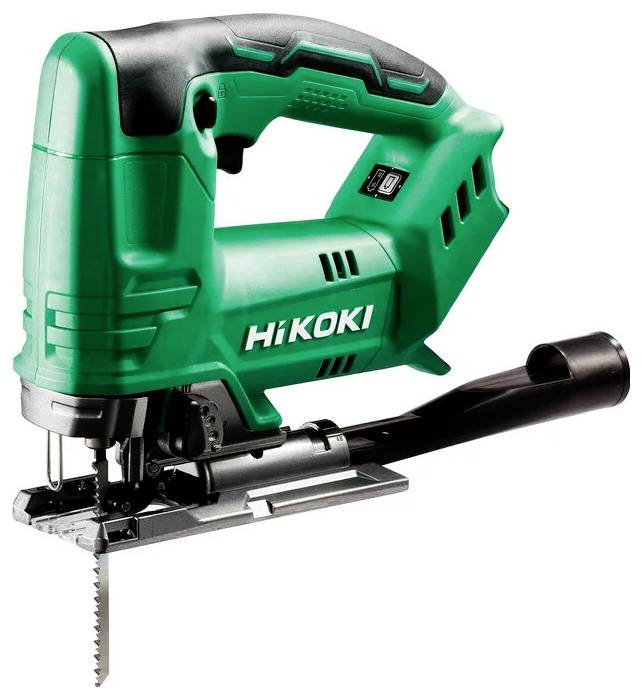

A green HiKOKI electric jigsaw with a black handle, showing the blade and footplate, is positioned against a plain white background.

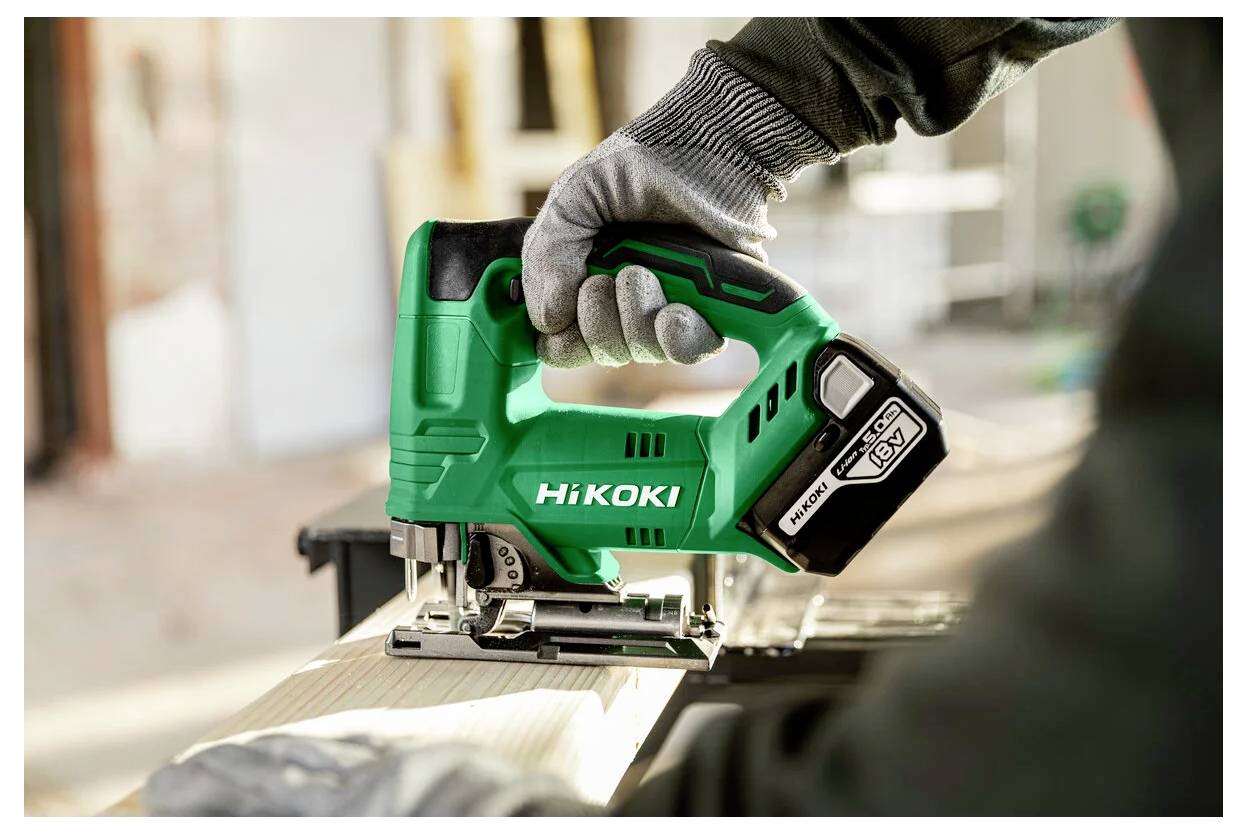

A person using a HiKOKI cordless jigsaw to cut wood on a workbench, wearing protective gloves in a workshop setting.

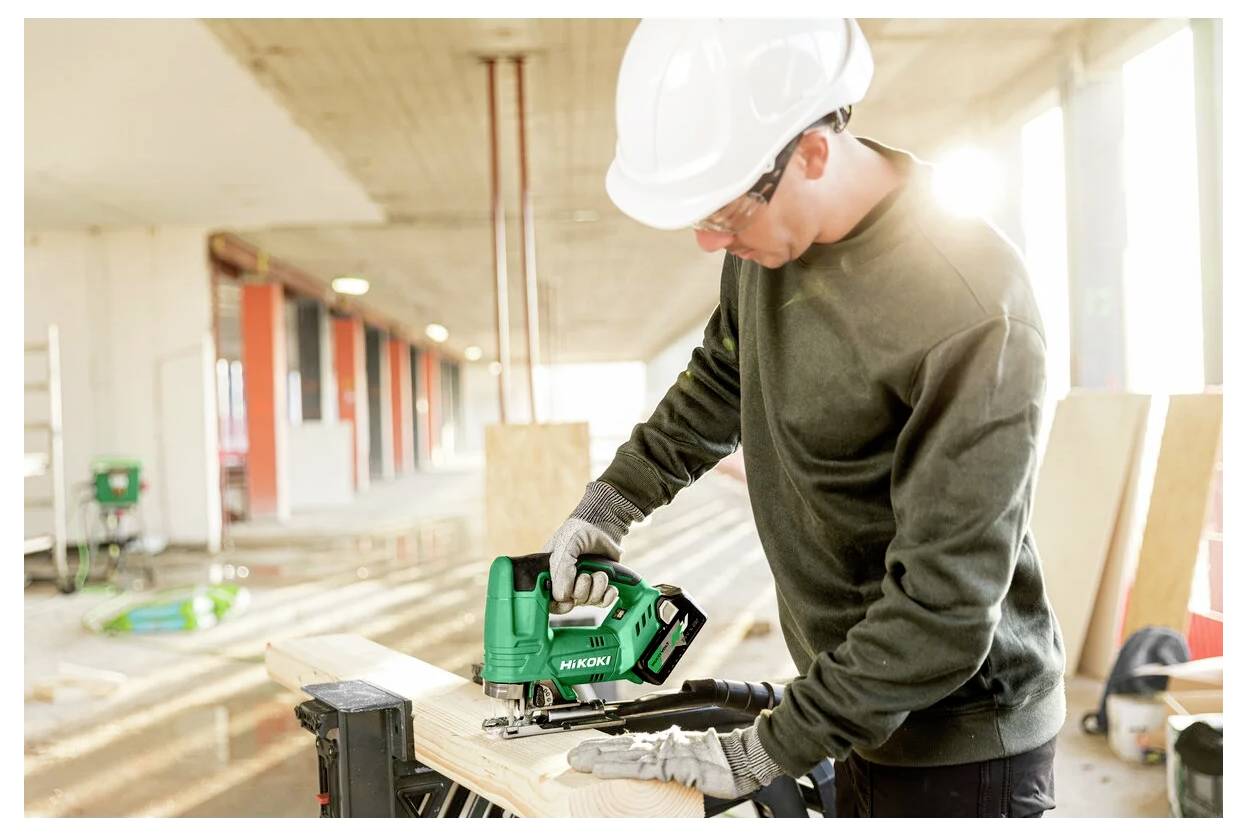

A construction worker in a hard hat and gloves uses a green power saw to cut wooden planks in a partially constructed building.

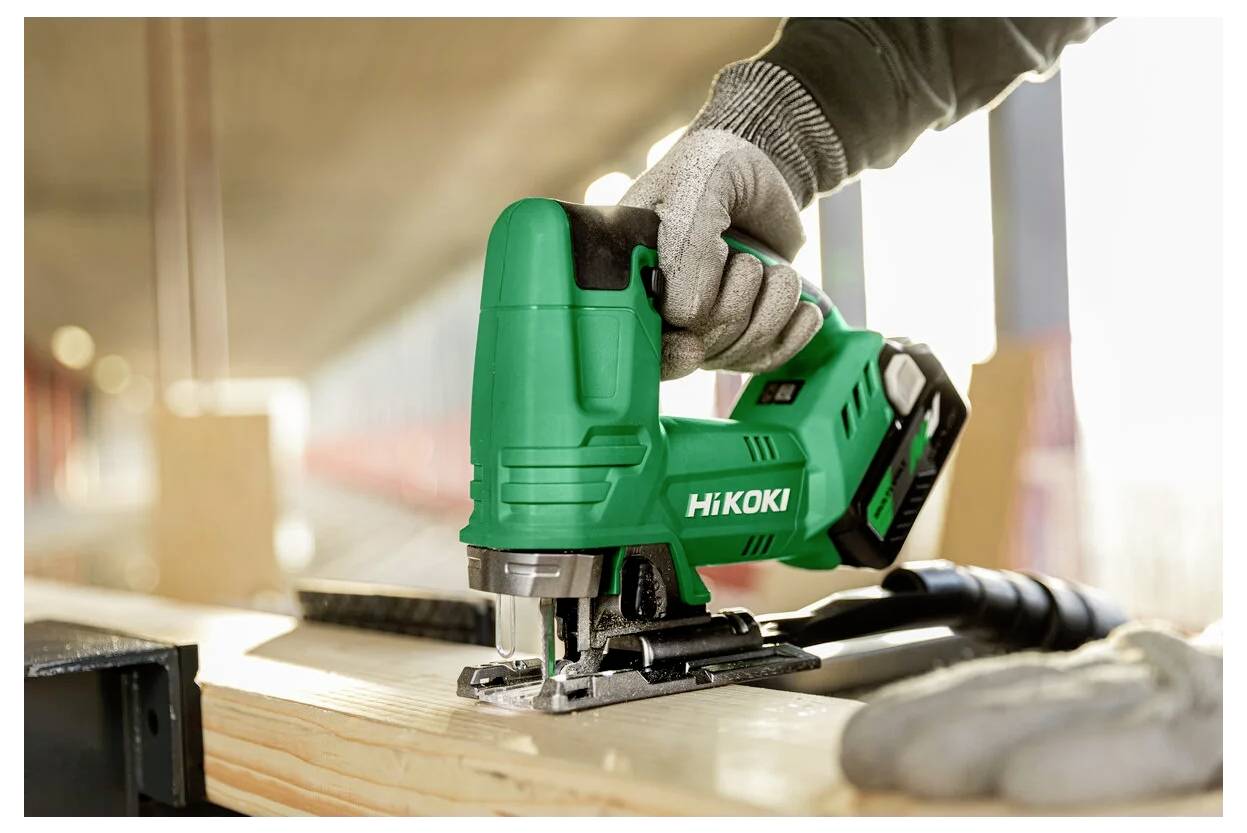

A person in work gloves uses a green HiKOKI electric jigsaw to cut a piece of wood on a construction site.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cordless jig-saw CJ18DAW2Z

18 V
Number of strokes (max.): 2500 /min

Technical specifications

Maximum cutting angle of 45 °
Minimum cutting radius 25 mm
Pendel hub levels: 4
Type of handle: Round handle
Tool-free change of saw blades: Yes
Oscillating drive: Yes
Fans for chips: Yes

Product type: Cordless jigsaw

Features: w/o battery
w/o charger

Battery voltage: 18 V

Number of strokes (max.): 2500 /min

Cutting depth (max.) (wood): 135 mm

Cutting depth (max.) (steel): 2.5 mm

Operating voltage: 18 V DC

Dim: (L x W x H) 206 x 81 x 202 mm

Length: 206 mm

Width: 81 mm

Height: 202 mm

Weight: 2.28 kg

Weight, information: incl. rechargeable battery

No. of power packs included: 0

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3524207 HiKOKI CJ18DA Cordless jigsaw CJ18DAW2Z w/o battery, w/o charger 18 V No. of power packs included 0

Description

· 4-step pendulum action setting for fast sawing progress in different materials.
· Tool-free change of saw blades (PL system) for quick and easy change of saw blades.
· Highly efficient chip blow function provides a clear view of the cut surface.
· Robust aluminum base plate with 45°-miter setting (l/r) for various applications.
· Integrated LED for a clear view of the marking and the working area.
· Electronic control system (feedback control)
· Soft-touch housing and handle for secure guiding and good handling, also designed as impact protection.
· Safety system (HMCP = HiKOKI Multiplex circuit protection).

This text is machine translated.
