Name: HiKOKI DH3628DA SDS-Plus-Cordless hammer drill, Cordless hammer drill chisel w/o battery, w/o charger
Brand: HiKOKI
SKU: 3499985

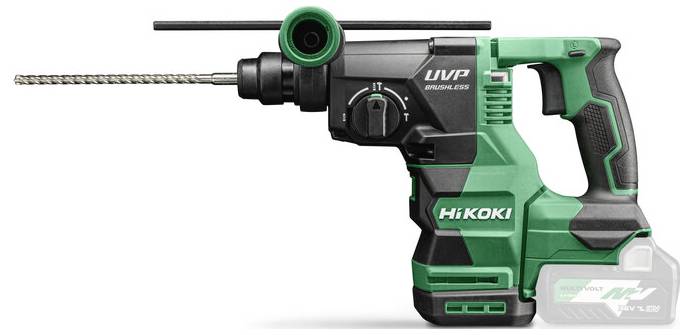

A green and black HiKOKI cordless hammer drill with a long drill bit attached, showing the side view.

A construction worker in protective gear stands on a green scissor lift at a building site, observing the progress of the structure.

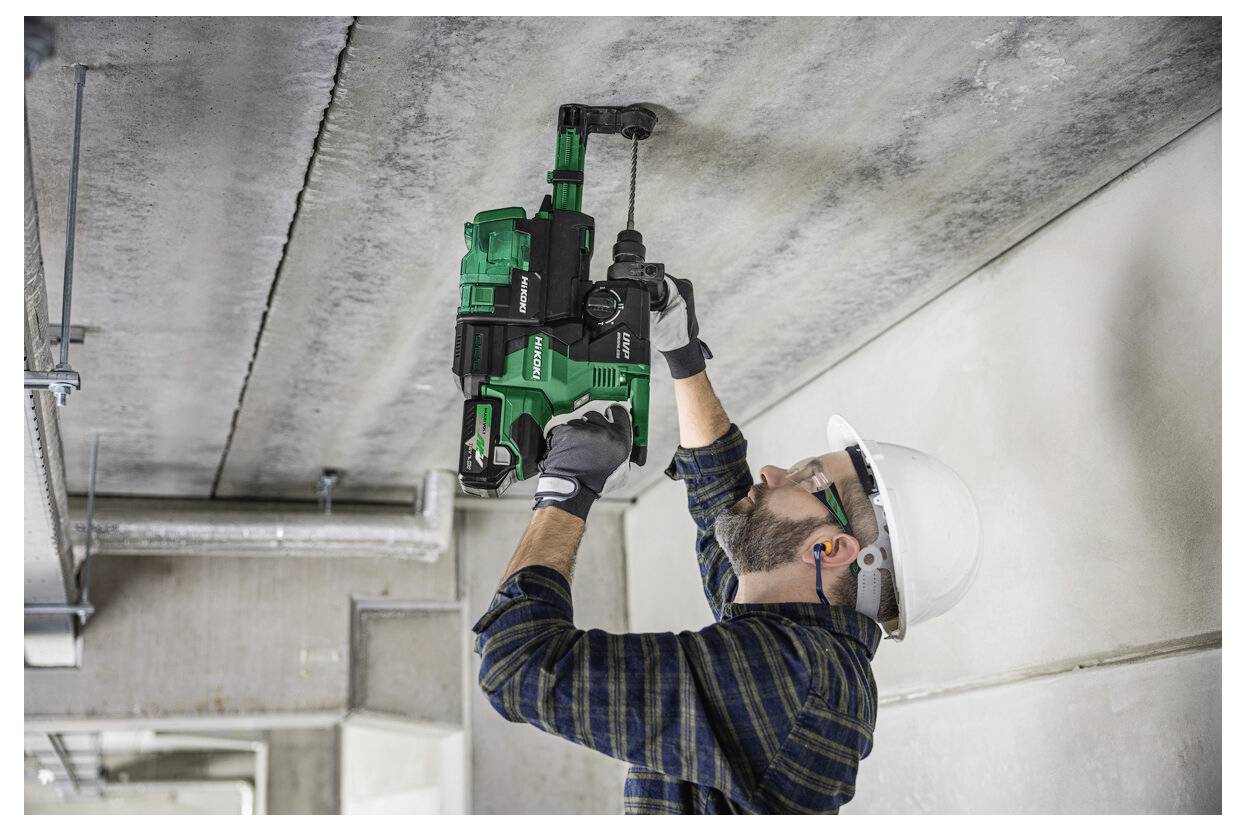

A construction worker in safety gear uses a green hammer drill on a concrete ceiling, focusing on precision and stability.

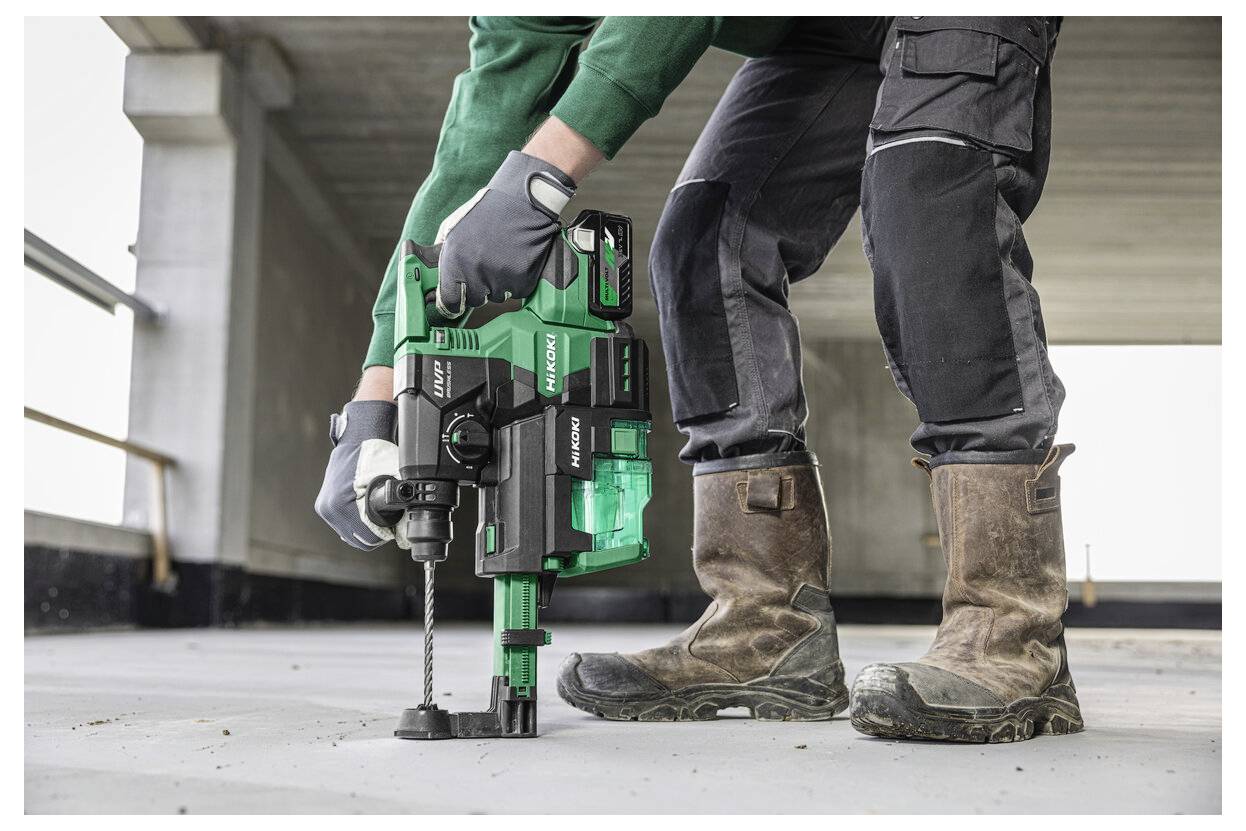

A person wearing work gloves operates a green power drill on a concrete floor, showcasing construction or renovation activity.

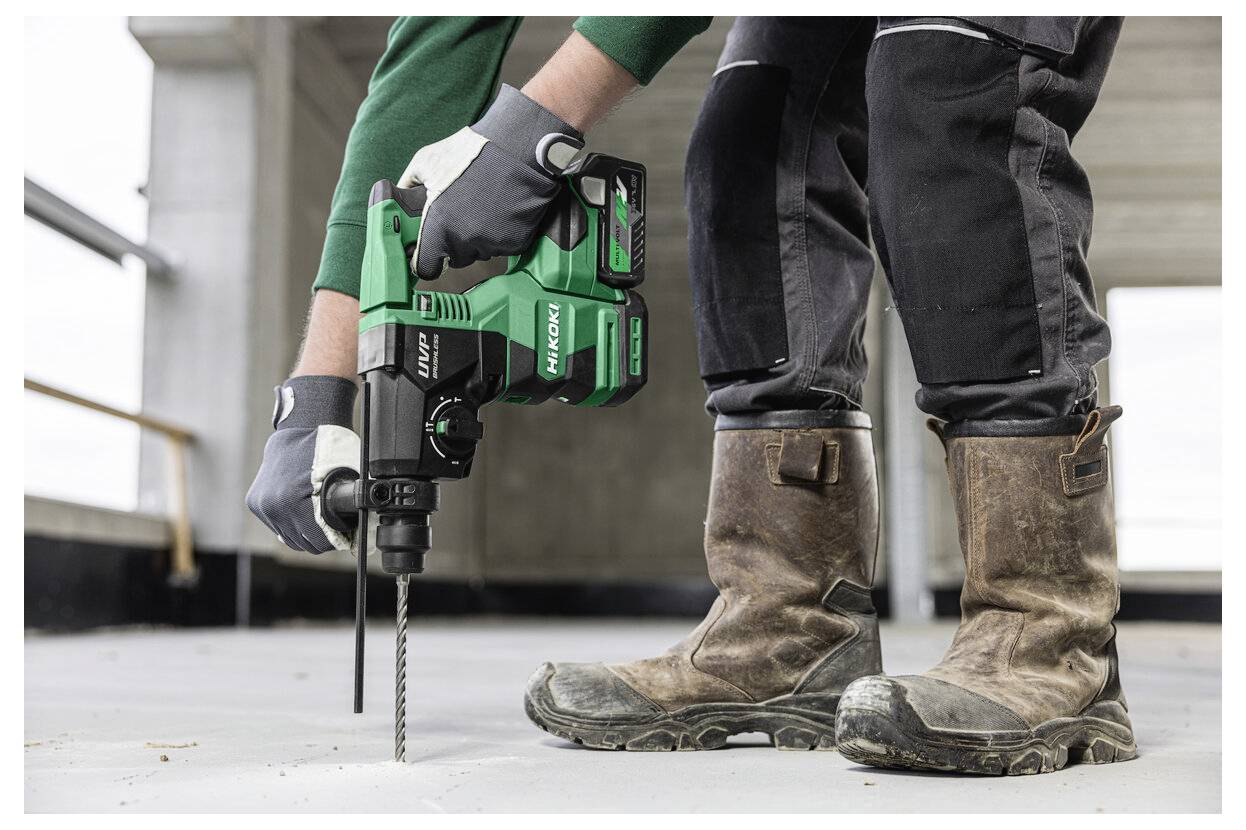

A person wearing gloves and boots uses a green power drill on a concrete floor in an unfinished building.

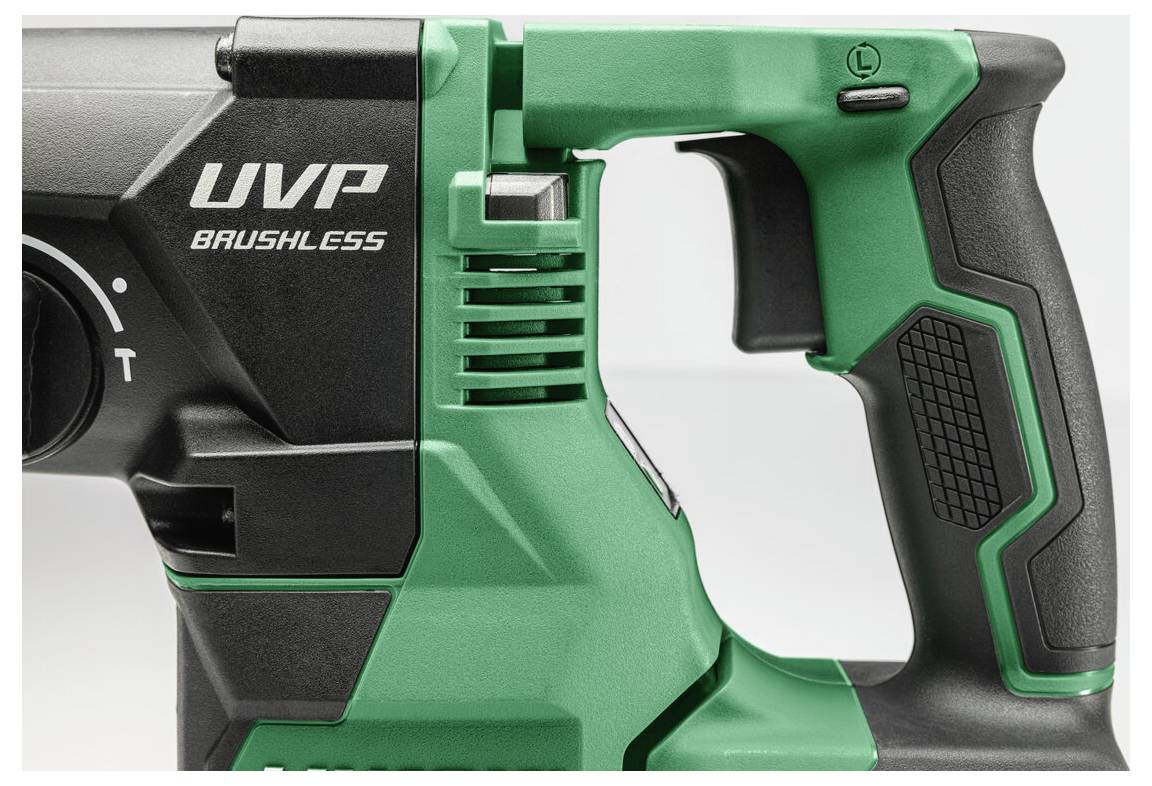

A close-up of a green and black power tool handle, labeled 'UVP Brushless,' highlighting ergonomic grip and power button details.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HiKOKI DH3628DA SDS-Plus-Cordless hammer drill, Cordless hammer drill chisel w/o battery, w/o charger

Impact (max.) 3.2 J
Max. drill bit Ø 13 mm

Technical specifications

Concrete drilling diameter 3.4 - 28 mm
Drilling diameter of steel: 13 mm
Drilling diameter of wood 32 mm
UVP (User Vibration Protection): Yes
RFC (Reactive Force Control): Yes
Slip clutch: Yes
Compatibility Dust extraction: Yes
Anti-vibration handle: Yes
LED Light: Yes
Brushless: Yes

Product type: Cordless hammer drill

No. of power packs included: 0

Operating voltage: 36 V DC

Rotational speed range: Idling speed 0-950 RPM

Blow count (max.): 4300 /min

Impact (max.): 3.2 J

Max. drill diameter: 13 mm

Tool holder: SDS-Plus

Features: w/o battery
w/o charger

Weight: 3.90 kg

Weight, information: incl. rechargeable battery

Length: 334 mm

Width: 91 mm

Height: 232 mm

Dim: (L x W x H) 334 x 91 x 232 mm

Documents & Downloads

Datasheet

Datasheet 3499985 HiKOKI DH3628DA SDS-Plus-Cordless hammer drill, Cordless hammer drill chisel w/o battery, w/o charger

User & Safety Instructions

User & Safety Instructions 3499985 HiKOKI DH3628DA SDS-Plus-Cordless hammer drill, Cordless hammer drill chisel w/o battery, w/o charger

Description

Powerful and efficient: 36V cordless hammer drill with 3.2J impact energy, Ideal for concrete, steel and wood. Brushless motor for longer life and less maintenance
Versatile options of application: Three modes: Drilling, hammer drilling and chiseling. Perfect for a variety of applications and materials. Ergonomic design for optimum comfort
Innovative technology: UVP (User Vibration Protection) and RFC (Reactive Force Control) reduce vibrations and increase safety. LED level for precise drilling
Dust-free operation: Compatible with cyclone dust extractor with HEPA filter. Keeps your work environment clean and safe. Bright LED light for improved visibility
