Name: HiKOKI SDS-Plus-Cordless hammer drill w/o battery, w/o charger
Brand: HiKOKI
SKU: 3814773

Cordless rotary hammer drill with long masonry bit, shown in side view on a white background.

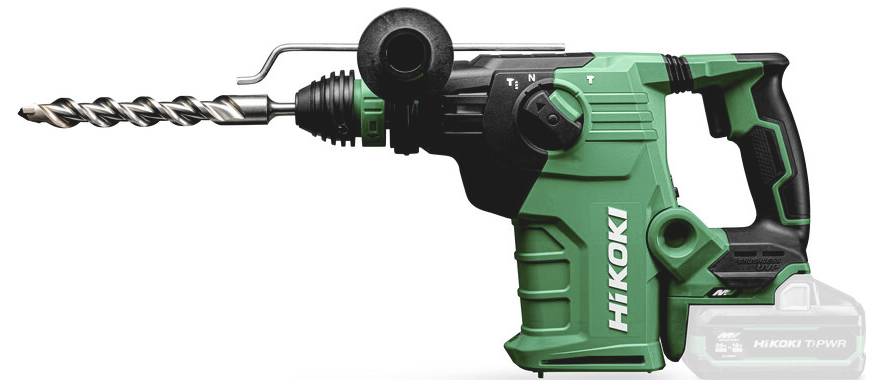

Green and black Hikoki rotary hammer drill with side handle and long drill bit, shown on a white background.

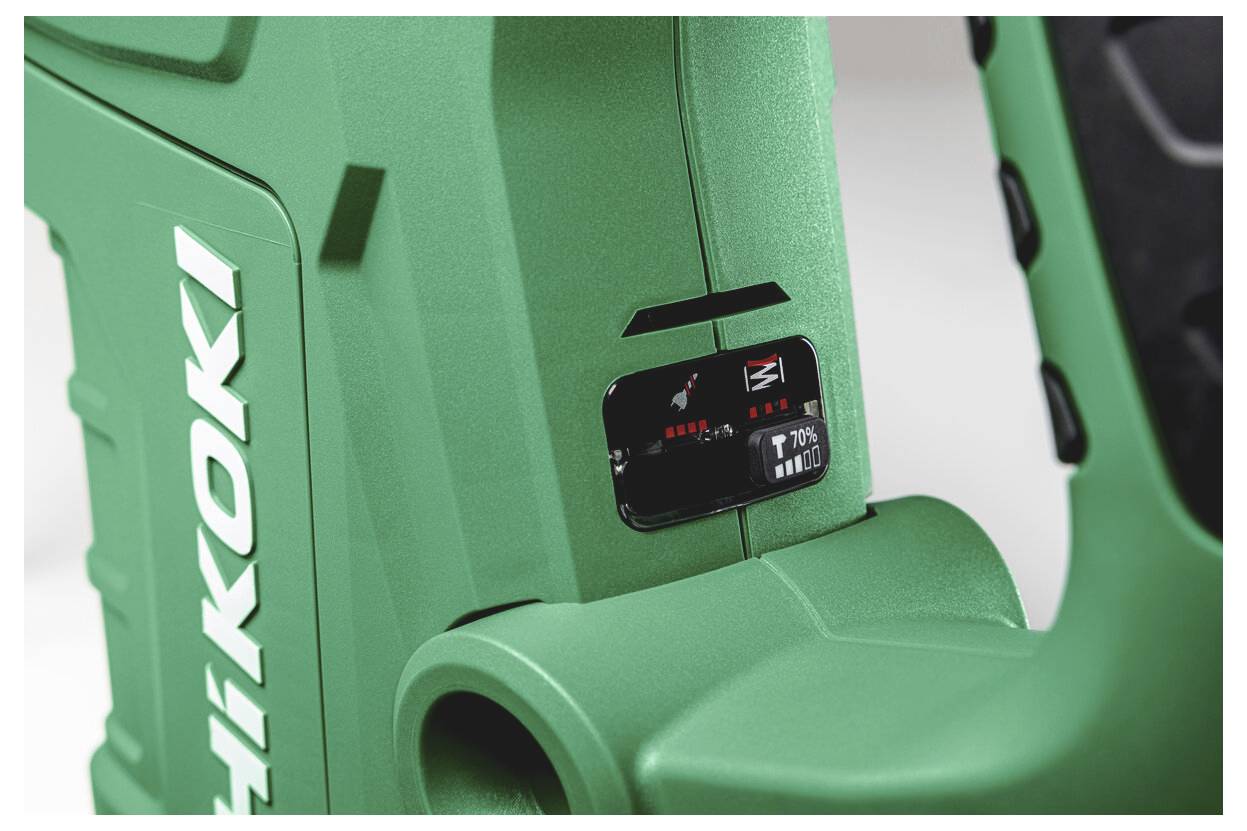

Close-up of a green HiKOKI power tool battery pack with a charge indicator showing 70 percent and one lit bar.

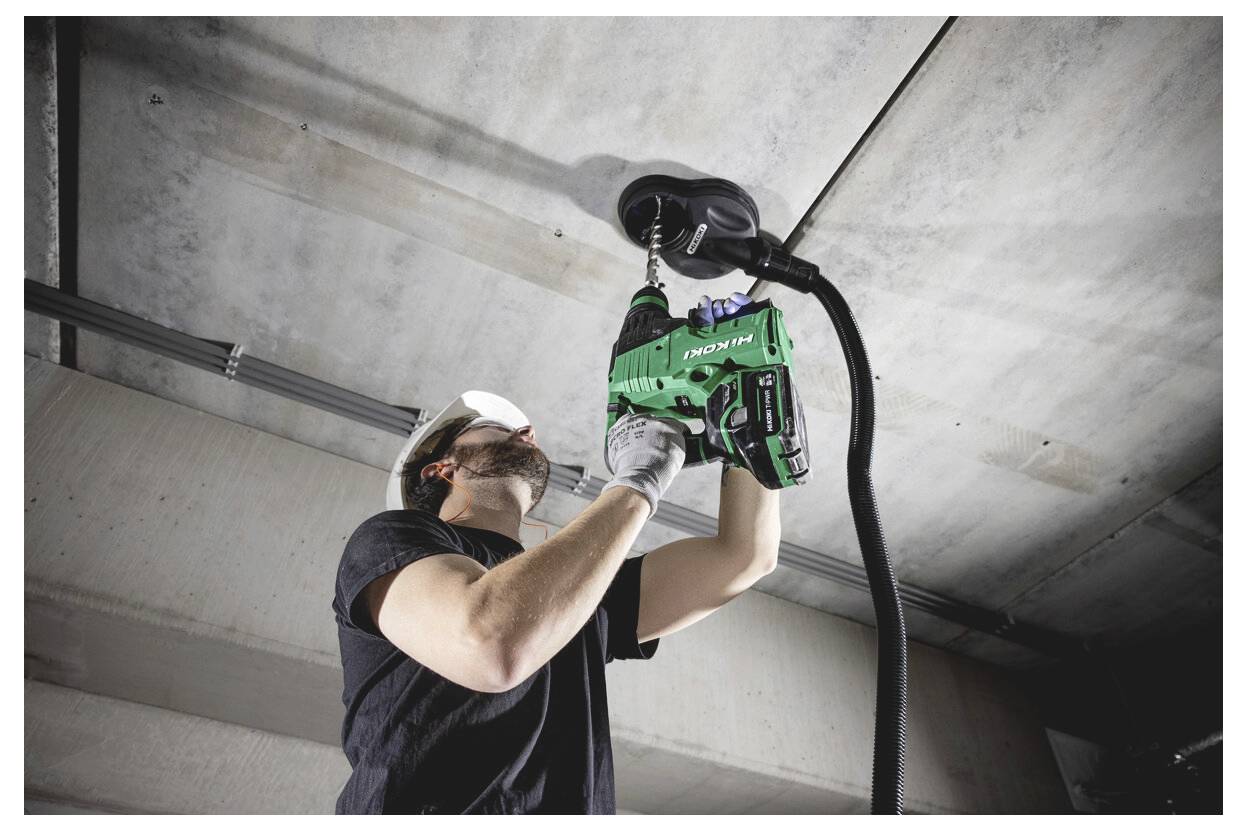

Worker using a green power drill to bore into a concrete ceiling overhead while wearing a hard hat and gloves.

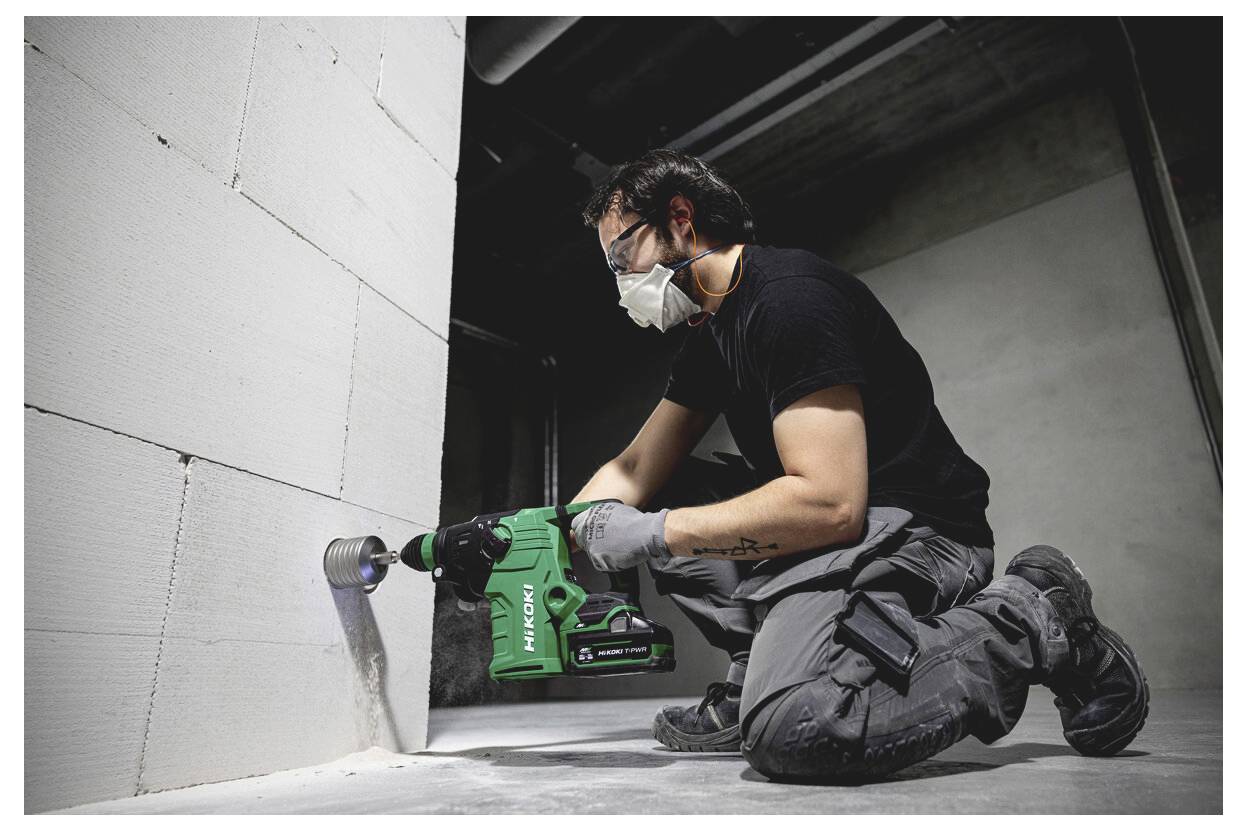

Worker kneeling and drilling into a concrete wall with a green power tool, wearing gloves, mask, and knee pads during construction work.

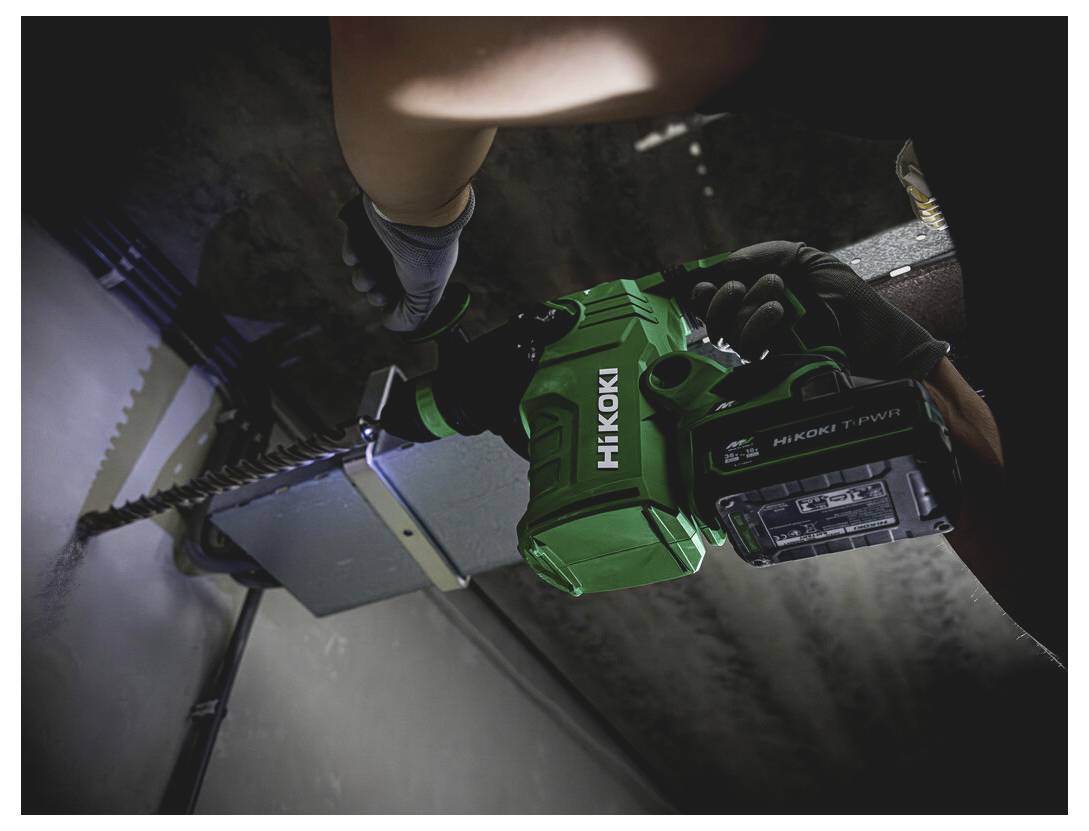

Worker using a green HIKOKI power drill to fasten a metal fixture on a ceiling, viewed from below.

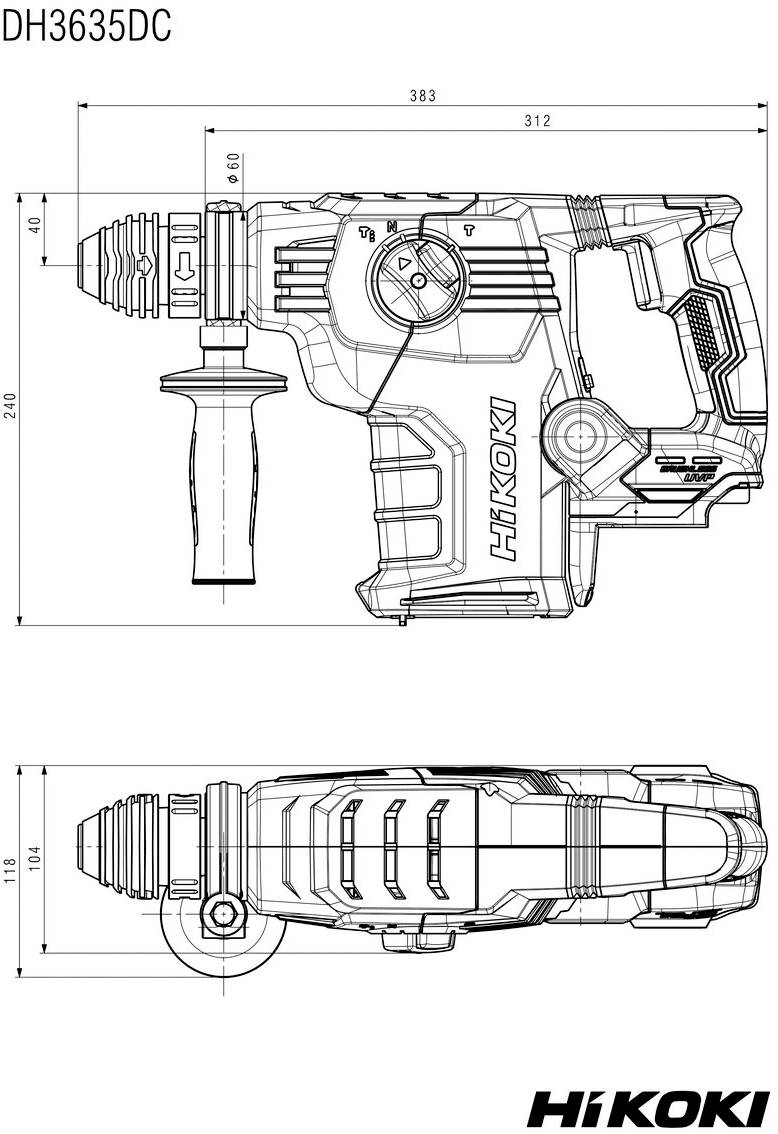

Technical line drawing of a HIKOKI rotary hammer drill labeled DH3635DC, shown in side and top views with dimensions and auxiliary handle.<br>

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HiKOKI SDS-Plus-Cordless hammer drill w/o battery, w/o charger

Impact (max.) 4.2 J
Max. drill bit Ø 30 mm

Technical specifications

Concrete drilling diameter 3.4 - 35 mm
Drilling diameter of steel: 20 mm
Drilling diameter of wood 30 mm
Application: Drilling under full load in concrete
Vibration: 13.9 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Application: Chiselling under full load
Vibration: 11 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Emission, sound pressure level 93 dB
Emission, sound power 101 dB
Emission uncertainty kPa: 5 dB
UVP (User Vibration Protection): Yes
RFC (Reactive Force Control): Yes
Right/Left rotation: Yes
Slip clutch: Yes
Anti-vibration handle: Yes
LED Light: Yes
Brushless: Yes

Product type: Cordless hammer drill

No. of power packs included: 0

Operating voltage: 36 V DC

Rotational speed range: Idling speed 0-810 RPM

Blow count (max.): 4350 /min

Impact (max.): 4.2 J

Max. drill diameter: 30 mm

Tool holder: SDS-Plus

Features: w/o battery
w/o charger

Weight: 4.4 kg

Length: 383 mm

Width: 104 mm

Height: 240 mm

Dim: (L x W x H) 383 x 104 x 240 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3814773 HiKOKI SDS-Plus-Cordless hammer drill w/o battery, w/o charger

Description

· Hammer drill with 3 functions: Hammer drilling, drilling and chiseling
· Quick change between SDS Plus mounting and quick-action drill chuck (accessories) for extended use with cylindrical drills
· Brushless motor for high performance, less wear and longer life
· Doubly safe when locking the drill: No kick-back thanks to mechanical decoupling plus sensor-controlled cut-off (Reactive Force Control RFC)
· User Vibration Protection (UVP) to minimize vibrations - for the highest user comfort
· Reduction of speed and impact energy possible for drilling and for working in soft materials
· Integrated LED for a clear view of the work surface
· Switchable to left run for easy loosening of canned drill
· Ergonomic soft-touch handle for optimal control and Hohem usage comfort
· Power by MULTI VOLT, the intelligent battery system for 18 V and 36 V electrical tools: Best performance, maximum freedom

This text is machine translated.
