Hirschmann 943 662-080 Rail mounted PSU (DIN) 5 A No. of outputs:2 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Safety of industrial controllers: CUL 508
- Security of information technology devices: CUL 60950-1
- Hazardous locations:ISA 12.12.01 Class 1 Div.2
- Shipbuilding: Germanischer Lloyd
- Nominal input voltage
100 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V
- Output voltage
24 V DC
- Input voltage (max.)
240 V
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Output type (power supply units)
Adjustable
- Phases
1
- No. of outputs
2 x
- Connection
Spring-loaded terminal
- Dim
(L x W x H) 102 x 32 x 124 mm
- Weight
440 g
- Operating temperature (max.)
-75 °C
- Operating temperature (min.)
-10 °C
- Manufacturer part #
943 662-080
- Content
1 pc(s)
- Width
32 mm
- Height
124 mm
- Length
102 mm

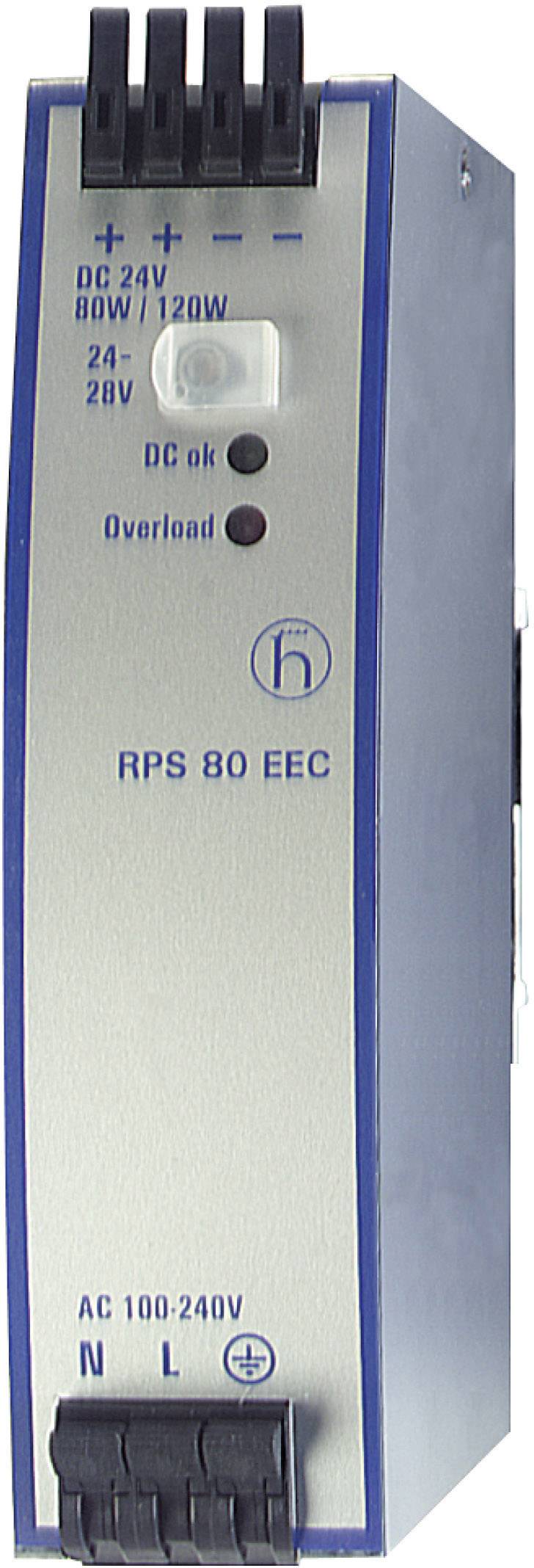

- Type
RPS 80 EEC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2148968 Hirschmann 943 662-080 Rail mounted PSU (DIN) 5 A No. of outputs:2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2148968 Hirschmann 943 662-080 Rail mounted PSU (DIN) 5 A No. of outputs:2 x Content 1 pc(s)
Description
Hirschmann offers a wide range of AC and DC power supplies. Devices with AC input voltage ranges from 100 to 240 V AC and 100 to 375 V DC are available. Units are also available that transform to either 24 VDC or 48 VDC. Two IP67 models are available for applications where water may be present. A comfortable DIN rail mounting is possible. The Hirschmann power supplies have been tested for electromagnetic interference and safety. You have all the relevant approvals. The products provide a reliable power source for sensitive loads in many industrial automation environments where equipment is exposed to harsh conditions
This text is machine translated.
This text is machine translated.
Scope of delivery
- Rail power supply, description and operating instructions
- This text is machine translated.
