Hobbywing Hobbywing Regler Ezrun MAX5 V3 Model car brushless speed control Load (Amp max.): 200 A
EAN:
Part number:
Item no:
Technical specifications
- Application area: Vehicles
- Engine type: Brushless sensorless
- Programmability: LCD Program Box
- Product type
Model car brushless speed control
- Dim
(L x W x H) 93.35 x 58.12 x 47.81 mm
- Weight
342 g
- BEC data
6 A
- Load (max.)
200 A
- Permanent current
200 A
- Manufacturer part #
HW30104000
- No. of LiPo cells
3-8S
9-24 Zellen
- Model
Hobbywing regulator Ezrun MAX5 V3
- Suitable for
1:5 scale models
- Width
58.12 mm
- Height
47.81 mm
- Length
93.35 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2277271 Hobbywing Hobbywing Regler Ezrun MAX5 V3 Model car brushless speed control Load (Amp max.): 200 A
Description

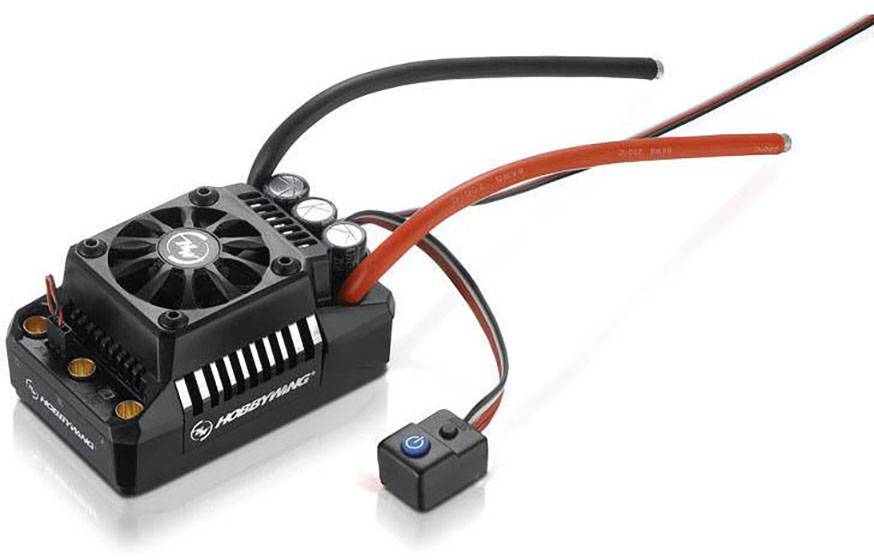

Hobbywing regulator Ezrun MAX5 V3
Brushless controller for 1:5 cars
Compatible with sensorless brushless motors
Protected against water and dust ingress
Powerful BEC with 6 A power
Can be used with 3-8S LiPo and 9-24 cells NiMH
Hobbywing's Ezrun MAX5 200A is a brushless controller for RC cars on a scale of 1:5. The controller can be permanently loaded with up to 200 A and can withstand short-term peak currents of up to 1300 A. It is suitable for operation with LiPo batteries with three to eight cells, as well as for use with NiMH batteries that have nine to 24 cells. For power supply of the receiver and HV servos, the controller is equipped with a BEC which supplies up to 6 A at a voltage of 6 or 7.2 V.
Great flexibility & versatility
The controller has a very high and stable output power, so that you can perform a variety of moves with your model without any problems. Whether an aggressive start or wheelie, a 720 degree flip, wide jumps or even high-speed tests, the regulator masters with ease. In addition, the programming of various parameters is possible, so that your model reacts as sensitively as possible in the gas/brake curve.
For any weather
The excellent sealing against water and dust makes this controller a weapon in all weather conditions. No matter whether extremely dusty slopes, wet track, snow, puddles or gravel - with the Ezrun MAX5 it goes on and on.
Electronic switch
The electronic switch used has a service life of more than 50,000 switching operations, is completely water and dust-proof and shock-proof. This means that problems such as rusty contact points or moisture in the switch are a thing of the past. Also, after hard landings or accidents, it cannot switch itself off automatically, like a conventional mechanical switch.
This text is machine translated.
