Homematic IP Access Point HmIP-HAP2+HmIP-COR akkubetrieben

1/31
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

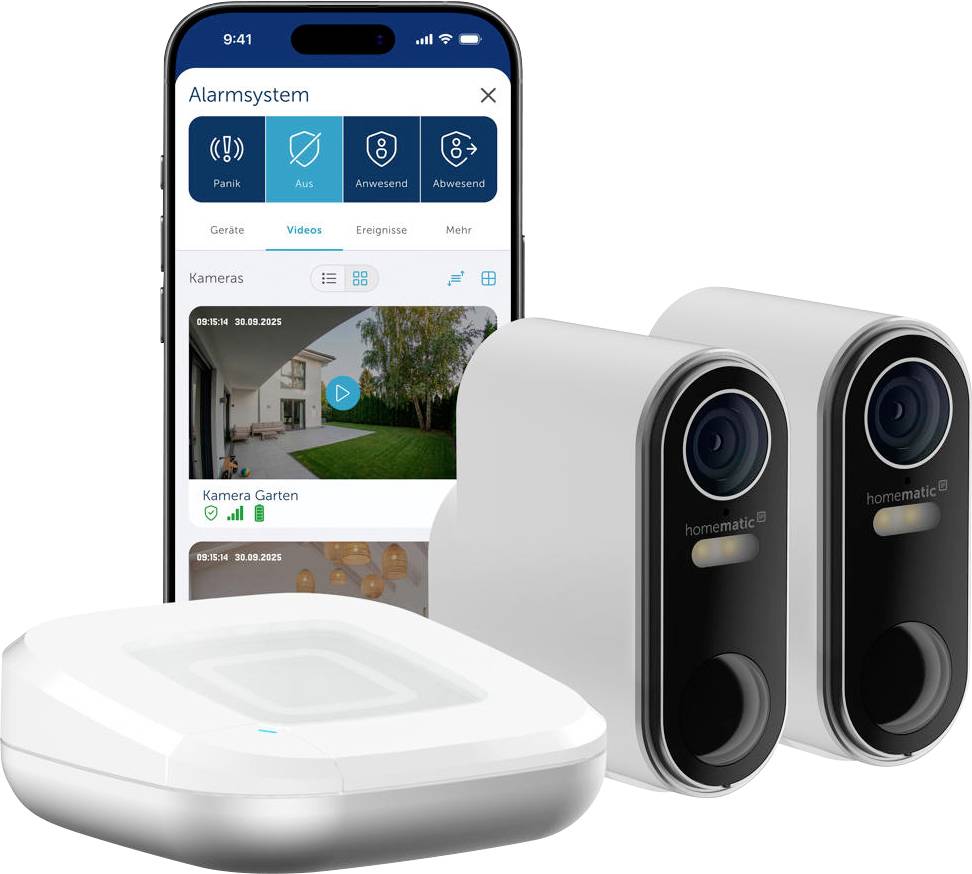

Homematic IP starter set battery camera

  • Homematic IP wireless access Point 2
  • 1. Smart headquarters for the Homematic IP system.
  • 2. Easy setup and operation with the free Homematic IP APP.
  • 3. Secure communication without registration – with server location in Germany.
  • 4. Convenient voice control with Amazon Alexa and Google assistant.
  • 5. Compact design for flexible positioning
  • Homematic IP Smart home wireless battery outdoor camera
  • Compact outdoor camera with up to 6 months battery time for flexible monitoring around your home
  • High-resolution video image with 3 MP, automatic day and night mode as well as LED-light for colored recordings in darkness
  • Flexible positioning through magnetic holder or fixed screw mounting
  • Intelligent motion and personal recognition with immediate push notification via APP

Technical specifications

Product type

Access Point

Series

Homematic IP

Transfer Standard (Smart Home)

Manufacturer-specific

Frequency

868 MHz

Hub

Required

Data exchange

Bidirectional (bi)

Documents & Downloads

Datasheet

Datasheet 3800043 Homematic IP Access Point HmIP-HAP2+HmIP-COR akkubetrieben

User & Safety Instructions

User & Safety Instructions 3800043 Homematic IP Access Point HmIP-HAP2+HmIP-COR akkubetrieben

Description


Homematic IP wireless access Point 2
Simply start in the Smart home

With the Homematic IP access Point 2, you can enter the Smart home very comfortably. Through the intuitive Homematic IP APP all the devices of the system can be set up, controlled and extended centrally. The communication is done securely via the Homematic IP cloud.

Installation
The Access Point is simply connected to the router via a network cable and supplied with power via the accompanying plug-in power supply. It can either be placed horizontally on a level surface or attached to the wall to save space - the suitable mounting material is already included in the delivery. The commissioning takes place conveniently in a few steps via the Homematic IP APP: Just connect the device, scan the QR code, and the setup starts automatically.

Setting
Set up your Smart home in no time at all with the free Homematic IP APP. All other Homematic IP products are intuitively trained and can be configured individually. Up to 15 users can access a single system. Even several installations, such as in the holiday home, can be controlled comfortably via the APP. The Homematic IP wired access Point also enables integration of Homematic IP wired components for even greater flexibility.

Control
Once setup, you always have full control over the Homematic IP APP. Moreover, the Smart home system can be easily operated via voice command via Amazon Alexa or Google assistant. The intuitive user interface of the APP makes possible a simple control, individual adjustments and the fast access to all functions - wherever you are.

Smart highlight
With reliable encryption, German server location and use without registration, the ACCESS Point fulfills the highest data protection and security standards. The intelligent radio protocol works in the especially interference-free frequency range and guarantees a fast and stable communication between devices, APP and cloud.

Tip
For large living areas or several floors the range of the system can be easily extended by the integration of another access point. In this way, your Smart home grows completely flexible with your needs.

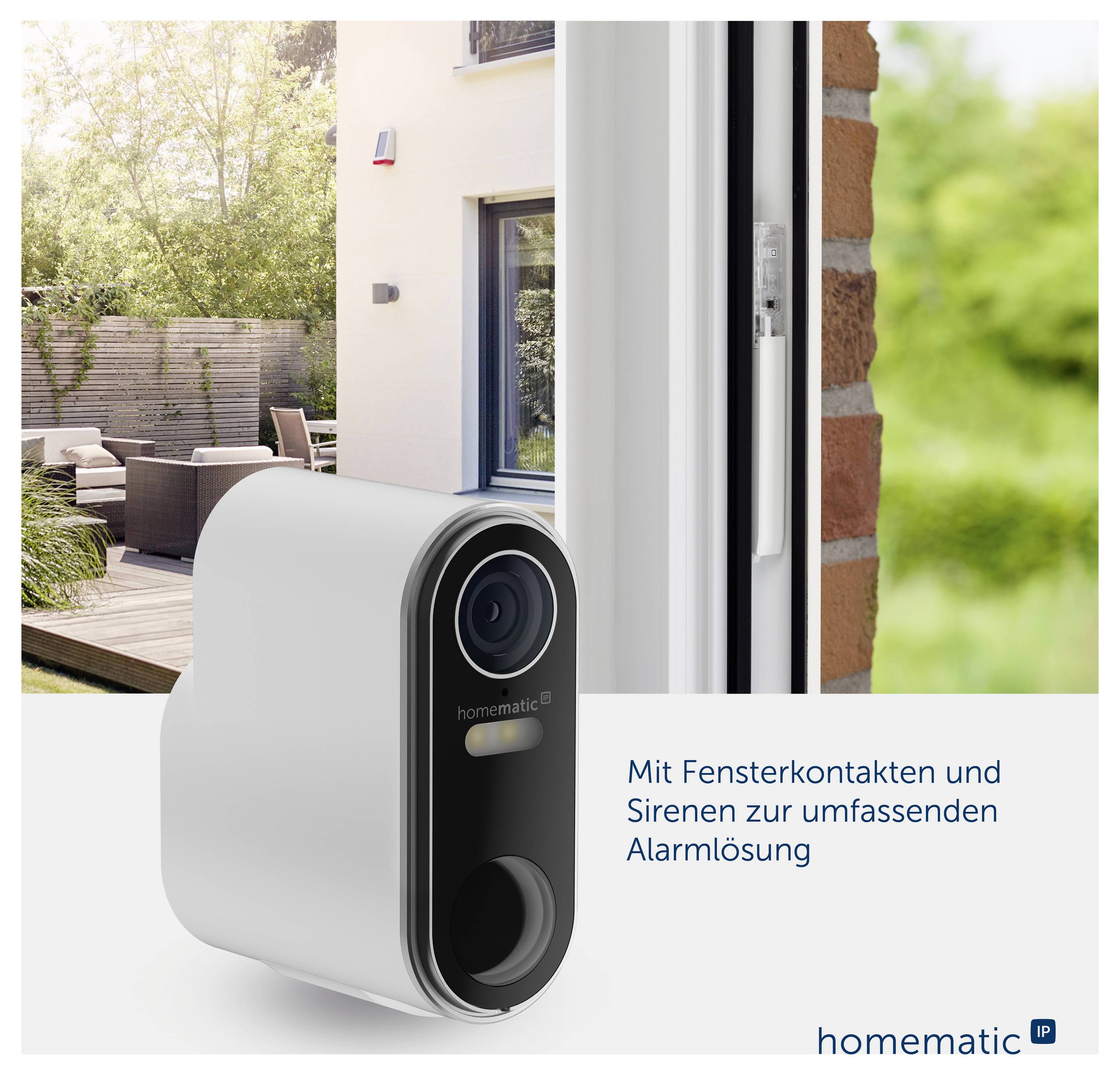

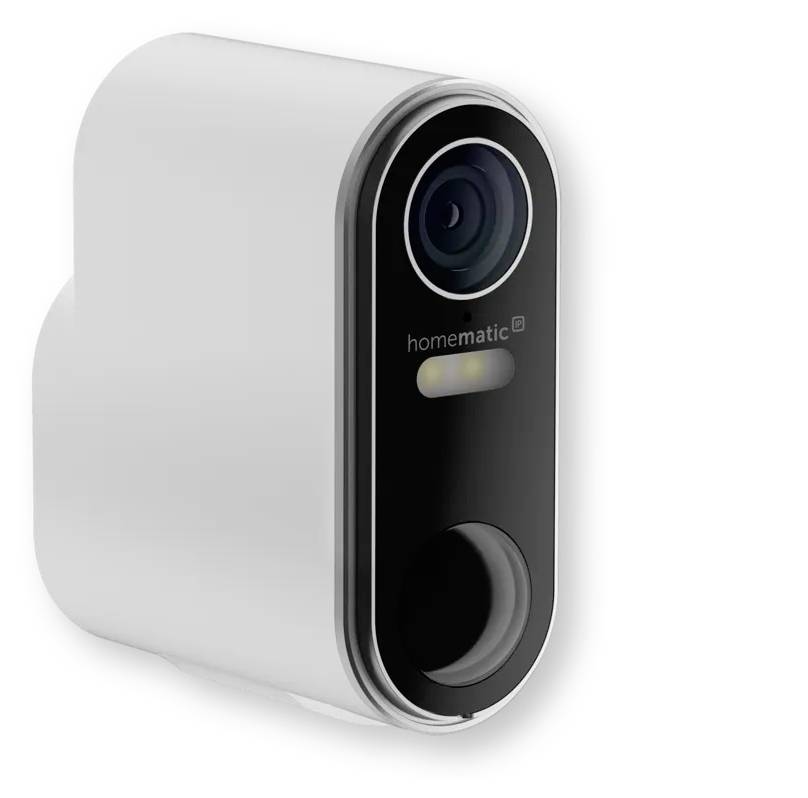

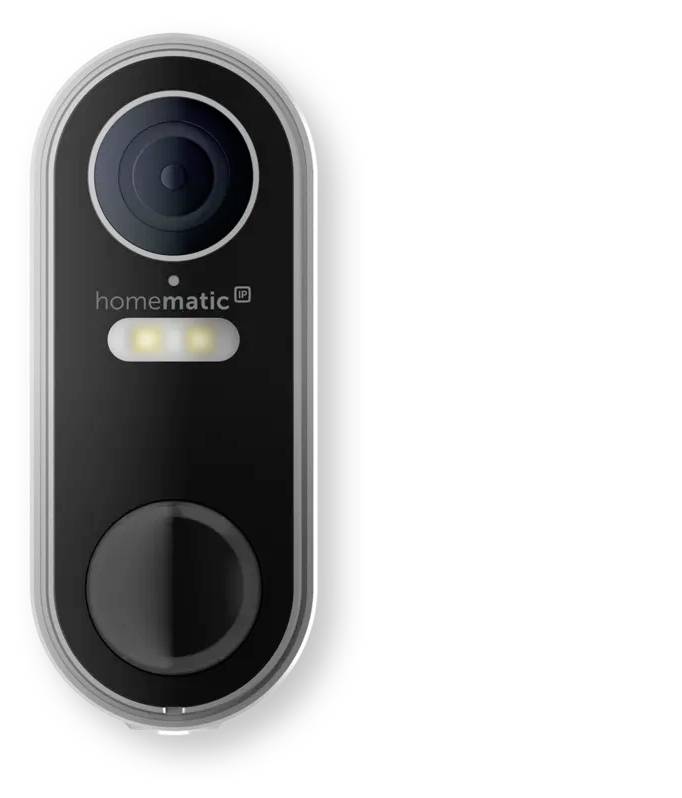

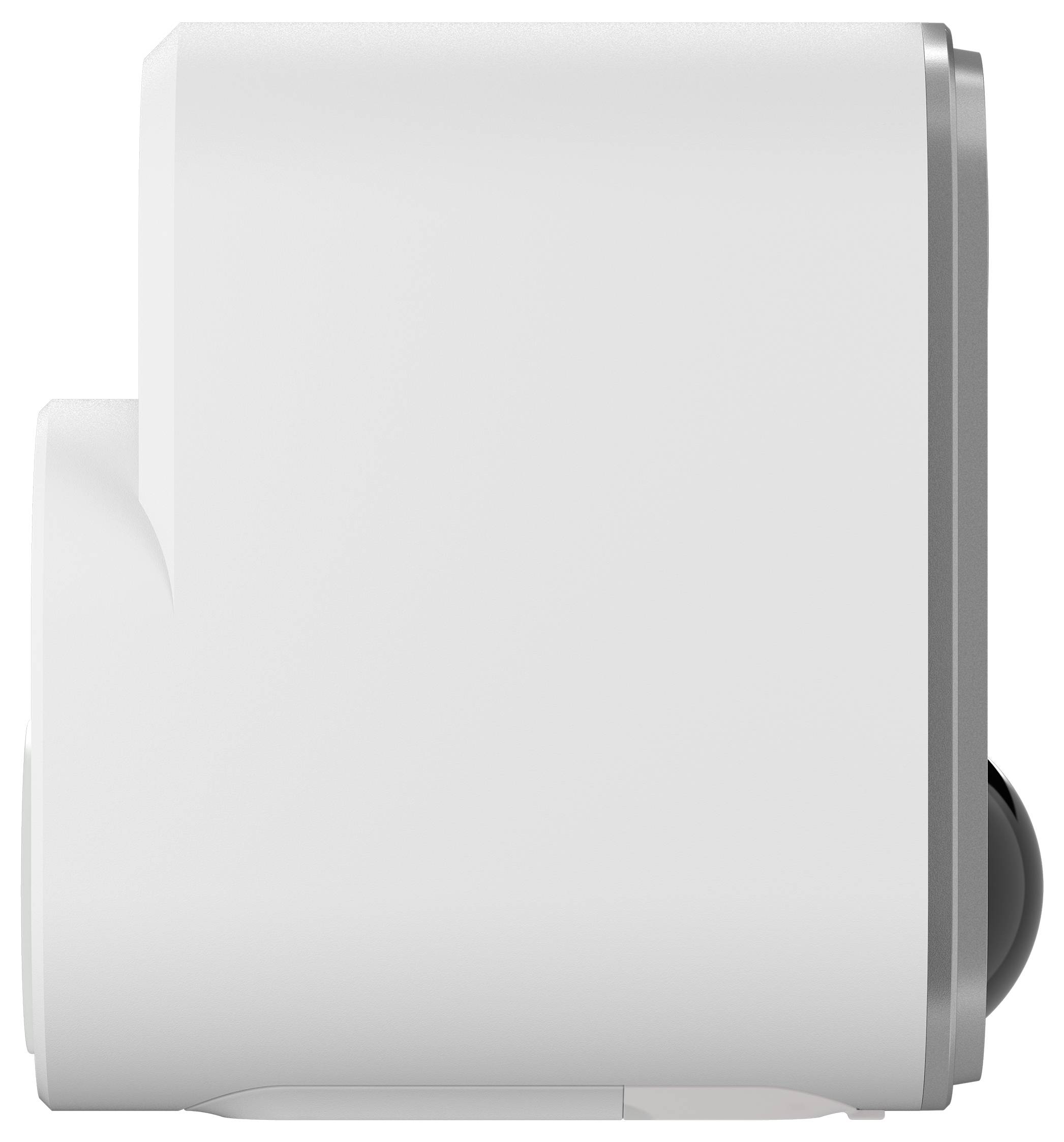

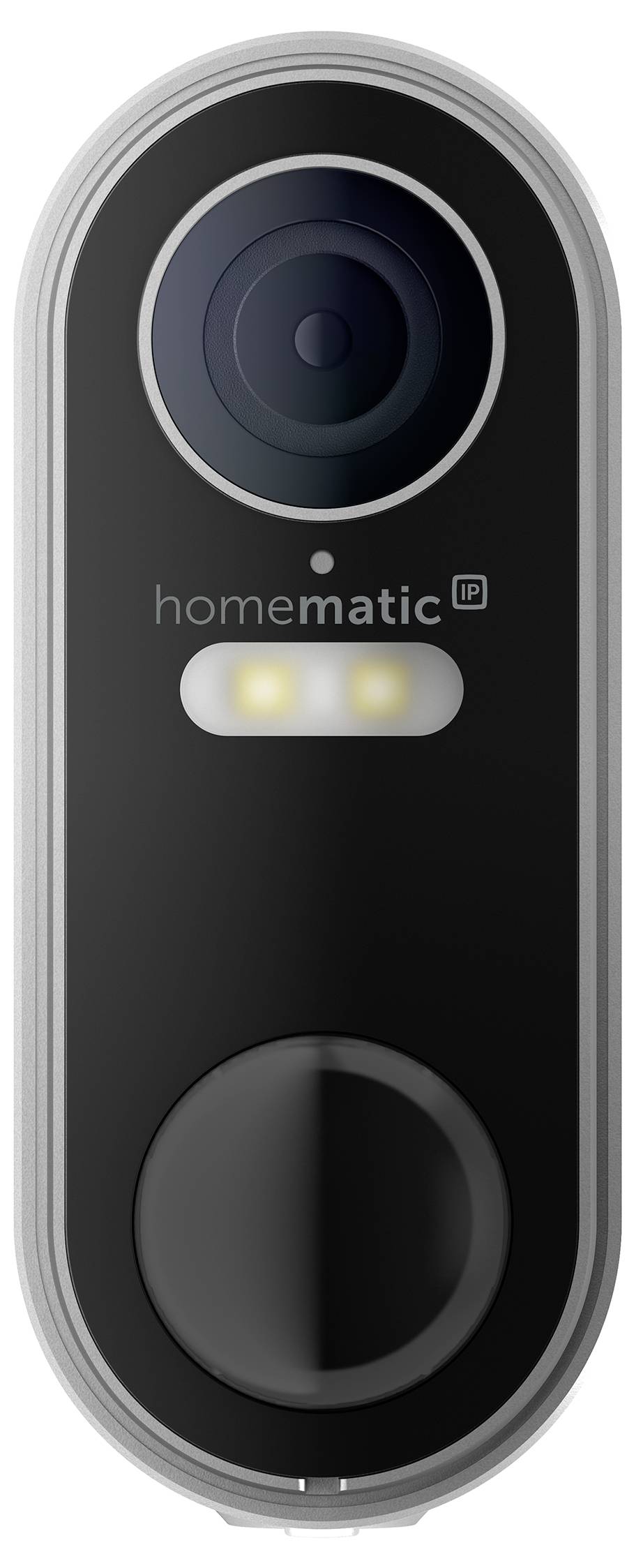

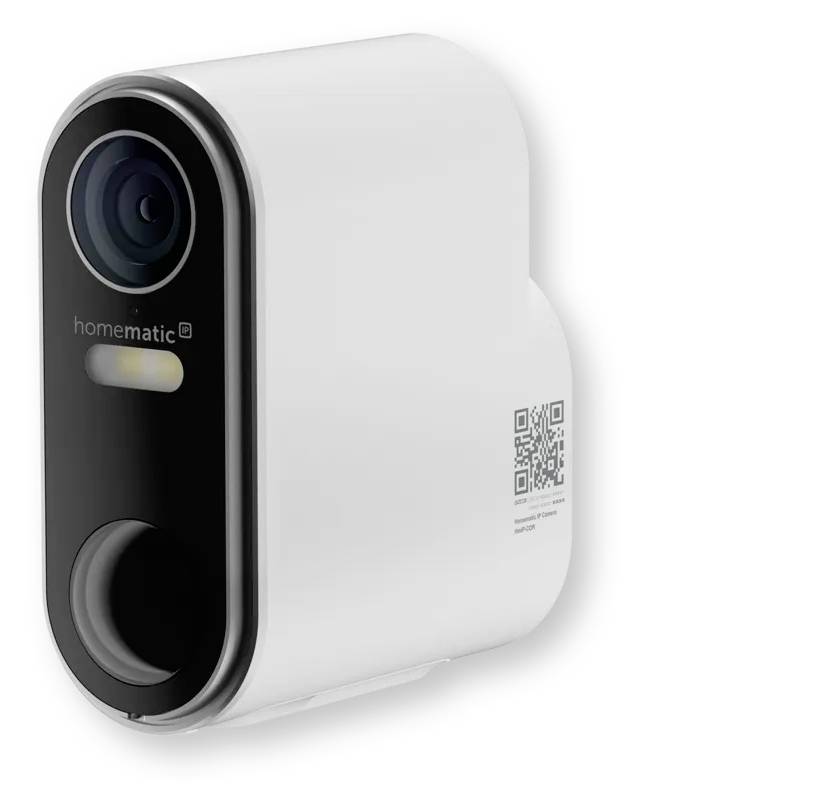

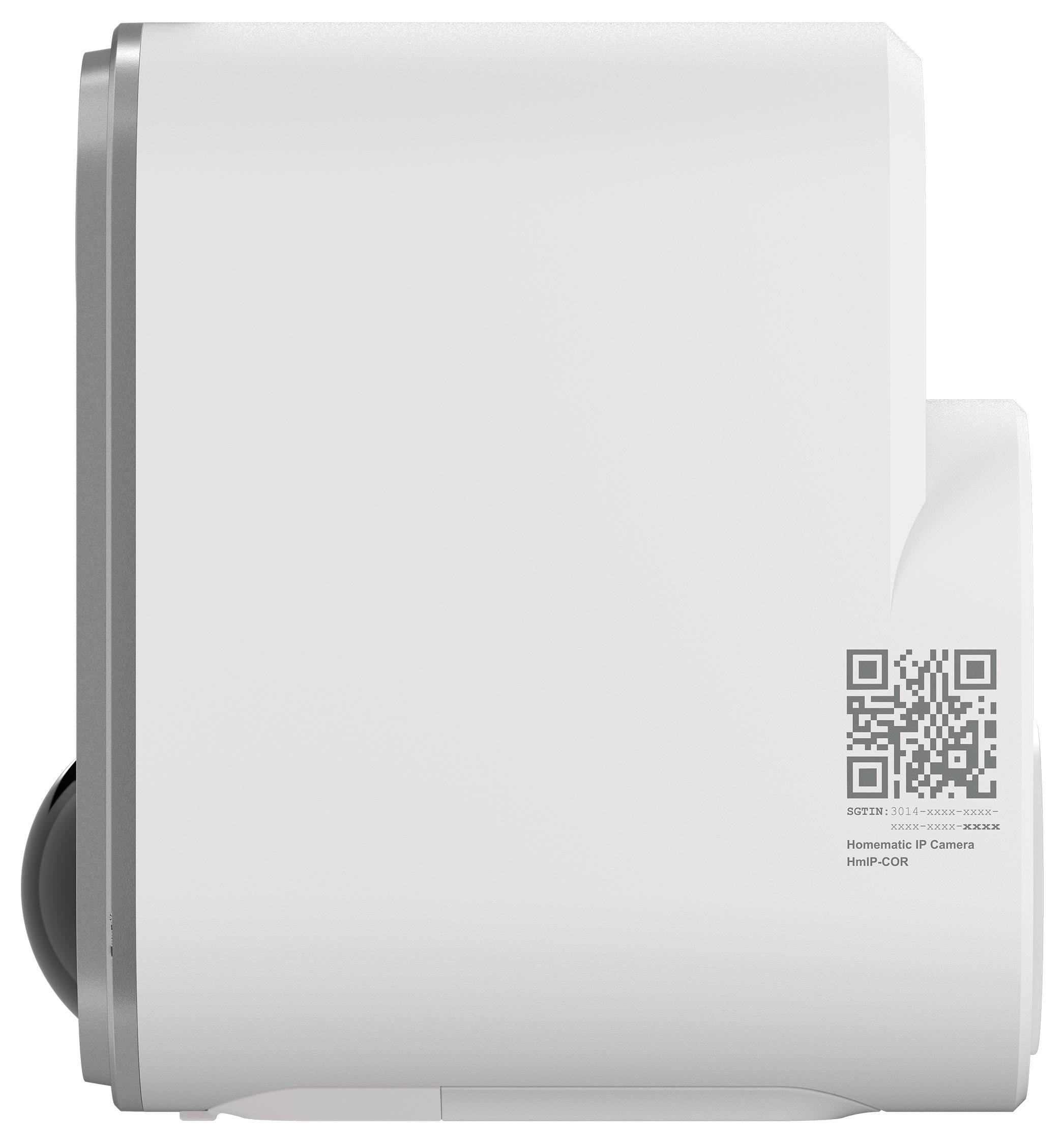

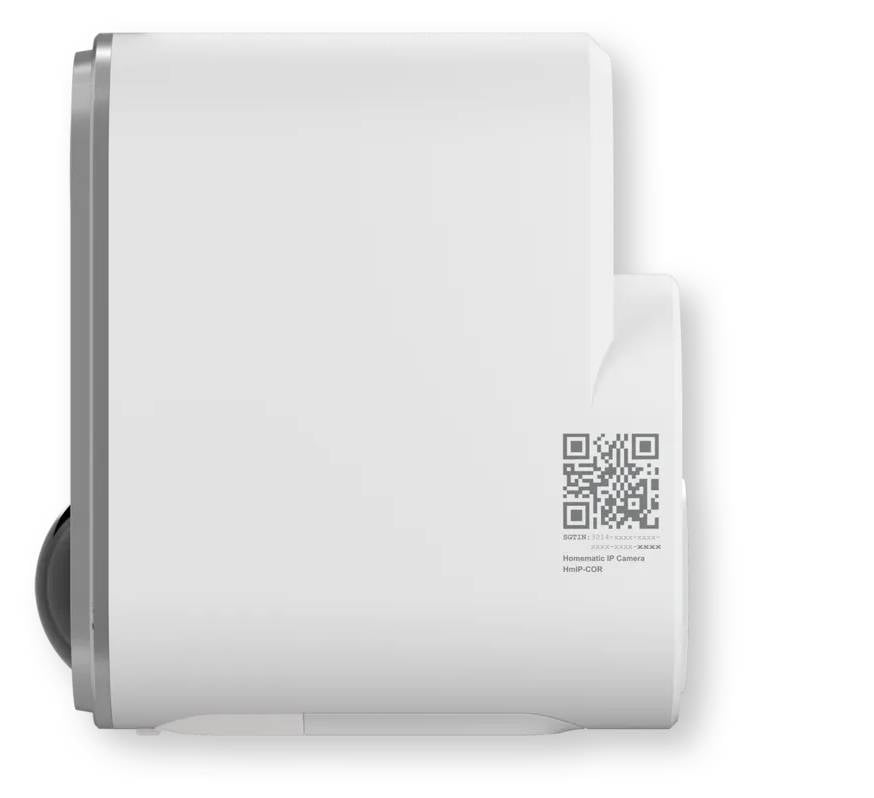

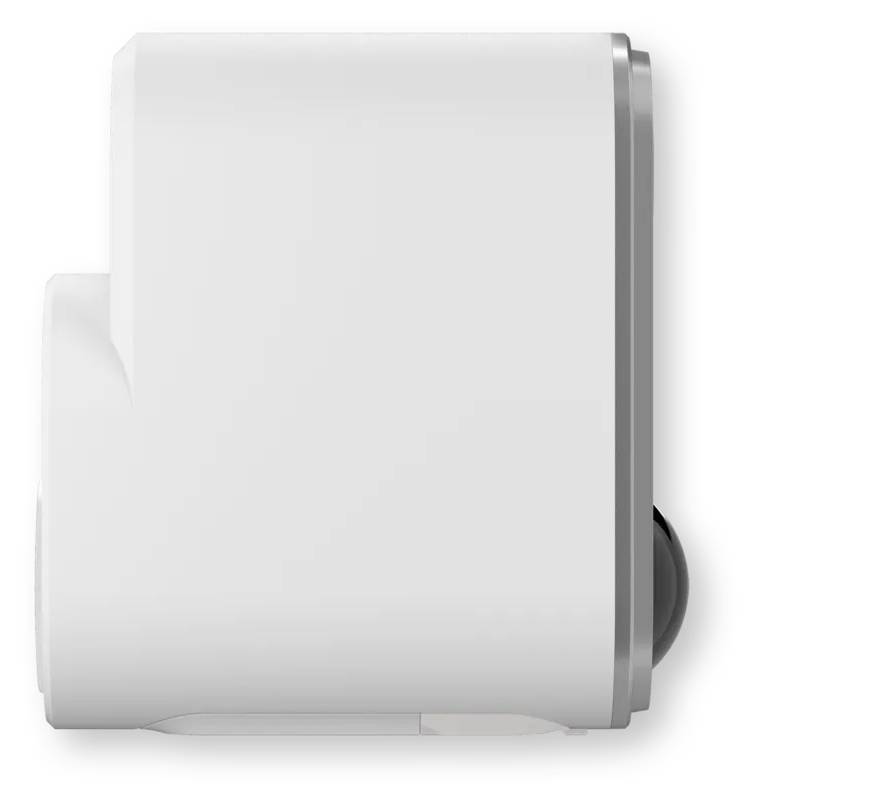

Homematic IP Smart home wireless battery outdoor camera
Flexibly monitor outdoor areas

With the Homematic IP outdoor battery camera you can monitor your home reliably and especially flexibly – entirely without a fixed power supply. Thanks to battery mode and compact design, the camera can be placed almost anywhere around the house and garden and provides for a safe feeling in the daily routine with the APP at all times.

Installation

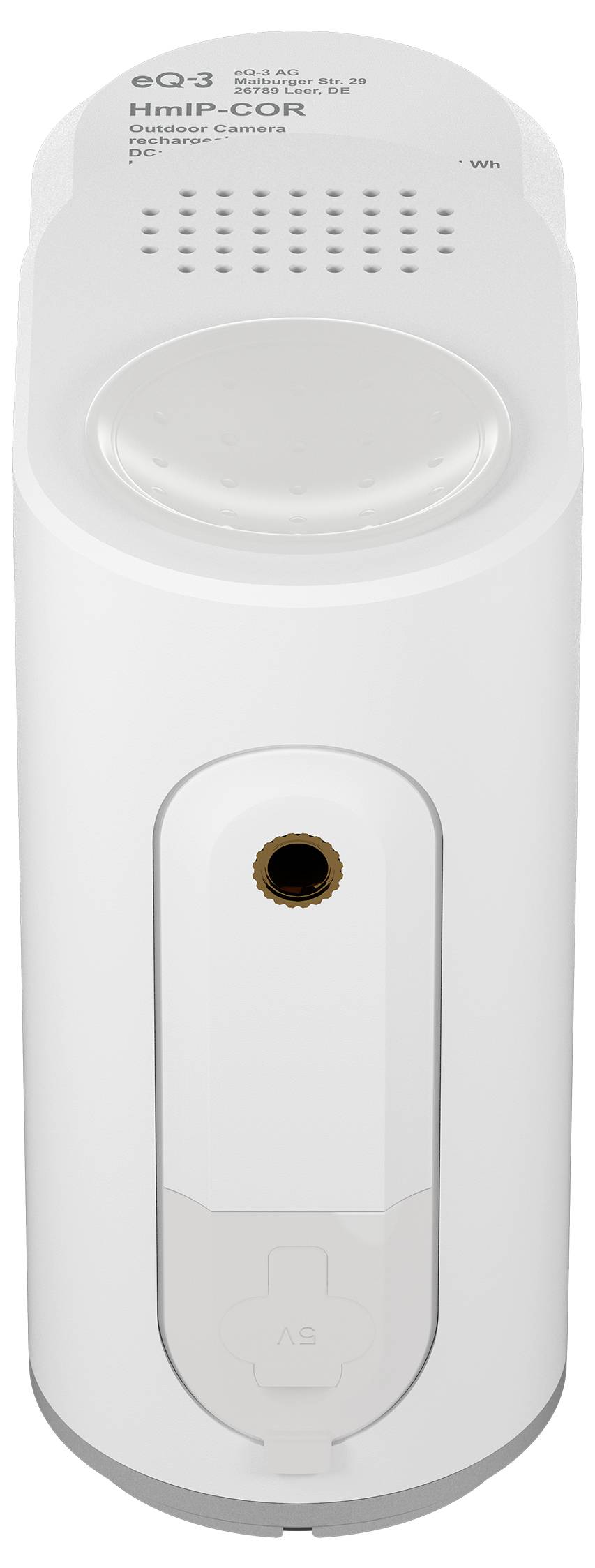

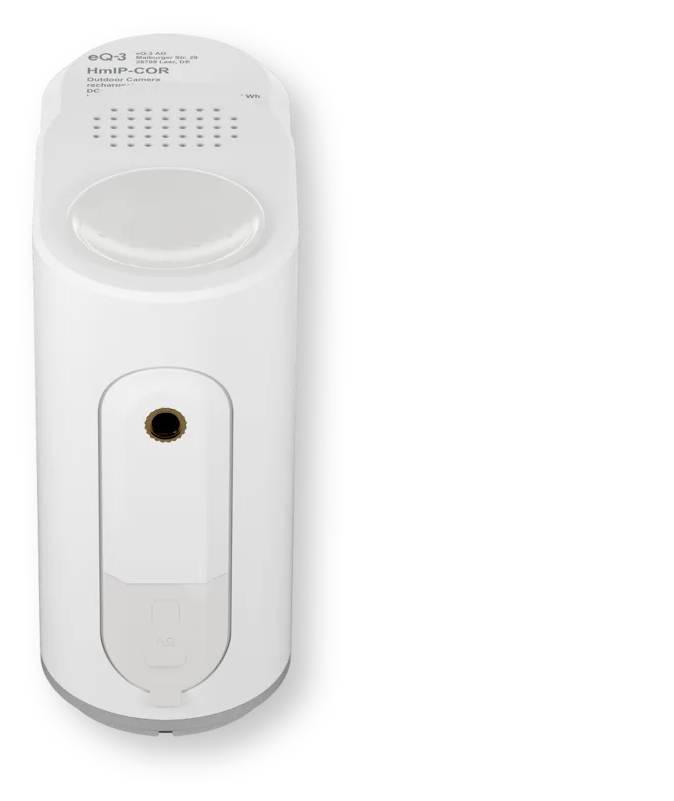

The battery outdoor camera is mounted in the outdoor area flexibly independent of a fixed power supply. The weatherproof casing enables reliable operation in different weather conditions – perfect for use on house fronts, in the entrances or in the garden. The camera can be aligned individually and can be alternatively magnetically attached or screwed tight. Setup is comfortably done via the Homematic IP APP together with a 2.4-GHz wireless network.

Setting
The Homematic IP APP allows you to adapt the battery outdoor camera flexibly to your individual needs. Conveniently set the sensitivity, alarm intervals or recording time and use convenient functions like AI-enabled person recognition or automatic alarm messages. In addition, the camera automatically activates an integrated LED light upon detected movement, so that colorful recordings are possible even when it is dark.

Monitoring
The camera delivers highly detailed video recordings with 3 megapixels and enables the access at any time to live video and audio streams via the Homematic IP APP. Thanks to the automatic day and night mode, clear and well-readable recordings are made even under poor light conditions. Intelligent motion and person detection reliably identifies relevant events and significantly reduces false alarms. Recordings can be flexibly stored on a microSD card or as short event clips for 7 days in the cloud.

Smart highlight
The powerful battery enables a standby runtime of up to 6 months and thus provides maximum flexibility in placing around your home. In addition, the camera automatically adjusts the picture alignment, so that the recordings are displayed correctly at any time, regardless of the mounting position.

The battery outdoor camera provides a reliable video monitoring in outdoor area. Live video and audio streams can be accessed at any time via the Homematic IP APP. The intelligent motion detection automatically captures relevant events and reports them by push notification. Thanks to the battery mode, a flexible mounting in the outdoor area is possible.

• Flexible outdoor monitoring thanks to battery
• Live video and audio available via APP
• Intelligent motion detection with push messages
• Clear shots thanks to day & night mode
• Local AI identification of persons

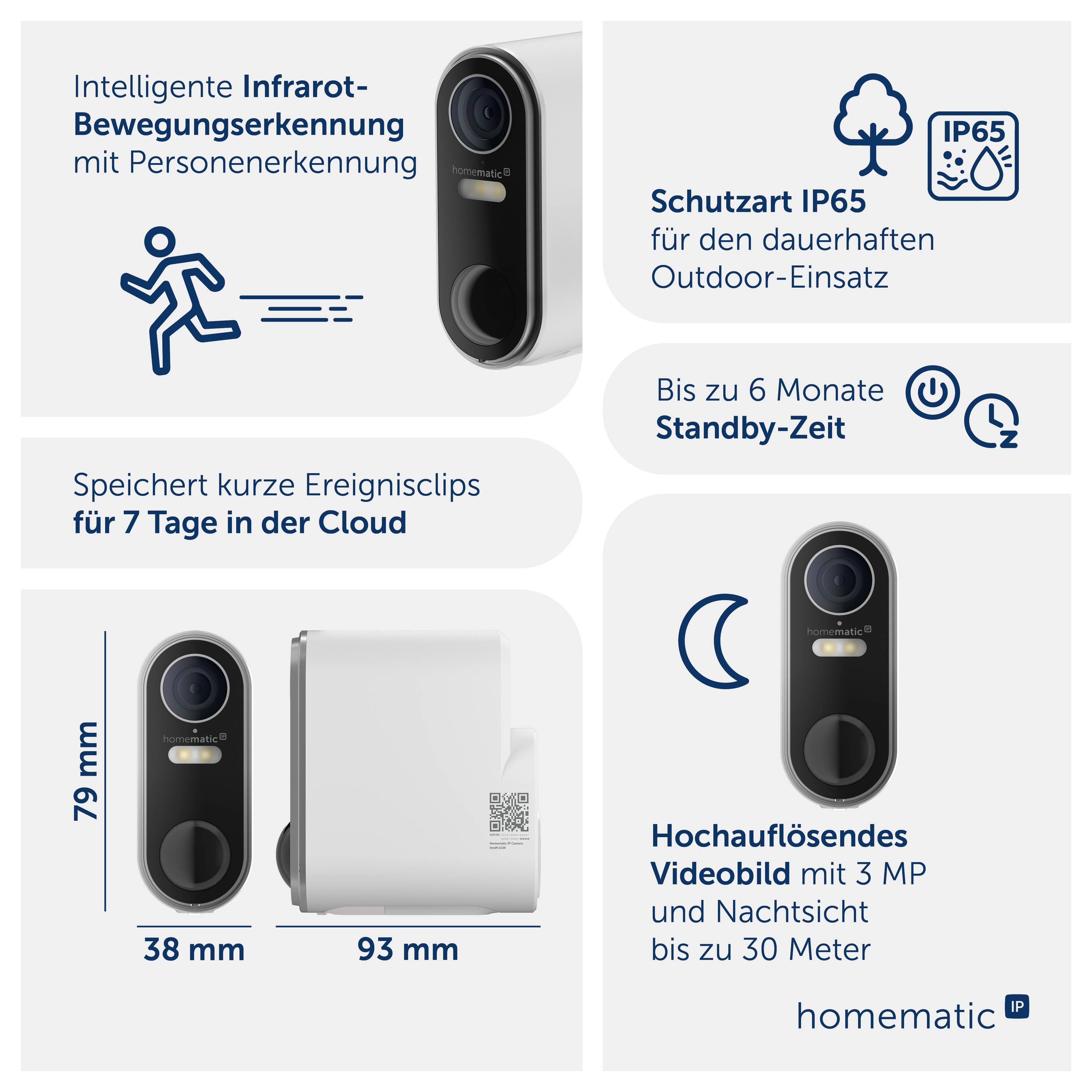

RELIABLE OUTDOOR MONITORING
The Homematic IP battery-powered outdoor camera provides reliable video monitoring outdoors and can be placed flexibly thanks to battery operation - completely without a power connection.

MIRROR VIDEOS
The camera automatically adjusts the image orientation so that the videos are displayed correctly, regardless of the mounting position.

RELIABLE MOVEMENT DETECTION BY PIR-SENSOR FOR IMMEDIATE NOTIFICATION
The integrated motion detection monitors the outdoor area continuously and immediately reports detected activities by push notification. This gives users real-time security information and allows them to respond immediately.

FLEXIBLE RECORDING OPTIONS FOR DIFFERENT PURPOSES
The camera can record onto an SD card around the clock or store short event clips in the cloud. Users can choose between permanent or event-based storage. Both versions can be called up directly in the APP so that important recordings are available at all times.

POWERFUL IMAGE QUALITY DAY AND NIGHT
The battery-powered outdoor camera provides clear and well readable recordings even with weak or missing illumination. Automatic switching between day and night modes ensures that the image quality remains constantly high at any time of the day – without the use of additional light sources. This ensures permanent and reliable monitoring.

KI ANALYSIS FOR INDIVIDUAL APPLICATIONS
Local AI detection detects people directly in the device to reliably identify relevant events and reduce false alarms.




This text is machine translated.

Features

  • Homematic IP wireless access Point 2
  • The access Point provides for a comfortable setup and control
  • Of the Homematic IP system via intuitive APP and connects all
  • Homematic IP devices via the toll-free cloud. SIMPLE AND INTUITIVE SETUP
  • The Access Point is simply powered
  • And connected to a standard router.
  • Finished!
  • The learning of Homematic IP devices enables
  • The individual construction of a comprehensive
  • Smart home system.
  • The devices are set up and controlled
  • Then simply via free APP
  • Intuitive user interface.
  • COMFORTABLE CONTROL WHILE TRAVELING
  • The APP enables automatically via the cloud
  • You can access your anytime, even when you're on the move
  • Smart home system.
  • HIGH SECURITY ACCORDING TO GERMAN QUALITY STANDARDS
  • The Access Point reliably detects radio interferences
  • And warns when there are events
  • faults
  • AES 128 encryption between devices, APP
  • And Cloud
  • Server location in Germany
  • Secure use without registration
  • Reliable radio protocol on 868.3/869.525 MHz
  • Smart HOME CONTROL VIA VOICE COMMAND
  • Many devices and functions of the Homematic IP system
  • Can be controlled via voice command
  • Amazon Alexa and Google Assistant.
  • FLEXIBLE AND EASY INSTALLATION
  • The Access Point can be simply lying on one
  • Be operated on a table or firmly mounted on the wall.
  • Suitable screws and plugs for mounting
  • supplied. The Access Point offers something for every Smart home
  • Right solution:
  • Extension of the radio range through integration
  • Another access point
  • Control of multiple access points in
  • Different installations (e.g. for the
  • Holiday house) via a APP
  • Up to 15 users per Homematic IP installation
  • Extension and combination of the installation
  • With Homematic IP wired devices via the
  • Homematic IP wired access Point possible
  • Homematic IP Smart home wireless battery outdoor camera
  • Power supply voltage (input) 100–240 VAC / 50 Hz
  • Power consumption plug-in power supply (max.) 2.5 W
  • Supply voltage 5 VDC (SELV)
  • Power consumption max. 1,000 mA
  • Current consumption in idle state 800 μA
  • Current consumption in operation 350 mA

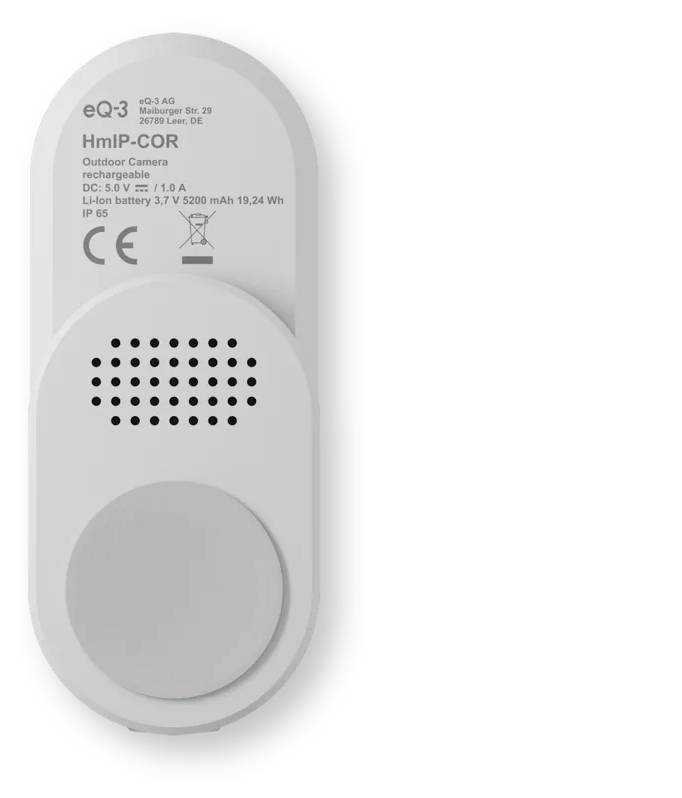

  • Nominal capacity of rechargeable battery 5200 mAh
  • Operation time in standby mode up to 6 months
  • Ambient temperature 20 to +50 °C
  • Micro SD card slot up to max. (FAT32 format) 256 GB
  • WLAN-SECURITY 128-BIT WPA/WPA2/WPA2, WPA-PSK, WPA2-PSK, WPA2-PSK

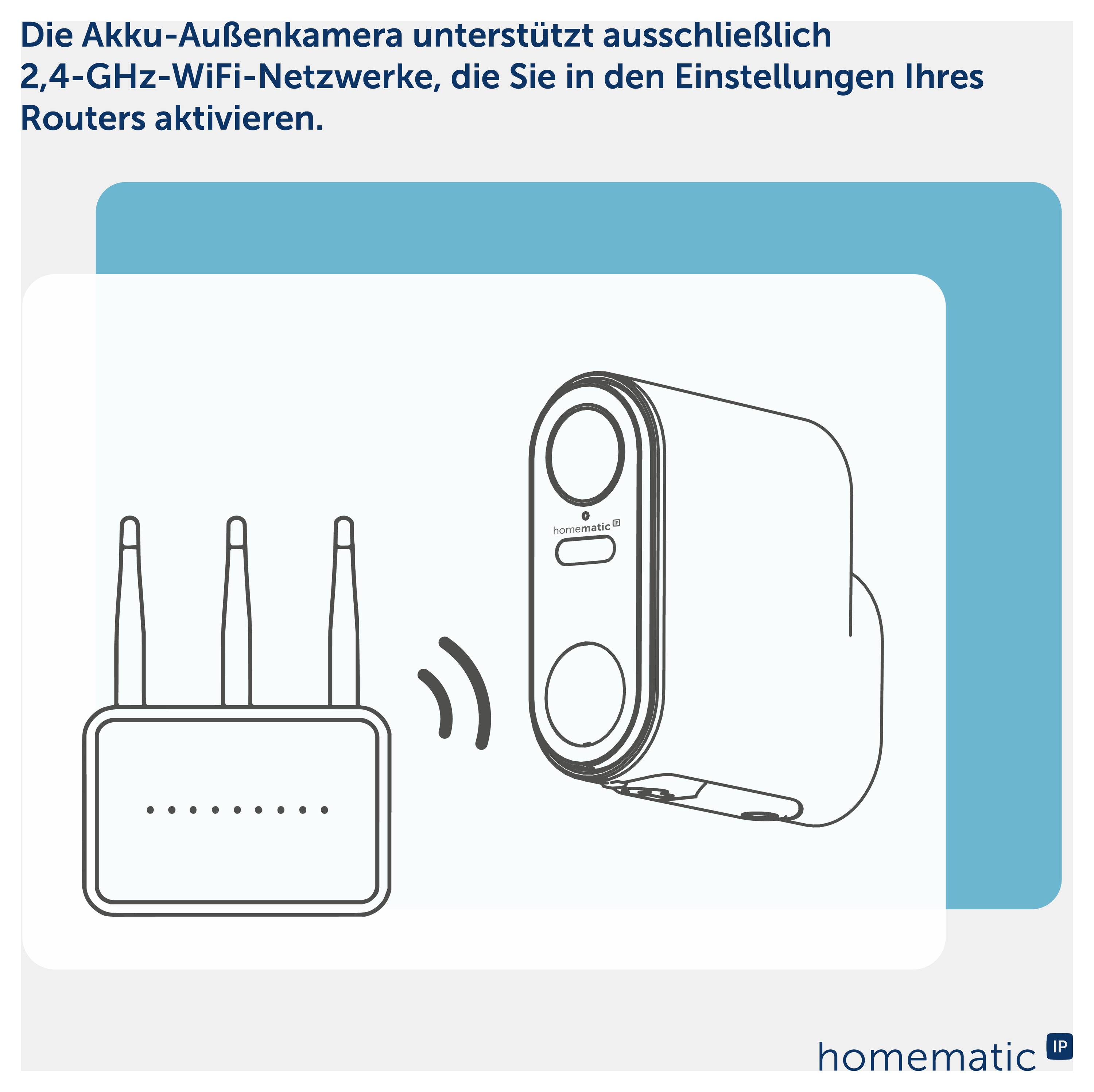

  • WLAN frequencies 2412-2472 MHz (Max. Power less than 20 dBm)
  • 3 MP resolution
  • Min Brightness color: 0.1 Lux @ F2.0
  • Black/white: 0.01 Lux @ F2.0
  • Effective pixels 2304 (H) × 1296 (V)
  • Image sensor 1/2.8" 3 megapixel CMOS
  • Lens 3.2 mm @ F2.0, 110°/60°/130°
  • Bit rate 32 Kbps – 2 Mbps
  • Frame rate 1–25 fps
  • Compression procedure H.264
  • 2-way audio half duplex
  • Local and cloud storage 256 GB, 6 s (event)
  • Coverage PIR sensor: 110°, up to 10 m

Scope of delivery

  • Homematic IP access Point 2
  • PSU
  • Network cable
  • Mounting material (screws and wall plugs)
  • User manual

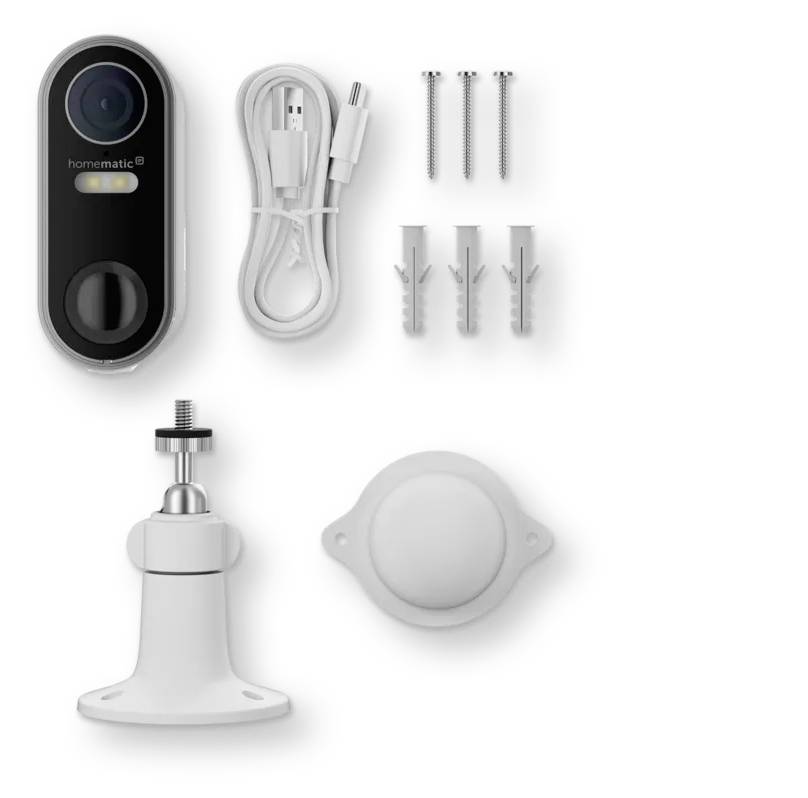

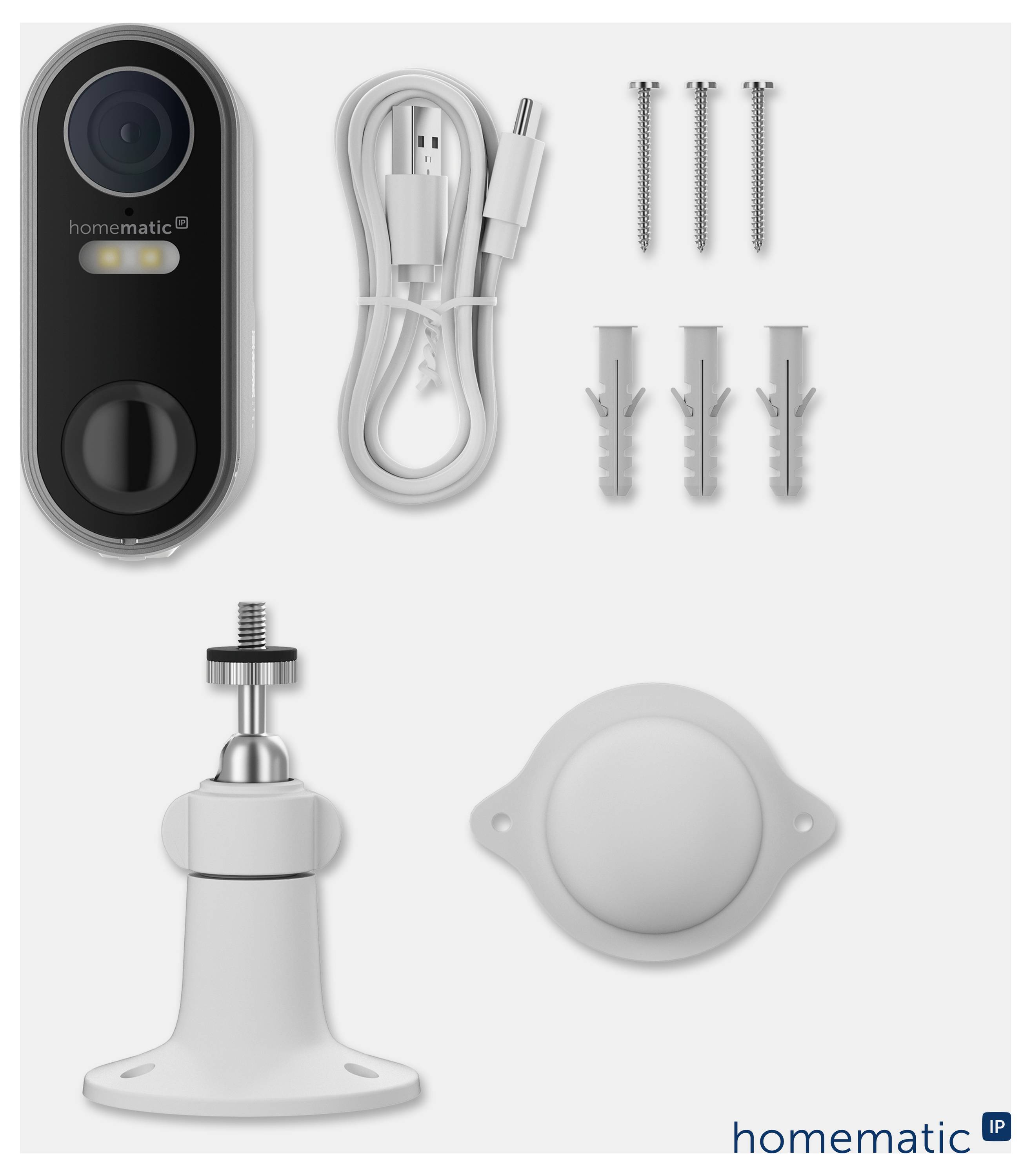

  • 2x outdoor battery camera, User manual, 1x USB-C / USB‑A cable, length 0.5 m, Installation material

System requirements


  • Homematic IP wireless access Point 2
    230V power supply, LAN connection

  • Homematic IP Smart home wireless battery outdoor camera
    This product requires a Homematic IP Access Point or a control center.
