Buy Homematic IP Wireless Hub CCU3

A white, square device with a blue square button in the centre, labelled 'homematic'.

A white gaming console with a slim, vertical design and ventilation slots on the side.

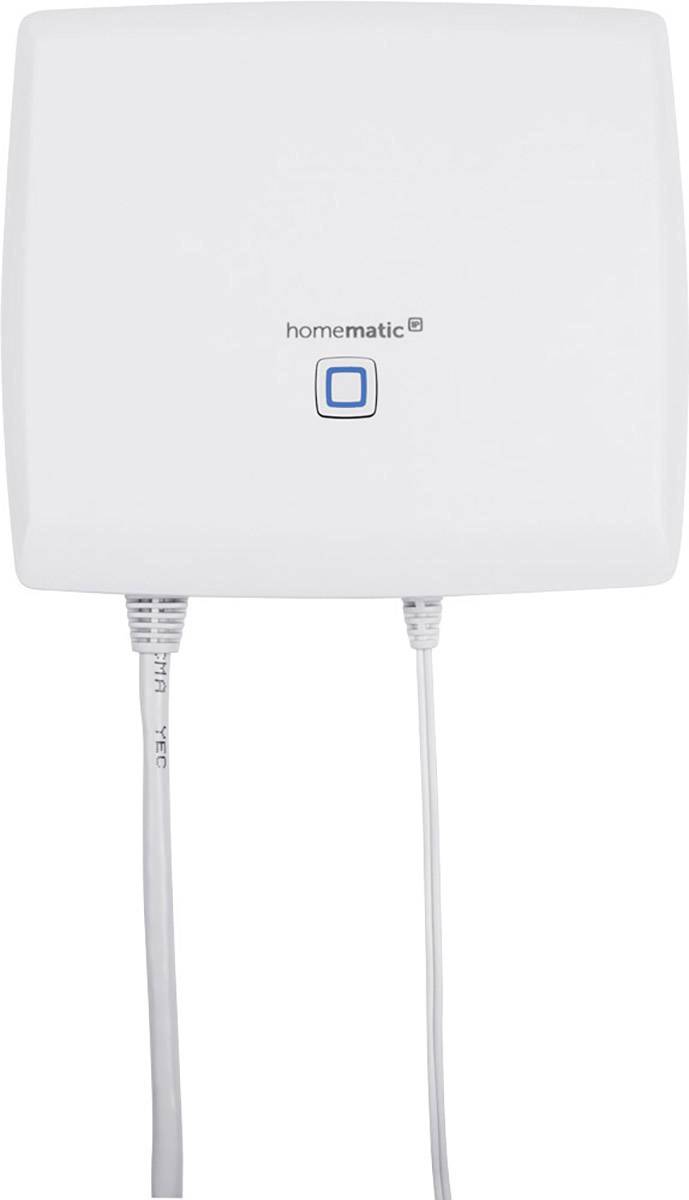

A white Homematic IP device with two cables and a blue button in the centre on the front.

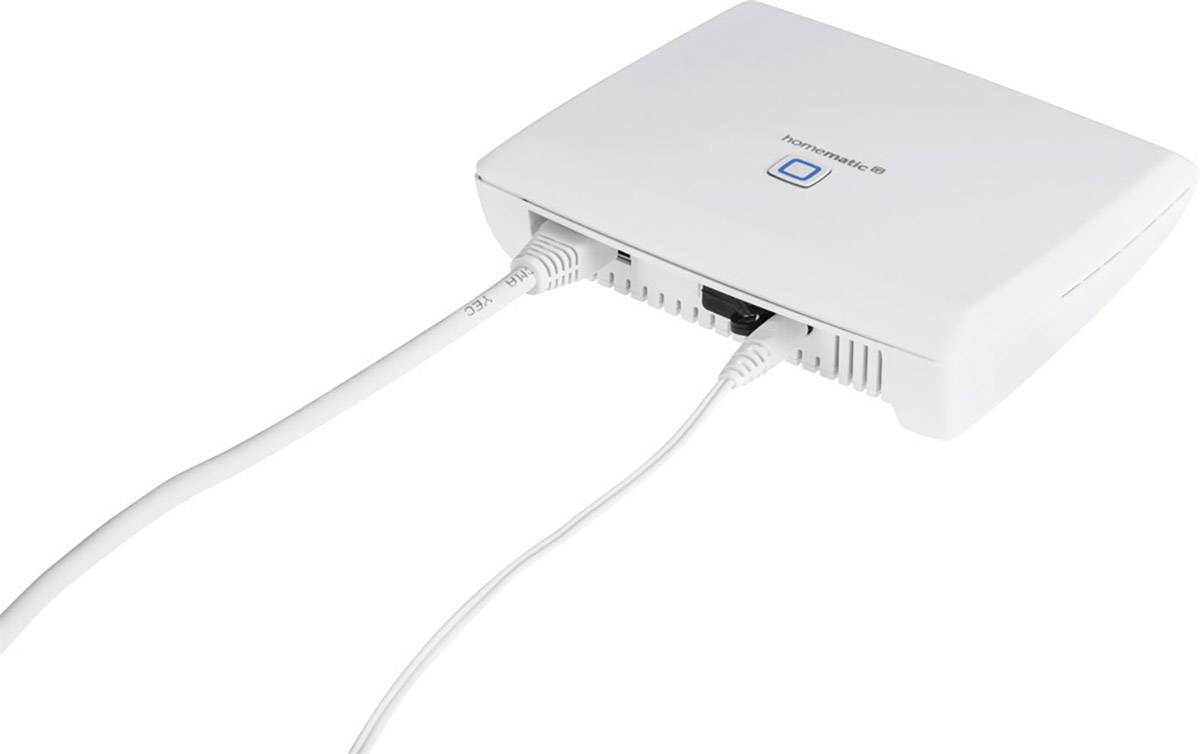

White Wi-Fi router with two connected cables, one for power, one for internet.

Square, white Homematic device with a central blue button. Used for controlling smart home functions.

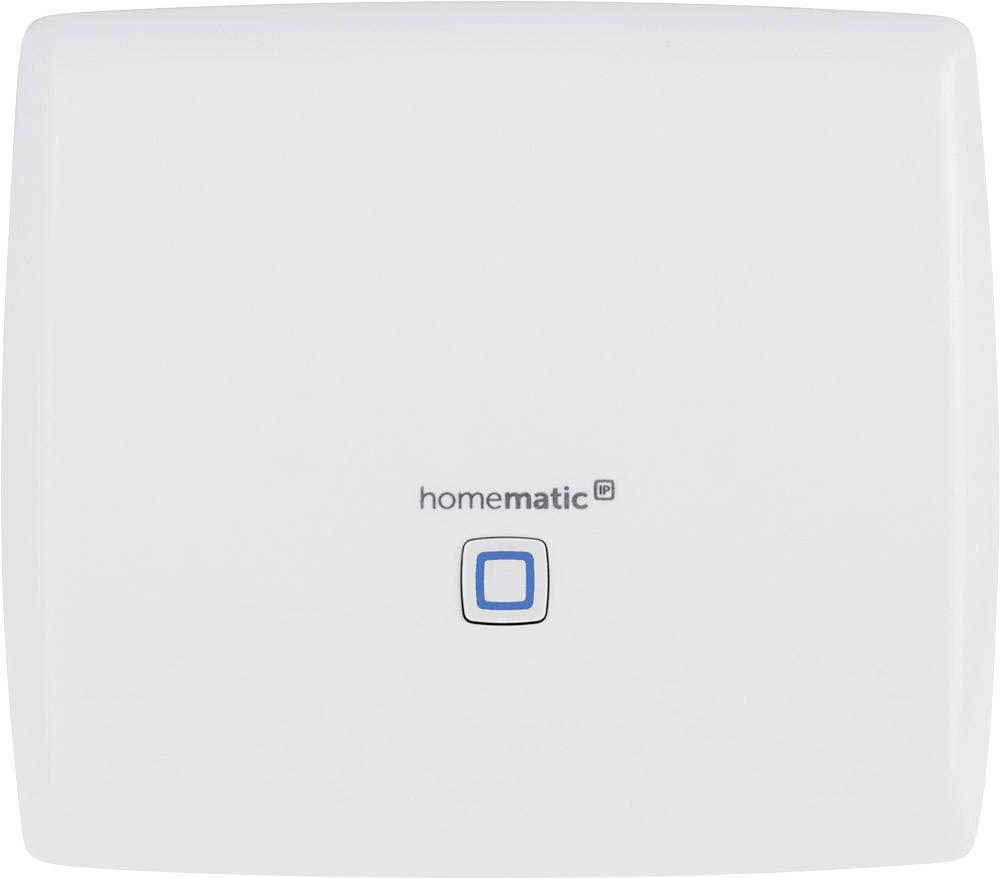

A white square device with a blue button in the centre and the inscription 'homematic IP'.

A white Homematic IP access point with a blue square button in the centre, against a white background.

Back of a Homematic IP Central Control Unit (HmIP-CCU3) with technical specifications and power supply connections.

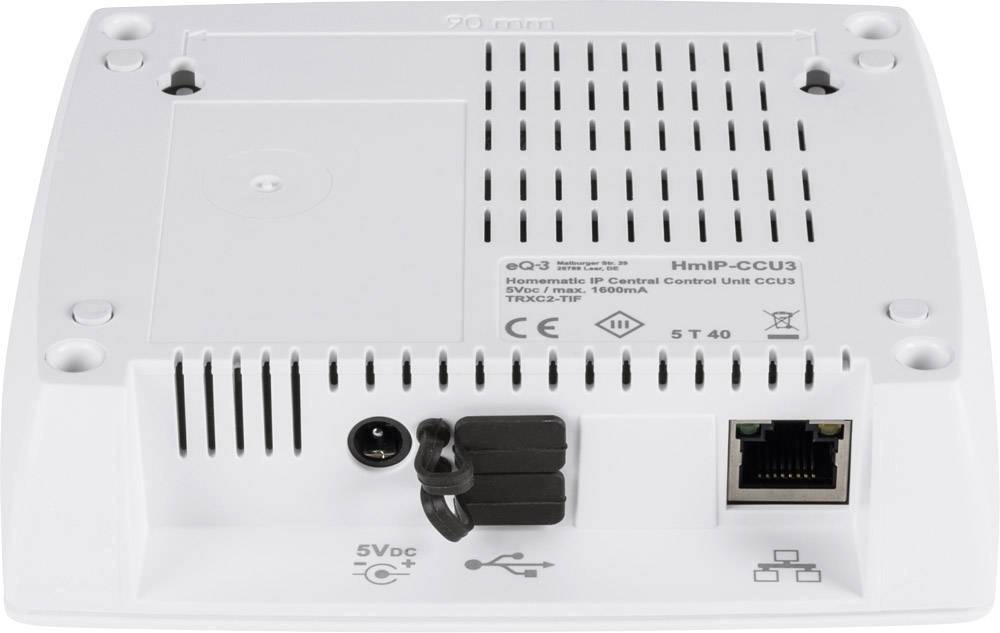

Rear view of an electronic device with network cable connection, power connection, and ventilation slots. Model: HmIP-CCU3.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 130.25 / piece)

€ 130.25

plus VAT.

Report legal concerns

Highlights & Details

HomeMatic CCU3 smart home center, including Mediola AIO CREATOR NEO license

Connects HomeMatic IP and HomeMatic via the local WebUI configuration interface
Allows direct links within your HomeMatic and HomeMatic IP products
Supports wireless components and wired devices

Technical specifications

Product type: Hub

Series: Homematic IP

Transfer Standard (Smart Home): Manufacturer-specific

: IP20

Power supply (LOV): mains-powered

Data transfer (Smart Home): Wireless

Frequency: 868 MHz

: 400 m

Factory colour: White

Width: 119 mm

Height: 136 mm

Depth: 35 mm

Weight: 0.6200 kg

Dim: (W x H x D) 119 x 136 x 35 mm

Hub: Required

Data exchange: Bidirectional (bi)

: n.rel.

Documents & Downloads

Datasheet

Datasheet 1694106 Homematic IP Wireless Hub CCU3

User & Safety Instructions

User & Safety Instructions 1694106 Homematic IP Wireless Hub CCU3

Information

Information 1694106 Homematic IP Wireless Hub CCU3

Download

Download 1694106 Homematic IP Wireless Hub CCU3

Description

The powerful central unit for local and convenient control of your smart home

The new powerful CCU3 smart home center combines and combines the wide range of two systems!
Now you can connect both HomeMatic and HomeMatic IP products in a local and convenient way and control them via a central WebUI configuration area. But not only wireless components can be integrated - HomeMatic IP Wired devices can also be controlled with the CCU3. An optional expansion interface, enables compatibility with other systems via two USB host ports.

The CCU3 offers you numerous and individual configuration as well as control options via the proven WebUI, which you can reach comfortably via your web browser. Inside the center is a powerful 4-core ARM processor with 64-bit architecture and a durable 8 GB industrial flash memory. Thanks to the AES-128 encrypted HomeMatic and HomeMatic IP wireless protocols, you enjoy the highest security for your data.

The CCU3 is also compatible with Mediola's AIO CREATOR NEO plug-ins, supporting a wide range of other third-party systems and creating a custom smartphone and tablet control app.
The wireless range of the system can be easily extended by integrating another access point.

This text is machine translated.

Features

Connects and combines the wide range of HomeMatic IP and HomeMatic via the local WebUI configuration interface
Allows you to set up direct links within HomeMatic or HomeMatic IP product lines
Offers numerous and individual configuration and control options via the proven WebUI via web browser
Powerful hardware with 4-core ARM processor, 64-bit architecture and long-lasting 8 GB flash memory
Highest security through AES-128-encryption
Optional expansion interface via two USB host ports
Flexible remote access via VPN solutions or secure remote access solutions from partners
Integration of Philips Hue and OSRAM Lightify luminaires possible directly via the manufacturer's gateway
Design individual apps for smartphone and tablet via AIO CREATOR NEO possible
Mediola plug-ins allow a variety of other systems (e.g. BOSE, Devils, Sonos, Digitus DIGITAL and many more).

Scope of delivery

HomeMatic Smart Home Center CCU3
Incl. Mediola AIO CREATOR NEO
