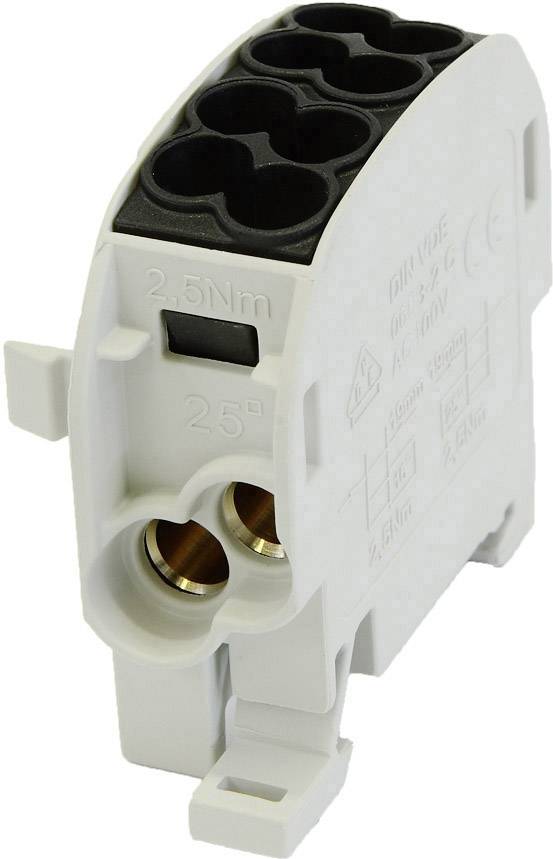

HoraeTec 080110-4-3 Main tap terminal PA, Brass Grey-white (RAL 7035), Jet black (RAL 9005) 1-pin 100 A 690 V Conductor
EAN:
Part number:
Item no:
Product type
Main tap terminal
Number of pins
1
Nominal current - rounded value
100 A
Nominal voltage
690 V
Type
Main cable branch terminal 25 mm² - 1 pin
Datasheet (PDF)
Highlights & Details
5-piece set main line tap terminal 25 mm²
- For aluminum and copper conductorsAll-round finger-proof designCan be connected in series up to max. 5-pole
Technical specifications
- Nominal voltage
690 V
- Type
Main cable branch terminal 25 mm² - 1 pin
- Product type
Main tap terminal
- Factory colour
Grey-white (RAL 7035)
Jet black (RAL 9005)
- Number of pins
1
- Dim
(W x H x D) 24.8 x 49.4 x 55.7 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
Type C - finger-proof, can be stacked on all sides
- Conductor type
L
- Material
PA
Brass
- Width
24.8 mm
- Height
49.4 mm
- Depth
55.7 mm
Documents & Downloads
Datasheet
Datasheet 2633593 HoraeTec 080110-4-3 Main tap terminal PA, Brass Grey-white (RAL 7035), Jet black (RAL 9005) 1-pin 100 A 690 V Conductor
User & Safety Instructions
User & Safety Instructions 2633593 HoraeTec 080110-4-3 Main tap terminal PA, Brass Grey-white (RAL 7035), Jet black (RAL 9005) 1-pin 100 A 690 V Conductor
Description
Access / outlet 2 x 25 mm² + 2 x 16 mm² according to EN 60947-7-1 / EN 61238-1 "Class A" and UL 1059 with snap-on mounting for horizontal mounting. 1 insert with 4 clamping points (design "L") black.
This text is machine translated.
