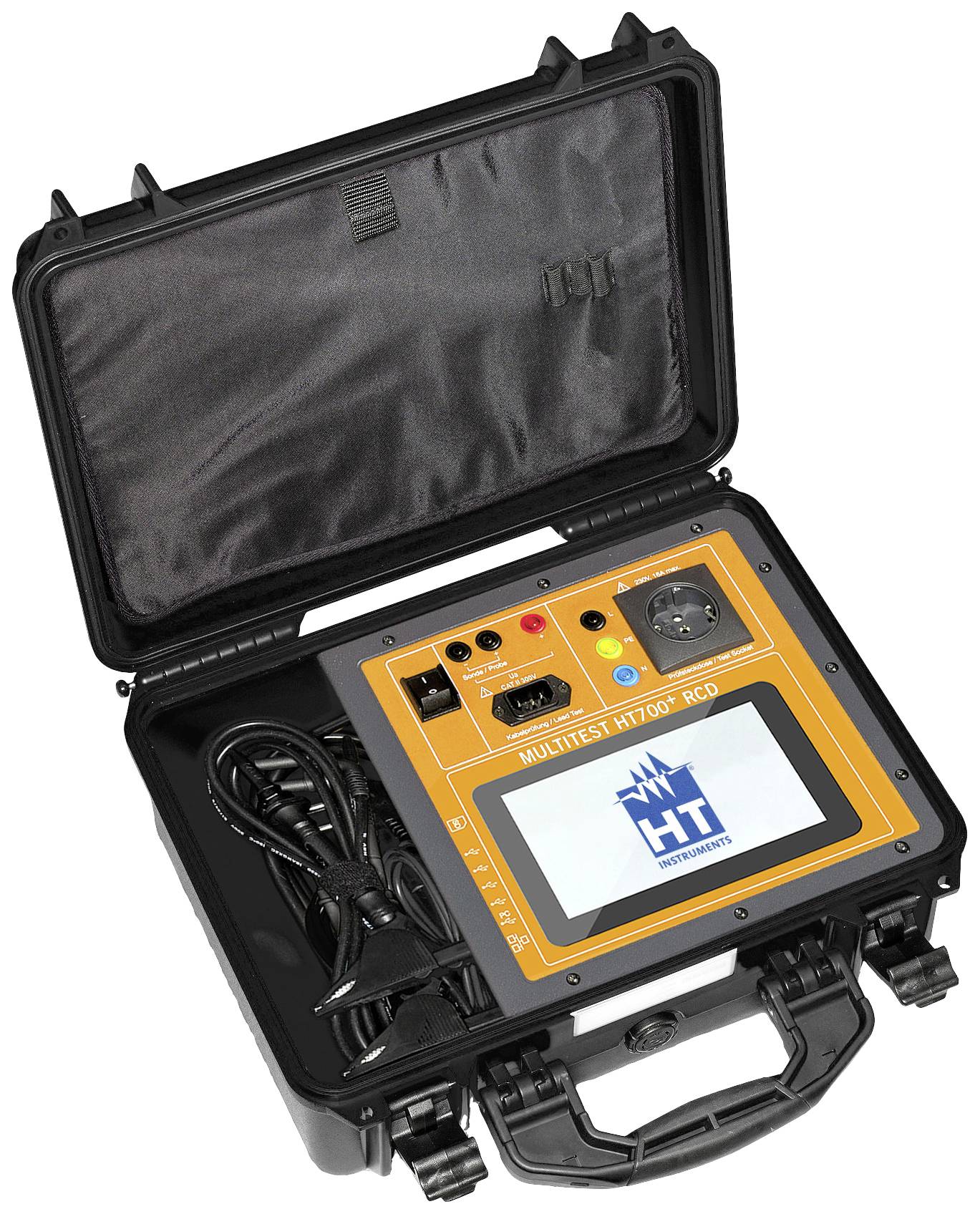

HT Instruments Multitest HT700+ RCD Equipment tester Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Technical specifications
- 7" capacitive color touchscreen with keyboard functionProtective conductor resistance (RPE) 0.05 Ω - 10 Ω (> 600 mA + 10 A test current)Insulation resistance (RISO) 0.1 MΩ - 100 MΩ (100 V - 1000 V testing voltage)Protective conductor current (IPE): 0.03 mA - 25 mA (difference, direct, spare)Contact current (IBER); 0.03 mA - 25 mA (difference, direct, spare)RPE, RISO, short-circuit and continuity test for L & N.Function test (voltage/current) 1 V - 360 V/0.1 A - 16 A.Function test (active power/output) 20 W - 2300 W.Interfaces: W-LAN, Bluetooth®, 4 x USB, Mini
- Product type
Equipment tester
ISO standards
- Interfaces
Wi-Fi (802.11b/g)
USB
Bluetooth®
Mini USB Host
- Dim
(L x W x H) 405 x 330 x 165 mm
- Weight
5 kg
- DIN standard
DIN VDE 0701 (EN 50678)
DIN VDE 0702 (EN 50699)
- Display type
Digital (LCD)
- Width
330 mm
- Height
165 mm
- Length
405 mm
- Voltage supply
Battery
- Memory
Yes
- Type
Multitest HT700+ RCD
- Features
RCD/FI testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2742695 HT Instruments Multitest HT700+ RCD Equipment tester Calibrated to (ISO standards)
Description
The latest DGUV standard 3 Test case for testing electrical equipmentSpecifications:• A complete device tester for all VDE device tests• Testing of PRCD's (2-/3-pin) type S, S+, K• Testing of RCD type AC, A, F, B, B+• Testing of medical devices VDE0751 type B, BF and CF• Device tester can be operated in IT networks• Standard, extended and customized visual inspections• Database management of customers & resources with ID no.• Creation and assignment of individual test procedures and intervals• Automatic and manual test sequence can be set• Direct test specimen/customer input via touch screen keyboard• Test sample detection is possible via barcode or transponder• Unlimited data storage via SO card• Measurement result with clear GOOD/BAD indication• Help function and schematic connection diagrams• Complete test specimen/customer database can be saved on SO card and thus directly available at the test site• Low operating costs, free updates via WLAN, LAN, USB• Interfaces: WLAN, RJ45 (LAN), USB, SO card slot and Bluetooth• Internal battery, inventory and use of the user interface is possible without interruption when changing test station
