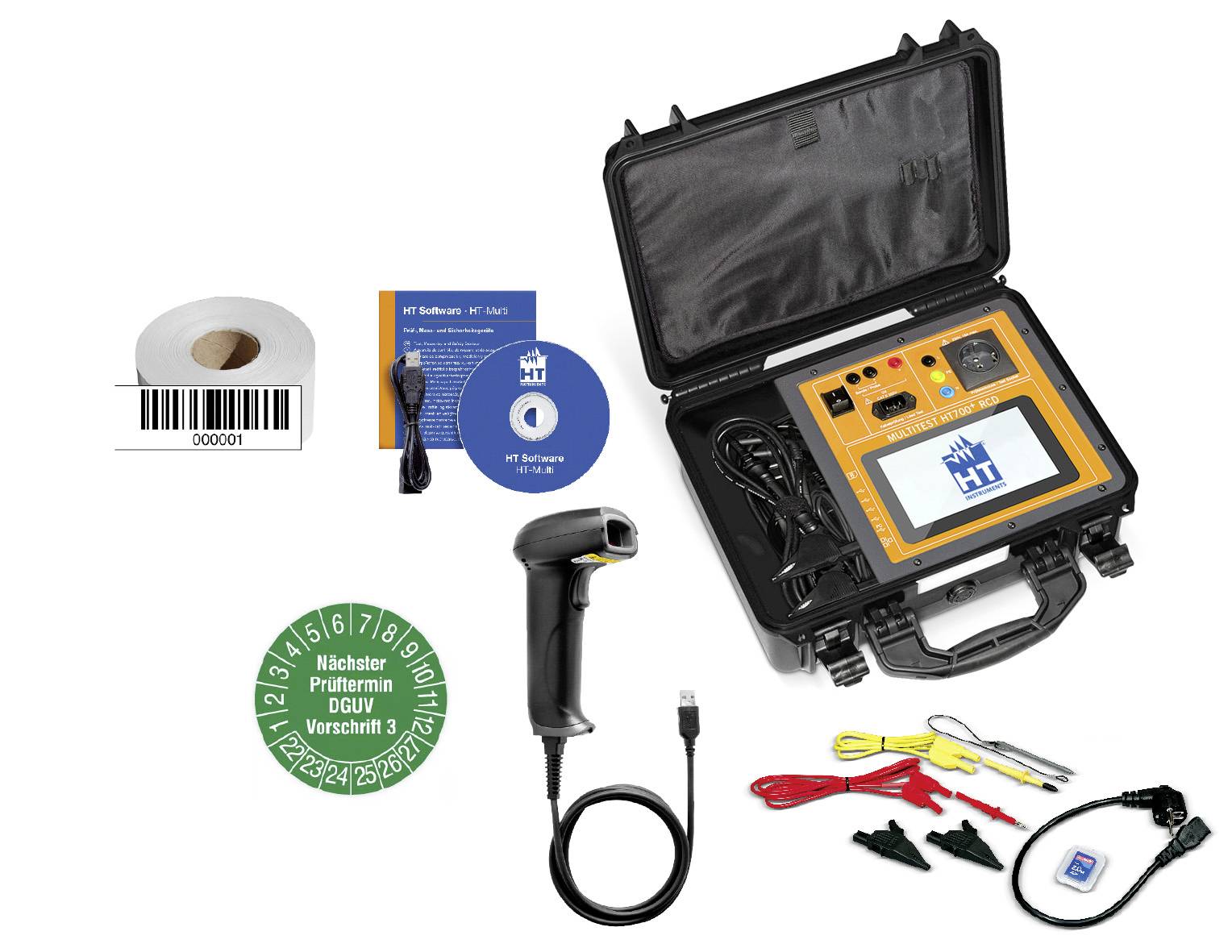

HT Instruments Multitest HT700+ RCD Set Equipment tester Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Technical specifications
- 7" capacitive color touchscreen with keyboard functionProtective conductor resistance (RPE) 0.05 Ω - 10 Ω (> 600 mA + 10 A test current)Insulation resistance (RISO) 0.1 MΩ - 100 MΩ (100 V - 1000 V testing voltage)Protective conductor current (IPE): 0.03 mA - 25 mA (difference, direct, spare)Contact current (IBER); 0.03 mA - 25 mA (difference, direct, spare)RPE, RISO, short-circuit and continuity test for L & N.Function test (voltage/current) 1 V - 360 V/0.1 A - 16 A.Function test (active power/output) 20 W - 2300 W.Interfaces: W-LAN, Bluetooth®, 4 x USB, Mini
- Product type
Equipment tester
ISO standards
- Interfaces
Wi-Fi (802.11b/g)
USB
Bluetooth®
Mini USB Host
- Dim
(L x W x H) 405 x 330 x 165 mm
- Weight
5 kg
- DIN standard
DIN VDE 0701 (EN 50678)
DIN VDE 0702 (EN 50699)
- Display type
Digital (LCD)
- Width
330 mm
- Height
165 mm
- Length
405 mm
- Test procedure
automated
- Voltage supply
Battery
- Memory
Yes
- Type
Multitest HT700+ RCD Set
- Features
RCD/FI testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2742693 HT Instruments Multitest HT700+ RCD Set Equipment tester Calibrated to (ISO standards)
Description
The latest DGUV standard 3 Test case for testing electrical equipmentSpecifications:• A complete device tester for all VDE device tests• Testing of PRCD's (2-/3-pin) type S, S+, K• Testing of RCD type AC, A, F, B, B+• Testing of medical devices VDE0751 type B, BF and CF• Device tester can be operated in IT networks• Standard, extended and customized visual inspections• Database management of customers & resources with ID no.• Creation and assignment of individual test procedures and intervals• Automatic and manual test sequence can be set• Direct test specimen/customer input via touch screen keyboard• Test sample detection is possible via barcode or transponder• Unlimited data storage via SO card• Measurement result with clear GOOD/BAD indication• Help function and schematic connection diagrams• Complete test specimen/customer database can be saved on SO card and thus directly available at the test site• Low operating costs, free updates via WLAN, LAN, USB• Interfaces: WLAN, RJ45 (LAN), USB, SO card slot and Bluetooth• Internal battery, inventory and use of the user interface is possible without interruption when changing test station
This text is machine translated.
This text is machine translated.
