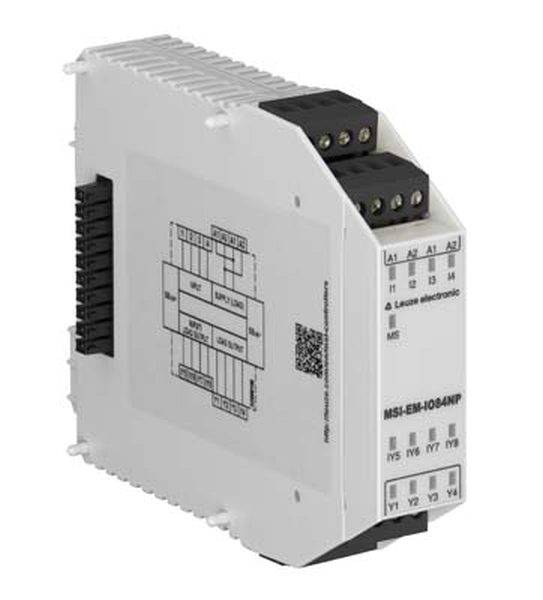

I/O module 50132997 Leuze Electronic (W x H x D) 22.5 x 96.5 x 120.8 mm 1 pc(s)
Product type
I/O module
Connector
Screw terminals
Type
50132997
Certification (sensors)
cULus
Depth
120.8 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
I/O module
- Type
50132997
- Connector
Screw terminals
- Certification (sensors)
cULus
- Depth
120.8 mm
- Width
22.5 mm
- Height
96.5 mm
- Dim
(W x H x D) 22.5 x 96.5 x 120.8 mm
- Content
1 pc(s)
22.5 mm
96.5 mm
120.8 mm
3 mA
FALSE
FALSE
TRUE
Transistor
Screw-/spring clamp connection
None
None
FALSE
FALSE
24-24 V
16.2-30 V
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982969 I/O module 50132997 Leuze Electronic (W x H x D) 22.5 x 96.5 x 120.8 mm 1 pc(s)
Description
Functions: Non-safe expansion module for the configurable MSI 400 safety controller, extension of 4 non-safe inputs, 4 non-safe outputs and 4 non-safe freely programmable I/Os (OSSDs); number of outputs: 4 pcs.; number of inputs: 8 pcs.; connection: Screw terminal; dimension: 22.5 mm x 96.5 mm x 120.8 mm; approvals: C UL US
