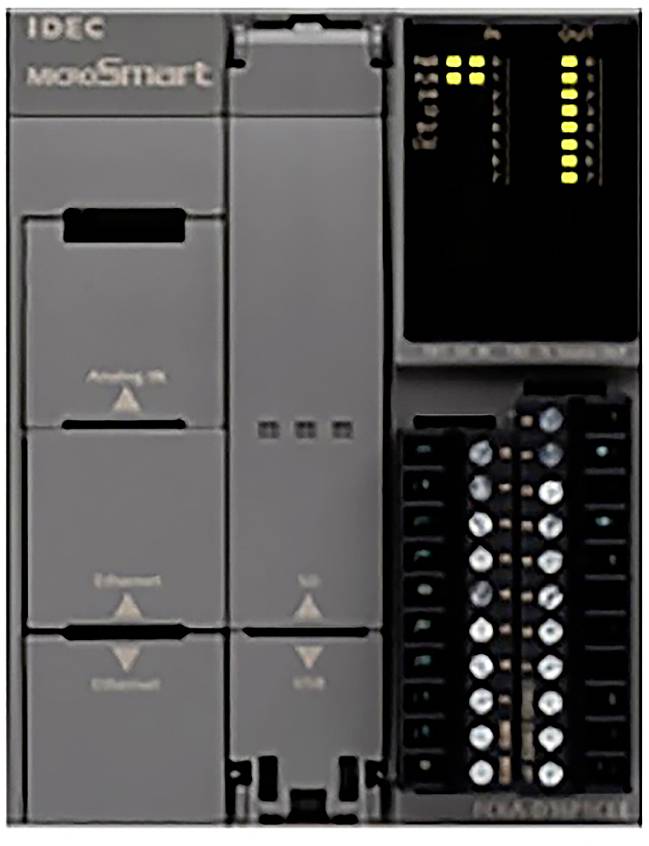

Idec FC6A-D16P1CEE FC6A Series CPU module 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 669.00 / piece)
€ 669.00
incl. VAT
14-day return policy included
Highlights & Details
MicroSmart FC6A-series
- MQTT, Ethernet/IP, BAC/Net, web server
Technical specifications
- Product type
CPU module
- Manufacturer part #
FC6A-D16P1CEE
- Operating voltage
24 V DC
- Type
FC6A Series
- No. of analogue inputs
1
- Dim
(L x W) 70 mm x 90 mm
- No. of transistor outputs (max.)
8
- No. of digital inputs (max.)
8
- Resolution
12-bit
- Operating voltage
20.8 - 28.8 V DC
- Max. operating voltage
28.8 V DC
- Min. operating voltage
20.8 V DC
- Permanent current
0.5 A
- Interference suppression
IEC/EN61131-2, Zone B compatibility
- Fitting type (details)
Top hat rail, direct
- Width
90 mm
- Length
70 mm
- Program memory
800 kB
- Interfaces
Mini B USB plug
Ethernet
SD card slot
IP20
- Series
FC6A
- Max. ambient temperature
-25 °C
- Min. ambient temperature
65 °C
Documents & Downloads
Datasheet
Datasheet 3395412 Idec FC6A-D16P1CEE FC6A Series CPU module 24 V DC
User & Safety Instructions
User & Safety Instructions 3395412 Idec FC6A-D16P1CEE FC6A Series CPU module 24 V DC
Description
PLC 16IO 24VDC TRANS. Source
This text is machine translated.
This text is machine translated.
Scope of delivery
- Plug, battery with holder, connection cable analogue input
System requirements
- min Windows 10 PC
