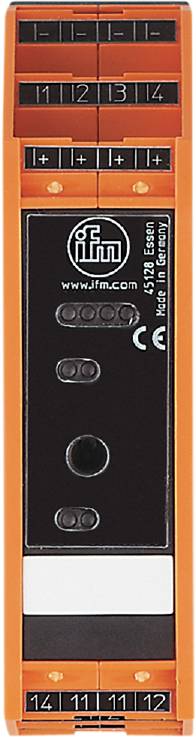

ifm Electronic AC2256 AC2256 IO module No. of digital inputs: 4 No. of relay outputs: 2
Product type
IO module
No. of relay outputs
2
Type
AC2256
No. of digital inputs
4
Control LEDs
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm AC2256 AS-i input/output module
- For use in switchboards
- Easy and fast wiring with spring clamp terminals
- Particularly space-saving design
- Double terminals for looping through the voltage supply
- Highly visible bright LEDs for display of operation, switching status and function
Technical specifications
- Number of digital inputs: 4
- Number of inputs and outputs: Number of digital inputs: 4; number of relay outputs: 2
- Number of relay outputs: 2
- Display: Switching state: LED, yellow I1...I4, O1...O4; operation: LED, green AS-i; Error: LED, red
- Galvanically decoupled Digital output: Yes
- Ambient temperature-1 [°C]: -25...70
- Application: Switchboard installation
- AS-i Addressing: Addressing socket
- AS-i I/O Configuration [HEX]: 7
- AS-i ID code [HEX]: A.E
- As-i Master profile M2; M3; M4
- AS-i profile S-7.A.E
- AS-i version 2.11; 3.0
- Operating voltage [V]: 26.5... 31.6 DC
- Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
- Input current High [mA]: 6...10
- Input current Low [mA]: 0...2
- Extended addressing mode: Yes
- Weight [g]: 159,800
- Ready to assemble connection / terminals: Multi-pin connector:
- Short-circuit-proof: No.
- Short-circuit resistance of digital inputs: Yes
- Max. Height above NN [m]: 2000
- Max. Current consumption from AS-i [mA]: 250
- max. Current carrying capacity Total inputs [mA]: 200
- Max. Permissible relative humidity [%]: 90; (non-condensing)
- Mounting type: Rail mounting
- MTTF: 325
- Switching level HIGH [V]: > 11
- Protection class IP 20
- Sensor supply of inputs: AS-i
- Voltage range AC [V]: 10...240; (All outputs must be supplied with the same voltage.: 2 x 240 AC, same external conductor)
- Voltage range DC [V]: 24; (All outputs must be supplied with the same voltage: 2 x 24 DC)
- Power supply [V]: 18...30; (DC)
- Current carrying capacity Outputs total [A]: 6; (240 V C; 24 V DC; resistive load)
- Current carrying capacity per output [mA]: 6000; (240 V AC; 24 V DC; resistive load)
- Pollution level: 2
- Watchdog integrated: Yes
- Product type
IO module
- Type
AC2256
- No. of digital inputs
4
- No. of relay outputs
2
- Control LEDs
Yes
- Manufacturer part #
AC2256
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319675 ifm Electronic AC2256 AC2256 IO module No. of digital inputs: 4 No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 3319675 ifm Electronic AC2256 AC2256 IO module No. of digital inputs: 4 No. of relay outputs: 2
Description
Ifm AC2256 AS-i input/output module
