Name: ifm Electronic AC2412 AC2412 IO module No. of digital outputs: 4 No. of digital inputs: 4
Brand: ifm Electronic
SKU: 3320731

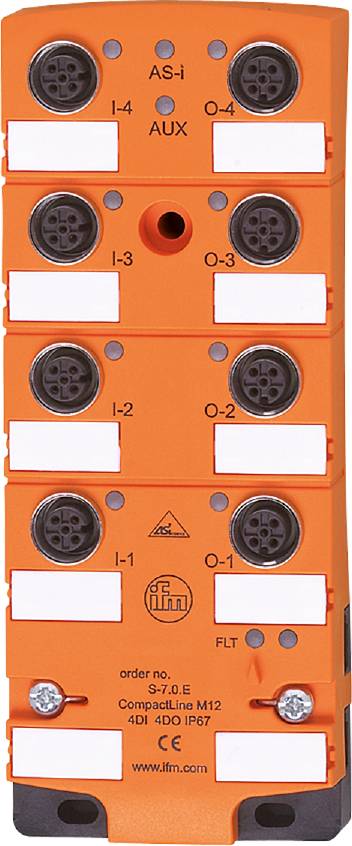

Orange electrical connector with four round terminals, marked with 'I-3', 'O-3', 'I-2', and 'O-2'.

Image similar

Product type

IO module

Type

AC2412

Height

27 mm

Length

152 mm

Width

60 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm AC2412 AS-i input/output module

Easy mounting and wiring
High shock and vibration resistance thanks to fully cast metal
Highly visible bright LEDs for displaying operation, function and errors
High protection class to meet the requirements of harsh industrial ambient
Durable M12 connectors for connecting sensors and actuators

Technical specifications

Dimensions [mm] 152 x 60 x 27
Actuator supply for outputs: AUX
Number of digital outputs: 4
Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of digital outputs: 4
Display: Switching state: LED, yellow I1...I4, O1...O4; operation: LED, green AS-i, AUX; Error: red LED
Galvanically decoupled Digital output: Yes
Ambient temperature-1 [°C]: -25...80
Application: Field mounting
AS-i Addressing: IR addressing possible
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 0.E
As-i Master profile M2; M3; M4
AS-i profile S-7.0.E
AS-i version 2.11; 3.0
AS-i certificate: 46001
Switching PNP
Operating voltage [V]: 26.5... 31.6 DC
Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Input current limit [mA]: 15
Extended addressing mode: No.
Weight [g]: 376,500
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -20...80
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 250
Max. Power consumption from additional power supply [mA]: 4000; (AUX)
max. Current carrying capacity Total inputs [mA]: 200
Max. Permissible relative humidity [%]: 90; (non-condensing)
Module connection: Flat cable
AS-i flat cable can be directly connected
MTTF: 193
Switching level HIGH [V]: > 11
Protection class: IP 67; (when using the flat cable E7400x / E7401x)
Sensor supply of inputs: AS-i
VOLTAGE RANGE DC [V]: 10...30; (AUX)
Power supply [V]: 20...30; (DC)
Plug connection: Inputs - Pin layout: 0017 - Plug connection: M12; Coding: A / Outputs - Pin layout: 0017 - Plug connection: M12; Coding: A
Current carrying capacity of outputs total [A]: 4
Current carrying capacity total [A]: 4
Current carrying capacity per output [mA]: 2000; (usage category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Watchdog integrated: Yes
Additional power supply [V]: 10...30 DC (AUX)
