Name: ifm Electronic AC3202 AC3202 GPI module Spring-loaded terminal No. of digital inputs: 4
Brand: ifm Electronic
SKU: 3319476

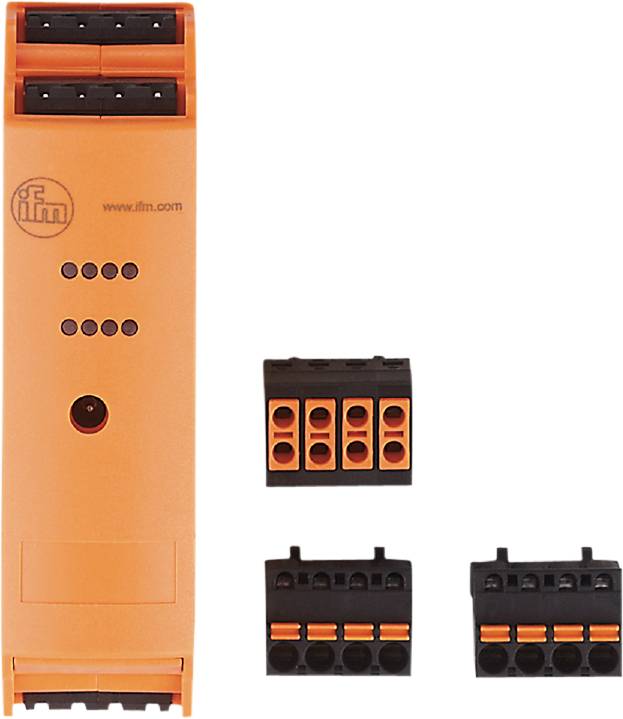

Image similar

Product type

GPI module

Interfaces

Spring-loaded terminal

Type

AC3202

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Highlights & Details

Ifm AC3202 AS-i input module

For use in switchboards
Easy and fast wiring with spring clamp terminals
Particularly space-saving design
Double terminals for looping through the voltage supply
Highly visible bright LEDs for display of operation, switching status and function

Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4
Display: Switching state: LED, yellow I1...I4; operation: LED, green AS-i; error: LED, red
Ambient temperature-1 [°C]: -25...60
Application: Switchboard installation
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 0
AS-i ID code [HEX]: A.E
As-i Master profile M2; M3; M4
AS-i profile S-0.A.E
AS-i version 2.11; 3.0
AS-i certificate: 124402
Operating voltage [V]: 18... 31.6 DC
Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: Yes
Weight [g]: 126,700
Field connection / Terminals: 4 x pin contact strips; 5.0 mm pitch
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...75
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 250
max. Current carrying capacity Total inputs [mA]: 200
Max. Permissible relative humidity [%]: 90; (non-condensing)
Mounting type: Rail mounting
MTTF: 437
Switching level HIGH [V]: > 11
Protection class IP 20
Protection class IP 20 terminals
Sensor supply of inputs: AS-i
Power supply [V]: 18...30; (DC)
Pollution level: 2
