Name: ifm Electronic AC5011 Module base AC5011 1 pc(s)
Brand: ifm Electronic
SKU: 3316352

Image similar

Product type

Module base

Type

AC5011

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

not relevant

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Highlights & Details

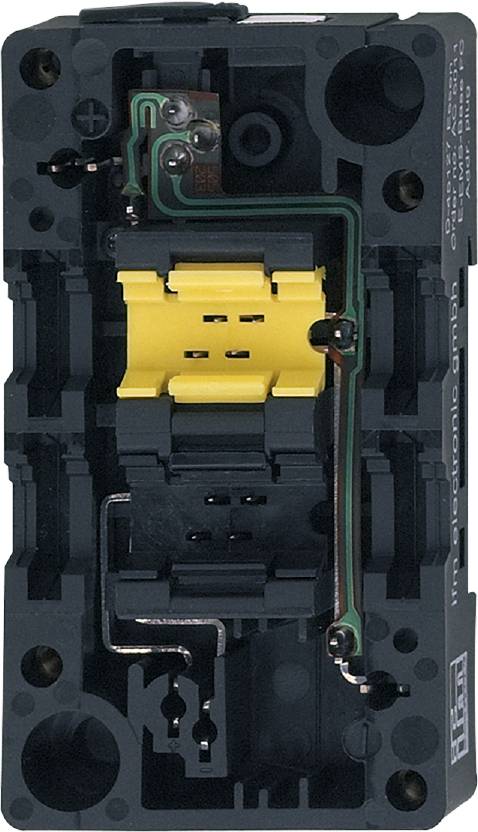

Ifm AC5011 module lower part for flat cables and external power supply

AS-i interface to the top of the module
Reliable connection with the AS-i flat cable thanks to quick mounting technology
For mounting rail and rear wall mounting
High protection class to meet the requirements of harsh industrial ambient

Dimensions [mm] 45 x 80 x 20
Ambient temperature-1 [°C]: -25...85
AS-i Addressing: Addressing socket
Operating voltage [V]: 26.5... 31.6 DC
Electrical version AS-i
Weight [g]: 61,000
Pre-assembled connection / terminals: Contact pins in the top of the module: / Rapid assembly technology for AS-i flat cable:
Contact rating: 2 A
Mounting type: Mounting rail and rear wall mounting
Protection class IP 67; (depending on the top used IP 20 / IP 65 / IP 67)
Additional power supply [V]: 24 DC
