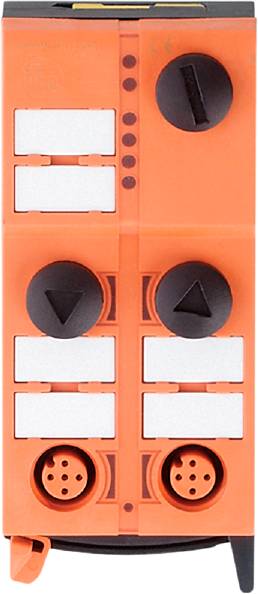

ifm Electronic AC5222 AC5222 GPI module M12 plug No. of digital inputs: 2
Product type
GPI module
Interfaces
M12 plug
Type
AC5222
No. of digital inputs
2
Control LEDs
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm AC5222 AS-i input module
- Easy installation and wiring without any tools thanks to quick mounting technology
- Three freely selectable alignments of the flat cable
- Highly visible, bright LEDs for displaying operation, switching status and errors
- High protection class to meet the requirements of harsh industrial ambient
- Durable M12 connectors for connecting sensors and actuators
Technical specifications
- Analog input current [mA]: 4...20
- Number of analog inputs: 2; (connection of 2- and 3-wire sensors)
- Number of inputs and outputs: Number of analog inputs: 2
- Display: Analog signal: LED, yellow channels AI1...AI2; operation: LED, green AS-i; error: LED, red
- Ambient temperature-1 [°C]: -25...70
- Application: Field mounting
- AS-i Addressing: Addressing socket
- AS-i I/O Configuration [HEX]: 7
- AS-i ID code [HEX]: 3.D
- As-i Master profile M3; M4
- AS-i profile S-7.3.D
- AS-i version 2.11; 3.0
- 12-bit analogue resolution
- Operating voltage [V]: 26.5... 31.6 DC
- Extended addressing mode: No.
- Accuracy: 0.5; (% of the end-of-range value; tolerance under the influence < of electromagnetic interference: ± 1% of the end-of-range value)
- Weight [g]: 176,000
- Ready-to-assemble connection / terminals: Quick-assembly technology for AS-i flat cable: ; Orientation possible in three directions
- Short-circuit resistance of analogue inputs: Yes
- Storage temperature [°C]: -25...70
- Max. Height above NN [m]: 2000
- Max. Voltage drop via load at rated voltage [V]: 10
- Max. Current consumption from AS-i [mA]: 250
- Max. Permissible relative humidity [%]: 90; (non-condensing)
- Module connection: Flat cable
- MTTF: 174
- IP 67 protection
- Sensor supply of inputs: AS-i
- Plug connection: Pin layout: 0017 - connector: M12; coding: A.
- Reverse polarity protection: Yes
- Product type
GPI module
- Interfaces
M12 plug
- Type
AC5222
- No. of digital inputs
2
- Control LEDs
Yes
- Manufacturer part #
AC5222
- UKCA
yes
