ifm Electronic Acceleration sensor VSM104 VSM104 IEPE Cable, open end
Product type
Acceleration sensor
Outputs
Analogue
Connector
Cable, open end
IP rating
IP67
IP68
IP69K
Type
VSM104
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

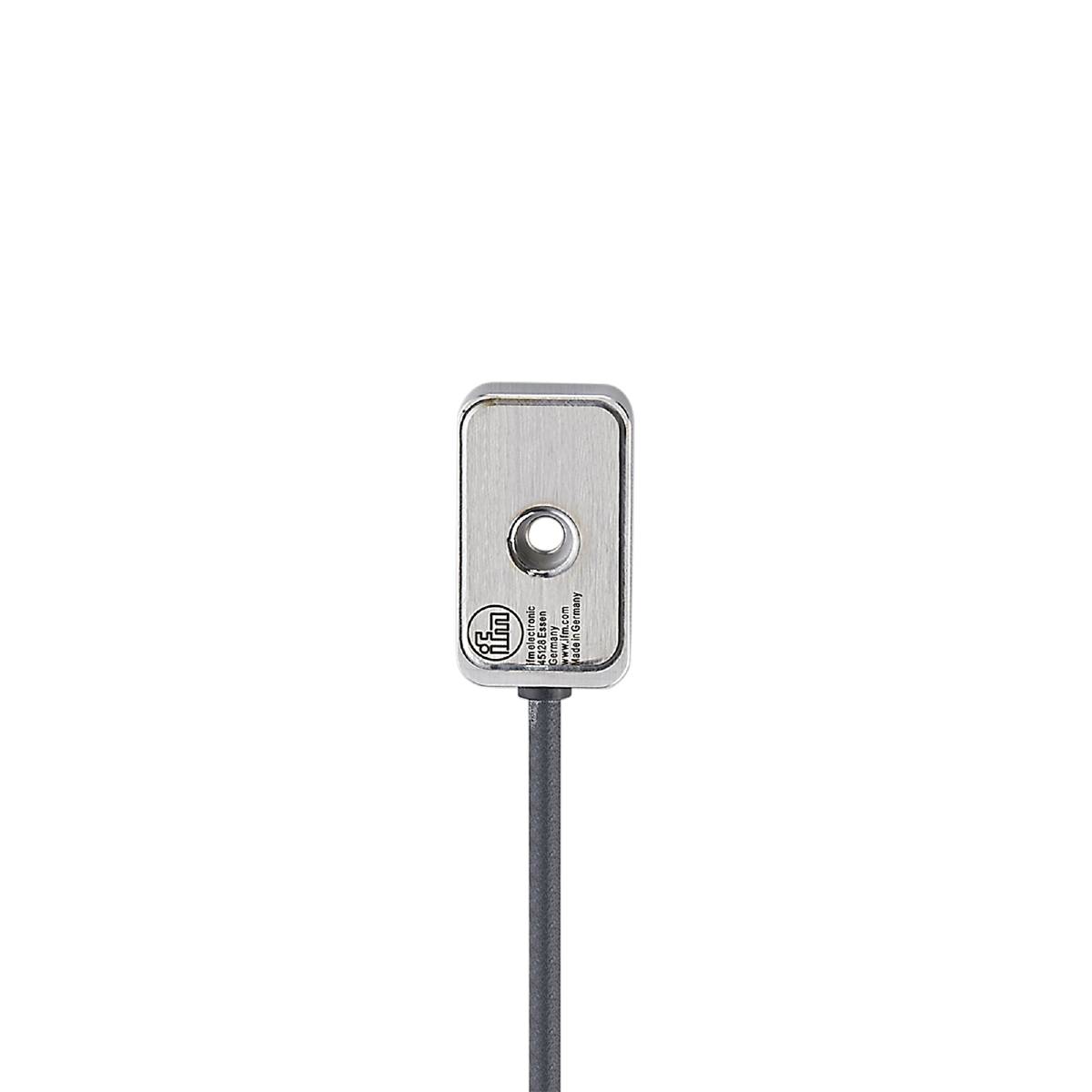

Ifm VSM104 acceleration sensor
- For reliable vibration detection in 3 measuring axes (x, y and z) on machines and systems
- For connection to a diagnostic electronics for vibration sensors
- High protection class to meet the requirements of harsh industrial ambient
- Compact and robust stainless steel housing with high mechanical overload resistance
- Universal use thanks to IEPE interface
Technical specifications
- Dimensions [mm] 26.2 x 47.3 x 11.6
- Number of measuring axles: 3
- Linearity deviation percentage range: 2
- Diagnostics measuring principle: Capacitive
- Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; bending radius with fixed laying: Min. 4 x cable diameter
- Drag chain capability available: Yes
- Ambient temperature-1 [°C]: -30...85
- Tightening torque [Nm]: 3.5
- Special feature: Shielded cable; suitable for drag chains
- Operating current [mA]: 4...6
- Bias voltage DC [V]: 11...16
- Frequency range [Hz]: 0...4500
- Accuracy: 0...3 kHz: +/- 10 % 3...4.5 kHz: 3 dB
- Weight [g]: 427,600
- Cable: 10 m, PUR, Ø 4.9 mm, shielded, Max. Cable length: 250 m; shield (mounted on the housing); 5 x 0.14 mm²
- Storage temperature [°C]: -30...100
- Max. Cross sensitivity [%]: 5
- Measuring range vibration [g]: -40...40
- Measuring sensitivity 100 mV/g
- Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
- Mounting type: Mounting screw
- MTTF: 529
- PROTECTION CLASS IP 67; IP 68; IP 69K
- Protection class III
- Sensor type: Micro-electromechanical system (MEMS)
- Polarity reversal protected: Yes
- Product type
Acceleration sensor
- Type
VSM104
- No. of axles
3
- Outputs
Analogue
- Accuracy ±
10 %
- Connector
Cable, open end
- Cable length
10 m
- Enclosure material
Stainless steel
- Mounting type
Screw fastening
- Interfaces
IEPE
- Min. temperature
-30 °C
- Max. temperature
85 °C
IP67
IP68
IP69K
- Length
47.3 mm
- Width
26.2 mm
- Height
11.6 mm
- (Ø)
4.9 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
