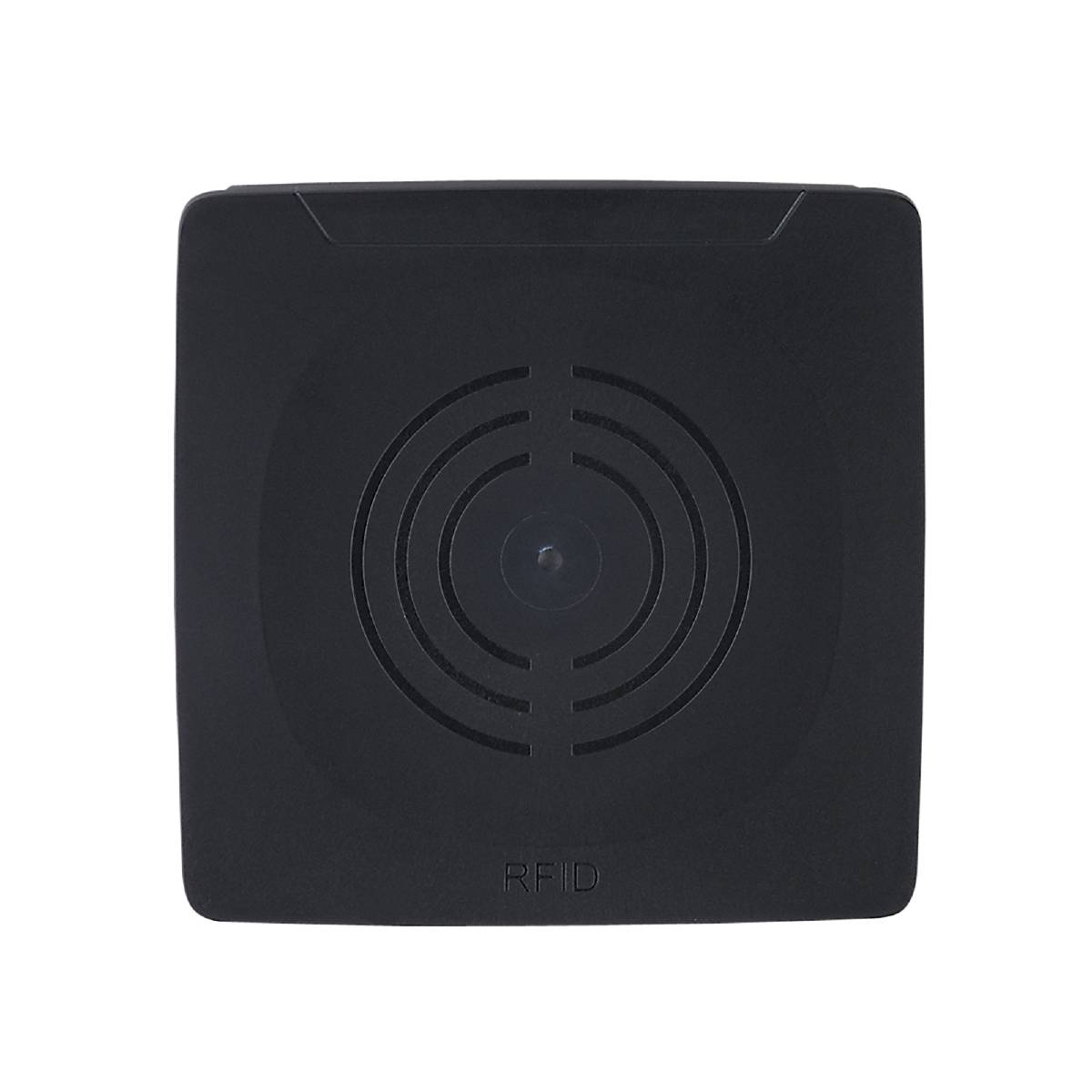

Name: ifm Electronic DTE805 RFID module DTE805 1 pc(s)
Brand: ifm Electronic
SKU: 3321962

Image similar

Product type

RFID module

Type

DTE805

Min. operating voltage

19.2 V DC

Max. operating voltage

28.8 V DC

Operating voltage

19.2 - 28.8 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Highlights & Details

Ifm DTE805 RFID compact device

Dimensions [mm] 113 x 118.6 x 50
Display: Power supply: 1 x LED, green; LED bar display: 4 x LED, yellow number of tags in the field; Status: 2 x LED, green / red fieldbus interface; Status: 2 x LED, green / yellow Ethernet
Ambient temperature-1 [°C]: -20...55
Operating frequency [MHz]: 865...868 (ETSI)
Operating voltage [V]: 19.2... 28.8 DC
Radio approval for: EU/RED; India
Weight [g]: 734,200
Communication interface: Ethernet
Storage temperature [°C]: -25...80
Power consumption [W]: 8.6
Protocol - Ethernet - Internet of Things: MQTT JSON
RFID-standard EPC Class1 GEN2/ISO 18000-63
IP 67 protection
Protection class III
Transmission power ERP [mW]: 120; (maximum: 200 )
Plug connection: Ethernet - pin layout: 0139 - connector: 2 x M12; code: D / power supply - pin layout: 0063 - connector: 1 x M12; code: A
Current consumption: 500
Current carrying capacity per output [mA]: 100; (max.)
Transfer rate – Ethernet – Internet of Things 10 Mbit/s; 100 Mbit/s.
Transfer standard - Ethernet - Internet of Things: 10Base-T; 100Base-TX
Type of use - Ethernet - Internet of Things: Data transfer; parameterization
