Name: ifm Electronic E11274 Cable connection M12 Plug, straight, Socket, right angle 2 m No. of pins (RJ): 4, 4 1 pc(s) Piece
Brand: ifm Electronic
SKU: 3316938

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

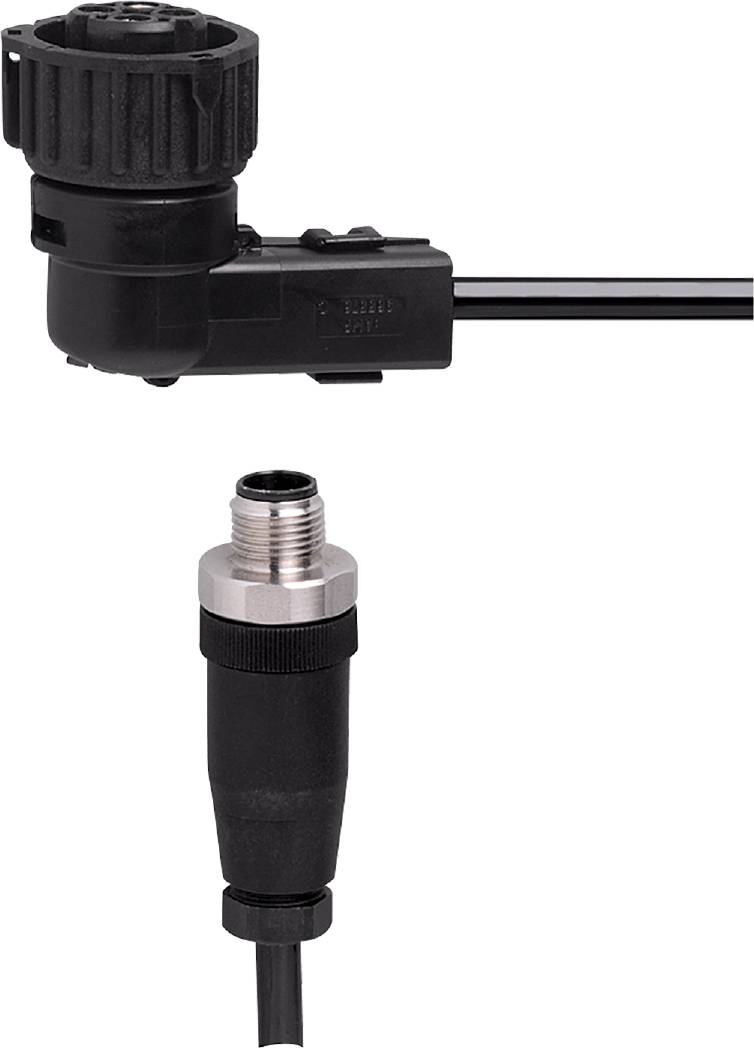

Two black connecting cables with different plug types, used for electrical connections.

Image similar

Product type

Cable connection

Connector type

Plug, straight

Socket, right angle

Connection side A

Bayonet

Connection side B

M12

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm E11274 connection cable

For the connection of sensors with bayonet connectors
For communication with programming devices
High protection class to meet the requirements of harsh industrial ambient
High operating temperature range

Technical specifications

Ambient temperature-1 [°C]: -40...85
Design: For communication with programming device PP2000
Special feature: Halogen-free
Operating voltage [V]: 9.6... 30 DC
Weight [g]: 131,000
Cable: 2 m, PUR, halogen-free, black, Ø 6 mm; 4 x 0.5 mm²
IP 67 protection; (connection cable with socket: IP 67 / IP 69K)
Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12, straight; coding: A; grip body: PA / socket - pin layout: 0033 - plug connection: 1 x bayonet, angled; grip body: Hytrel G-4774
Material grip body PA / Hytrel G-4774

Packaging type: Piece

Type: E11274

Product type: Cable connection

Connector type: Plug, straight
Socket, right angle

Connection side A: Bayonet

Connection side B: M12

No. of pins: 4
4

Cable length: 2 m

Jacket material: PUR

Nominal voltage: 30 V DC

Connector cross-section (max.): 0.5 mm²

Outside Ø: 6 mm

Cross-section (sensor/actuator wiring): 0.5 mm²

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

max. cross section: 0.5 mm²

Features: Halogen-free

Min. temperature: -40 °C

Max. temperature: 85 °C

Seal type: Bayonet

Manufacturer part #: E11274

Content: 1 pc(s)

Cable Ø: 6 mm

Cable Ø (max.): 6 mm

Cable Ø range: 6 mm (max)

UKCA: yes
