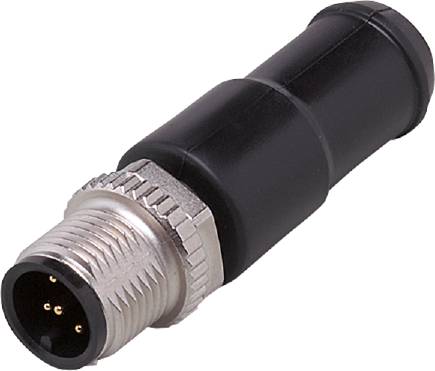

ifm Electronic E11590 Terminator connector M12 Plug, straight No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminator connector
Connector type
Plug, straight
Connection side A
M12
Connection side B
Terminator
No. of pins
5
Datasheet (PDF)
Highlights & Details
Ifm E11590 terminating resistor plug
- Reliable connection technology for CAN-bus subscribers
- High protection class to meet the requirements of harsh industrial ambient
- High operating temperature range
- Gold plated contacts for reliable electrical connections
Technical specifications
- Dimensions [mm] 14.5 x 14.5 x 48.5
- Ambient temperature-1 [°C]: -40...85
- Application: CAN-bus
- Special feature: Gold-plated contacts
- Weight [g]: 8,390
- Protection class:IP 68
- Plug connection: Plug - pin layout: 0063 - plug connection: 1 x M12, straight; coding: A; grip body: TPU; locking: Zinc die-cast, nickel-plated; contacts: gold-plated; tightening torque: ...0.6 Nm
- Material grip body: TPU
- Material swivel nut: Die-cast zinc, nickel-plated
- Type
E11590
- Product type
Terminator connector
- Connector type
Plug, straight
- Connection side A
M12
- Connection side B
Terminator
- No. of pins
5
- Jacket material
TPU
- Connection
Plug
- Thread type connection side
M12
- Coding
A
- Contact surface
Gold plated
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
E11590
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315786 ifm Electronic E11590 Terminator connector M12 Plug, straight No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315786 ifm Electronic E11590 Terminator connector M12 Plug, straight No. of pins (RJ): 5 1 pc(s)
Description
Ifm E11590 terminating resistor plug
